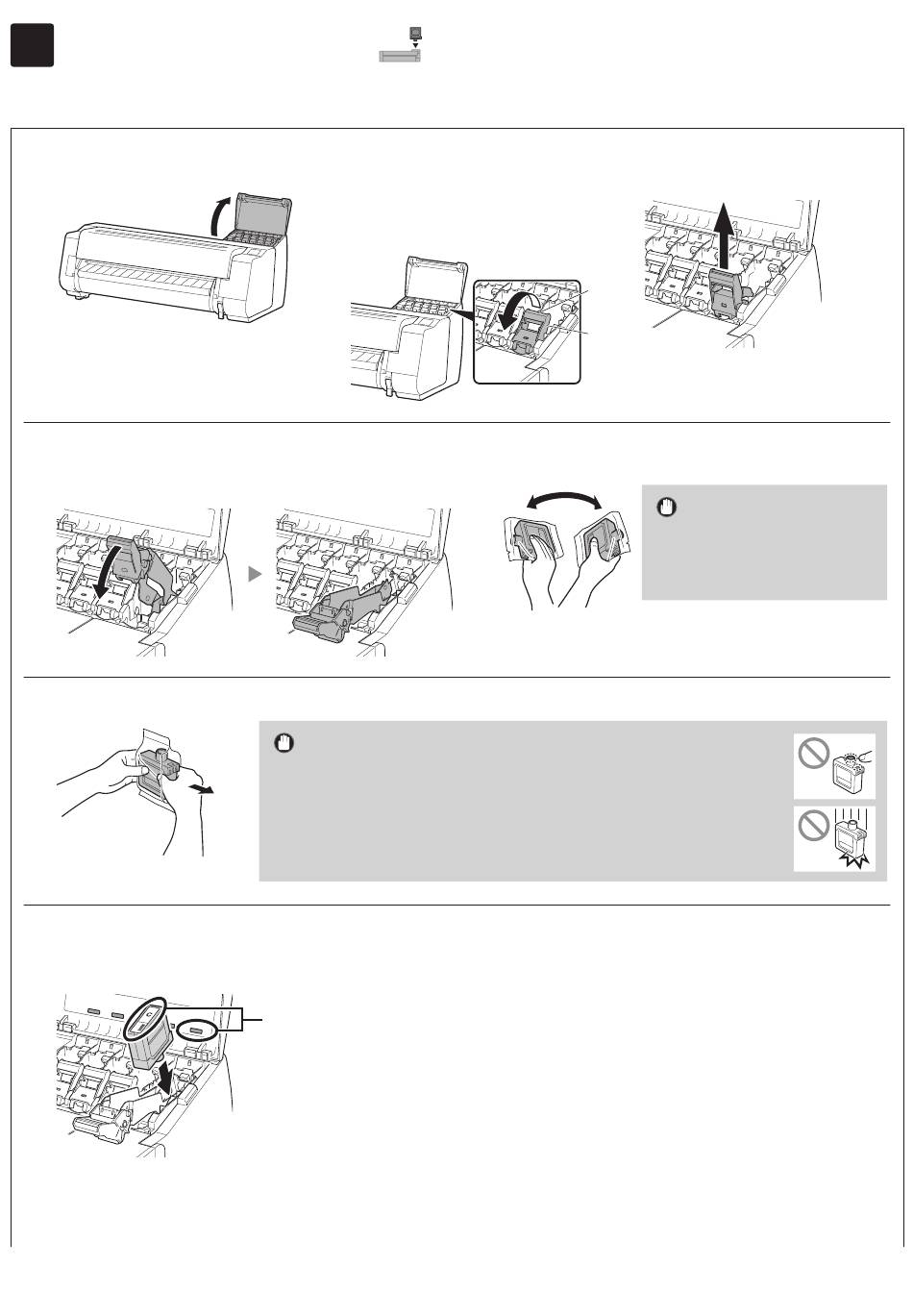

Installing the Ink Tanks

Instructions on ink tank installation are shown on the touch screen. Install the ink tanks as instructed. If the ink tank is cold, allow it to adjust to room temperature
before attaching it to the printer.
1
Open the ink tank cover.
4
Continue pulling until the entire ink tank lock lever is
tilted towards you.
●
Make sure the ink tank lever stays in this position.
6
Open the pouch and remove the ink tank.
7
Check that the color of the ink tank is the same as the color displayed on the label in the printer, and insert the ink tank into
the holder in the orientation shown in the diagram.
●
Insert with the ink tank label facing up and ensuring that the text on the label is not upside-down.
2
Release the ink tank lock lever of the
color you are installing.
●
While pressing the button at the
position (B), lift up the handle part (A)
towards you.
Important
● Never touch the ink holes or metal contacts (the area shown shaded in the diagram).
Touching these parts may cause stains, damage the ink tank, and affect print quality.
● Avoid dropping the ink tank after removing it from the pouch.
Otherwise, ink may leak and cause stains.
● Do not remove ink tanks to shake them after they have been mounted.
Doing so may cause ink to spill.
Match the color of the ink tank label
to the color of the label in the printer
3
B
A
5
Shake each ink tank gently 7 or 8 times before opening its
pouch.
6
With it in this state, pull the ink tank
lock lever up.
Important
● Failure to shake the ink tanks may
result in reduced print quality
because ink ingredients have settled
on the bottom of the tank.
