Brother Laser Printer HL-660 Series Quick Setup Guide
Read this guidebook first to set up your printer.
Action 1: Getting Started

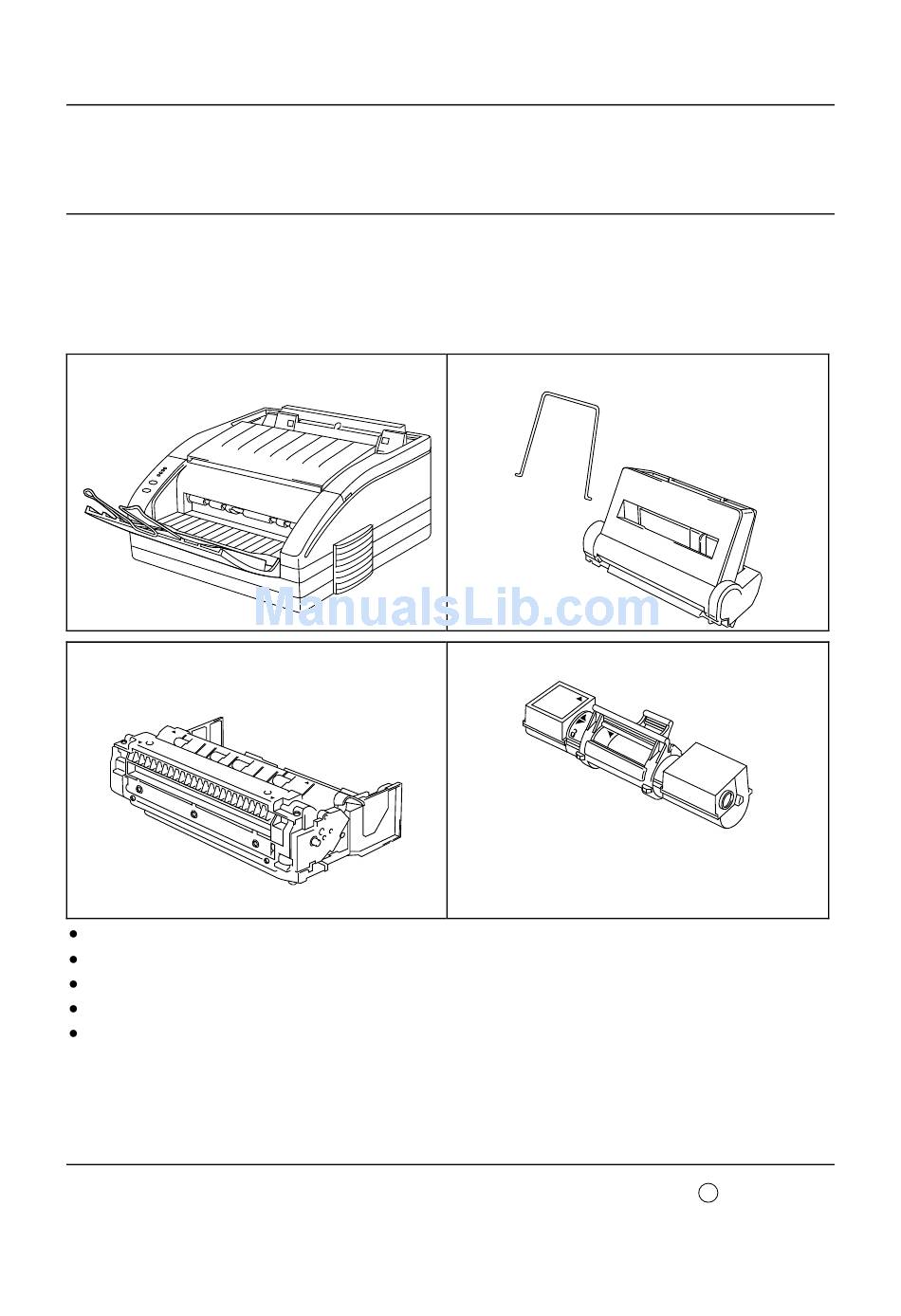

Check the Supplied Items
After taking the printer out of the carton and removing the packing materials, make sure that
the following items are not damaged and none are missing:
• Printer
• Drum unit
3.5" floppy disks for DOS/Windows
Software setup guide
Quick setup guide (this guidebook)
User's guide
Plastic Bag
NOTE
You will need to purchase an interface cable that matches the interface of your computer. If
you do not know what cable you need, consult your dealer or reseller.
The product names in this guidebook are trademarks or registered trademarks of each manufacturer. The specifications are subject to change without notice.
© 1994 Brother Industries, Ltd.
Japan
• Multi-purpose sheet feeder
• Starter Toner cartridge
NOTE: This is a starter toner cartridge
– expected yield 1,000 pages
TN-100 Replacement toner cartridge
– expected yield 3,000 pages
®
UL7075001 A Printed in
1
