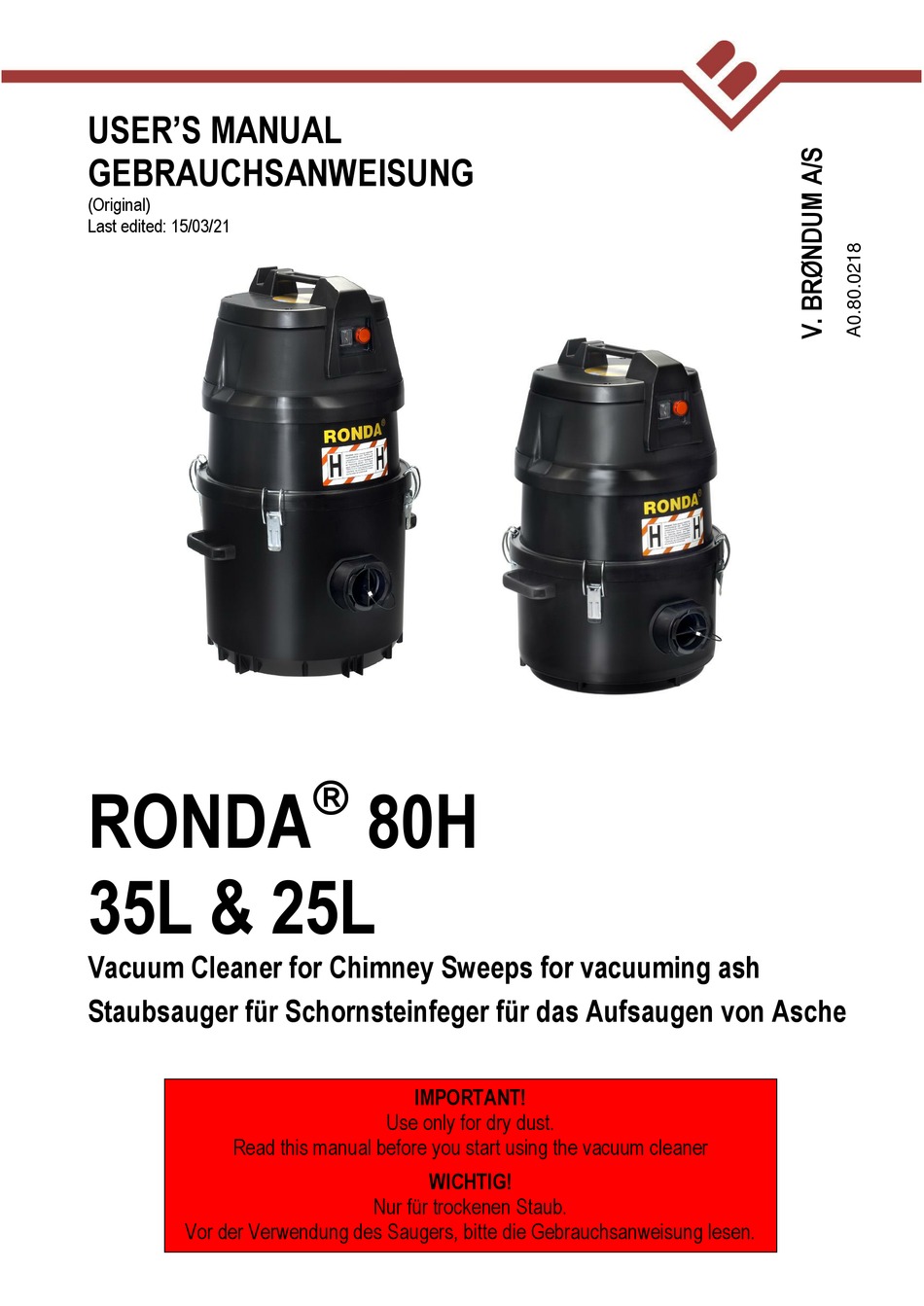

- Page 1 USER’S MANUAL GEBRAUCHSANWEISUNG (Original) Last edited: 15/03/21 RONDA 35L & 25L Vacuum Cleaner for Chimney Sweeps for vacuuming ash Staubsauger für Schornsteinfeger für das Aufsaugen von Asche IMPORTANT! Use only for dry dust. Read this manual before you start using the vacuum cleaner WICHTIG! Nur für trockenen Staub.
- Page 2 Manual RONDA V. BRØNDUM A/S ENG-2...
-
Page 3: Table Of Contents
Manual Table of Contens General Description ............................5 Safety ................................6 Guidelines Regarding the Disposal of the Machine ..................6 Technical Data ...............................7 Standard Accessories ............................8 Applications ..............................8 Description of the Main Parts .........................9 Motor Top with Suction Motor and HEPA filter ..................9 Motor Top with Alarm and Chock Valve ....................9 Collection Container and Collection Bag .................... - Page 4 Manual RONDA V. BRØNDUM A/S ENG-4...
-
Page 5: General Description
Manual Industrial vacuum cleaner for fine, health hazardous dust in connection with chimney sweeping and vacuuming of ash. General description Congratulations on your new RONDA 80H industrial vacuum cleaner from V. BRØNDUM A/S. Read this manual before you operate the machine. Keep the manual readily accessible to all users. -
Page 6: Safety
Manual Safety The user manual is to ensure a secure operation of the vacuum cleaner, and to secure that the user is in no way uncertain as to the use. The manual must be stored near the vacuum cleaner. Does any uncertainty arise as to the use of the vacuum cleaner or the material collected, the work should be stopped until all questions have been cleared. -
Page 7: Technical Data
Manual Technical data Make sure that the voltage and fuse of the power supply correspond with the information of the data plate of the RONDA 80H is connected to 230 V power supply. machine and the information of this manual. ... -
Page 8: Standard Accessories
Manual Standard Accessories RONDA 80H is delivered including a 3 meter flexible hose. Applications RONDA 80H is a vacuum cleaner in accordance with DS/EN 60335-2-2 and CEI/IEC 60335-2-69 Annex AA class H and may only be used as such. ... -
Page 9: Description Of The Main Parts
Manual Description of the Main Parts RONDA 80H is designed as a handy and compact industrial vacuum cleaner for collection of fine and health hazardous dust, soot and ash. Motor Top with Suction Motor and HEPA Filter The motor top is equipped with suction motor, an integrated handle, and switches for the suction motor. -
Page 10: Collection Container And Collection Bag
Manual Collection Container and Collection Bag Inside the collection container the collection bag is placed. The material is collected into the collection bag, which facilitates the emptying and disposal of the vacuumed material. When vacuuming very fine dust, it is not possible to fill the collection bag entirely. - Page 11 Manual IMPORTANT: When changing the collection bag, the hose must be removed before turning off the machine. So do not turn off the vacuum cleaner, until the hose has been removed. This is to avoid any remaining dust in the hose. The container is equipped with a plug/stopper for the coupling which is to be used during transport and whenever the machine is not operating.
-
Page 12: Mode Of Operation
Manual Mode of Operation When the suction motor of the machine is on, the air will be led through the machine and will collect the dust particles near the nozzle mounted. The dust particles will be sucked through the hose into the collection container, where the majority of the particles will be held back in the collection bag and/or the pre- filter. -
Page 13: Assembling
Manual Assembling Check that the packing is intact and has no sign of damage from handling and transport. Unpack RONDA 80H and check that all the parts ordered are there. Check that the collection container is empty and that the filters have been correctly mounted in the collection container. -
Page 14: Collection Of Dry Dust
Manual Collection of Dry Dust When the machine has been correctly assembled and connected, it can be switched on and off at the start/stop switch of the motor top. The machine has been equipped with a warning lamp indicating when the air flow is too low for collection. -
Page 15: Emptying
Manual Emptying With the RONDA 80H the vacuumed material must be collected in a collection bag. Loosen the four container clips attaching the motor top to the collection container and remove the motor top. Place the motor top on a dry and clean surface. ... -
Page 16: Cleaning And Maintenance
Manual Cleaning and Maintenance IMPORTANT! The machine must always be emptied after use. If the The machine must be disconnected machine is left with dust, there is a risk of self-ignition. from the power supply during service and cleaning. Read the chapter about safety precautions before cleaning and maintenance. -
Page 17: Changing Filters
Manual Changing Filters In General When replacing the filters, the necessary precautions to protect the environment and the respiratory passages of the operator must be taken. The nature and scope of these precautions must be based upon the type of tasks that the vacuum cleaner has been used for, and how harmful the dust on the surface of the filters is. - Page 18 Manual How to remove the HEPA filter: Remove the nut fastening the HEPA filter. Use a size 10 ring spanner. BE CAREFUL not to throw away the nut, washer and seal. These are to be used again. Pull a plastic bag (100 μm or the like) over the filter. Pull off the filter from the bracket so the O-ring and the base are released.
-
Page 19: Disposal Of Used Filters
Manual How to mount the new HEPA filter: Apply some moisture or lubricant to the O-ring before mounting. Push the filter down over the bracket until it is on the adapter ring, in one workflow. Do not pull the filter, as this will release the O-ring and locking ring from their position. -
Page 20: Troubleshooting
Manual Troubleshooting If the machine does not collect the material in a satisfactory way (alarm beeps): The suction hose, tube or nozzle may be blocked. Stop the machine, and remove the blocking. The collection container or the collection bag may be filled to overflowing. Stop the machine and empty the container. -
Page 21: Declaration Of Conformity
Manual DECLARATION OF CONFORMITY V. BRØNDUM A/S Sadolinsvej 14 DK – 8600 Silkeborg hereby declares that the following product: Electrically operated industrial vacuum cleaner, classified for dust class “H” . Model: RONDA has been designed and produced in conformity with the basic requirements and other relevant conditions of the following directives: Machine Directive (Directive 2006/42/EU) EMC-Directive (Directive 2014/30/EU) -
Page 22: Service And Repair
Manual Service and Repair Service and repair are provided free of charge within the guarantee period (invoice must be presented) provided that: The defect has been caused by a construction defect or defective materials. (Normal wear and tear, misuse or insufficient maintenance is not covered by the guarantee).
