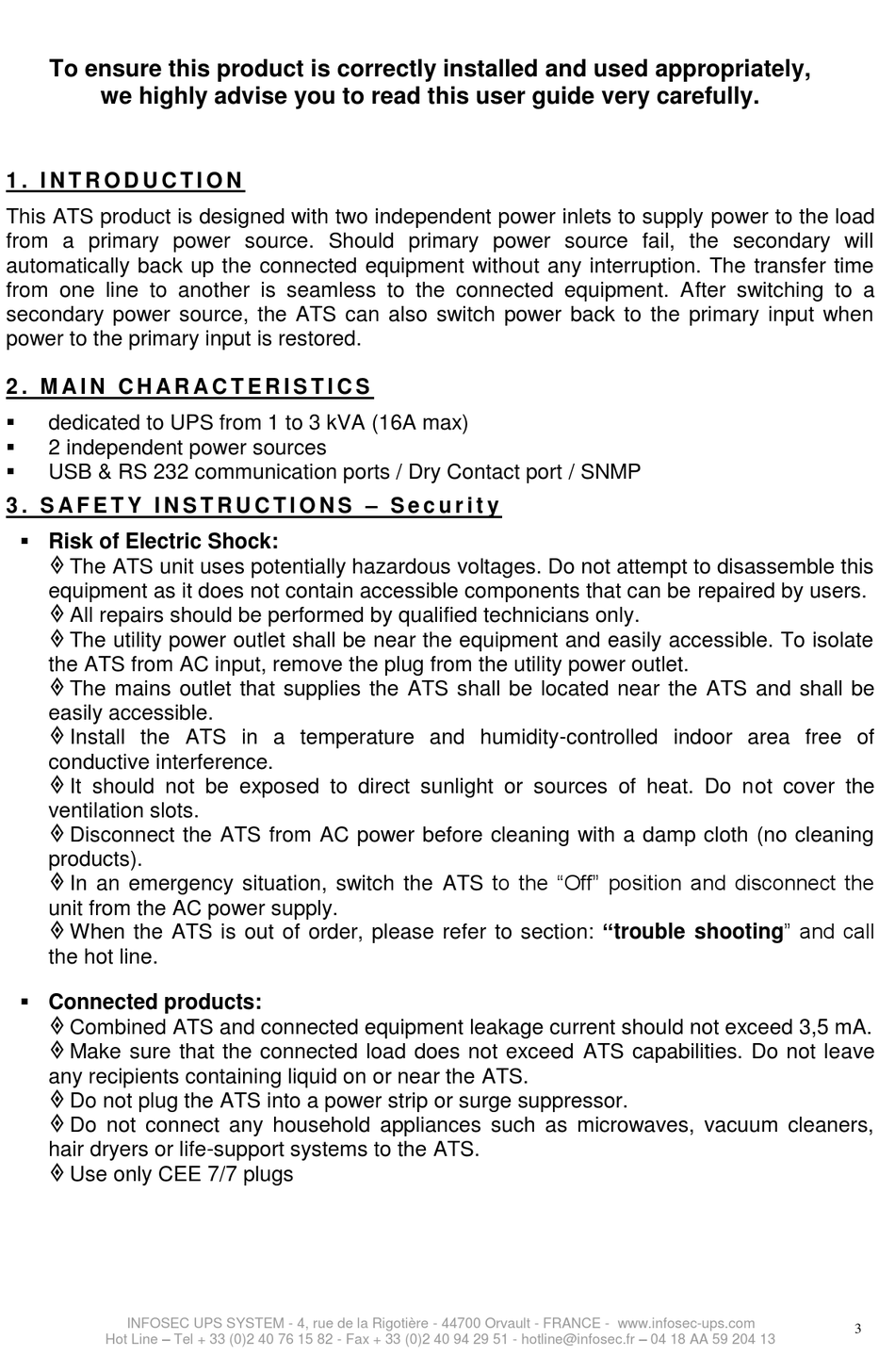

To ensure this product is correctly installed and used appropriately,
we highly advise you to read this user guide very carefully.
1 . I N T R O D U C T I O N
This ATS product is designed with two independent power inlets to supply power to the load
from a primary power source. Should primary power source fail, the secondary will
automatically back up the connected equipment without any interruption. The transfer time
from one line to another is seamless to the connected equipment. After switching to a
secondary power source, the ATS can also switch power back to the primary input when
power to the primary input is restored.
2 . M A I N C H A R A C T E R I S T I C S

dedicated to UPS from 1 to 3 kVA (16A max)

2 independent power sources

USB & RS 232 communication ports / Dry Contact port / SNMP
3 . S A F E T Y I N S T R U C T I O N S – S e c u r i t y
 Risk of Electric Shock:

The ATS unit uses potentially hazardous voltages. Do not attempt to disassemble this
equipment as it does not contain accessible components that can be repaired by users.

All repairs should be performed by qualified technicians only.

The utility power outlet shall be near the equipment and easily accessible. To isolate
the ATS from AC input, remove the plug from the utility power outlet.

The mains outlet that supplies the ATS shall be located near the ATS and shall be
easily accessible.

Install the ATS in a temperature and humidity-controlled indoor area free of
conductive interference.

It should not be exposed to direct sunlight or sources of heat. Do not cover the
ventilation slots.

Disconnect the ATS from AC power before cleaning with a damp cloth (no cleaning
products).

In an emergency situation, switch the ATS to the "Off" position and disconnect the
unit from the AC power supply.

When the ATS is out of order, please refer to section: "trouble shooting" and call
the hot line.
 Connected products:

Combined ATS and connected equipment leakage current should not exceed 3,5 mA.

Make sure that the connected load does not exceed ATS capabilities. Do not leave
any recipients containing liquid on or near the ATS.

Do not plug the ATS into a power strip or surge suppressor.

Do not connect any household appliances such as microwaves, vacuum cleaners,
hair dryers or life-support systems to the ATS.

Use only CEE 7/7 plugs
