INFOSEC UPS SYSTEM ATS User Manual page 11

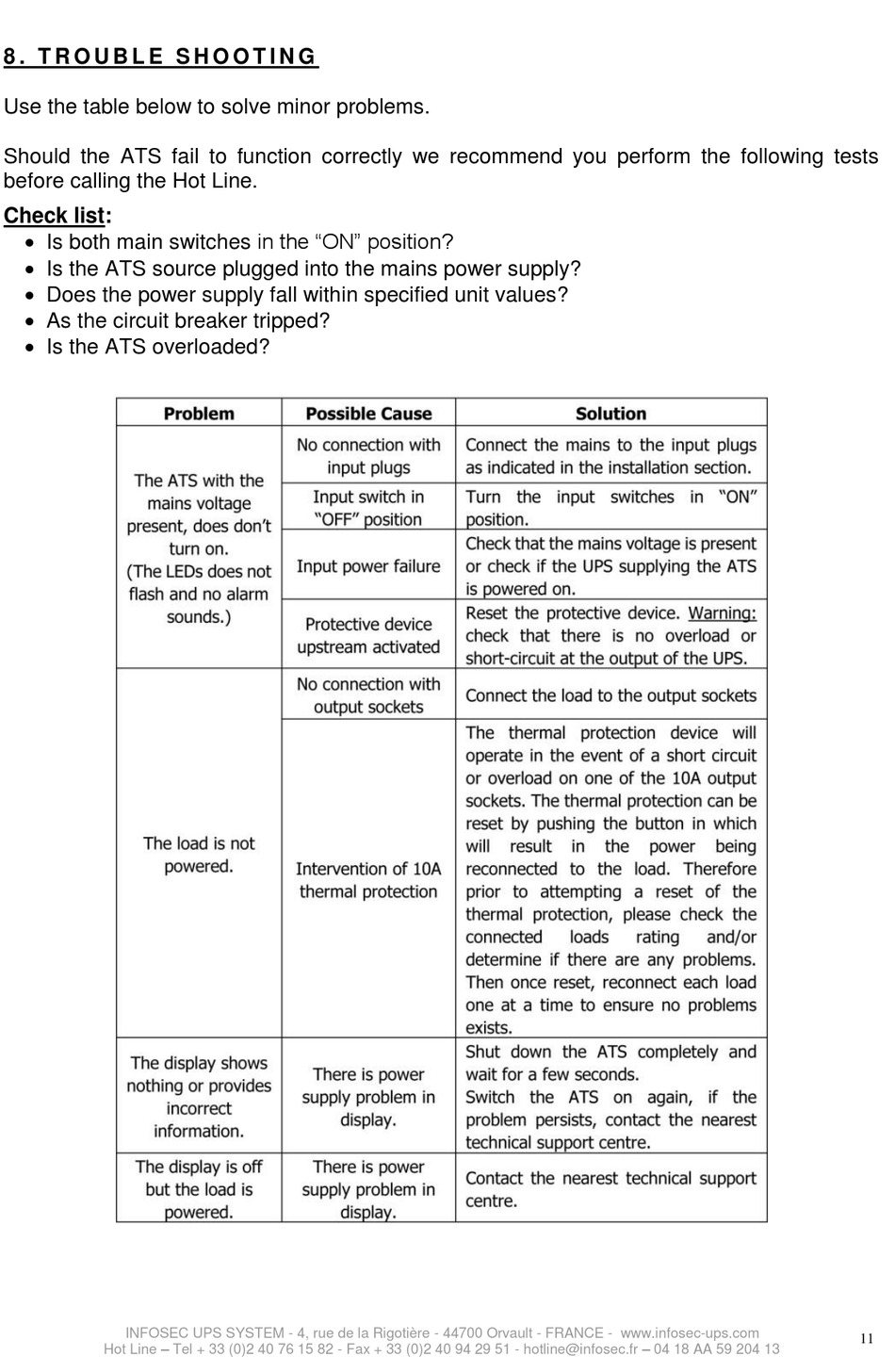

8 . T R O U B L E S H O O T I N G
Use the table below to solve minor problems.
Should the ATS fail to function correctly we recommend you perform the following tests
before calling the Hot Line.
Check list:
 Is both main switches in the "ON" position?
 Is the ATS source plugged into the mains power supply?
 Does the power supply fall within specified unit values?
 As the circuit breaker tripped?
 Is the ATS overloaded?
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 04 18 AA 59 204 13
11
