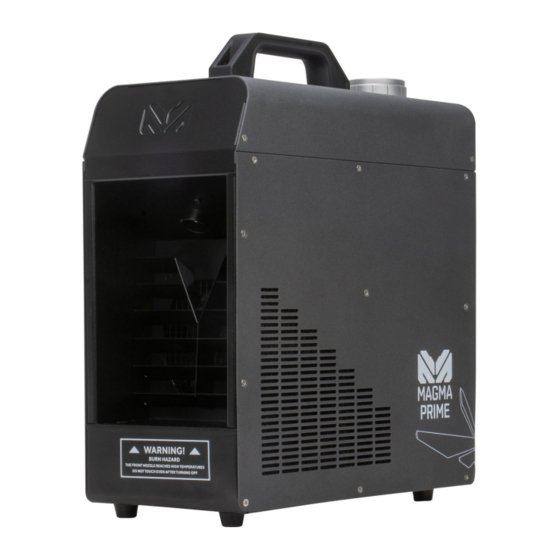

Summary of Contents for MAGMATIC Magma Prime
- Page 1 MAGMA PRIME User Manual US SKU#: MSP001 EU SKU#: 1412000001...
- Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Set Up Control Panel System Menu DMX Channel Functions & Values Dimensional Drawings | Trouble Shooting | Cleaning & Maintenance Specifications FCC Statement... -
Page 4: General Information
BOX CONTENTS Locking Power Cable CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or an MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. MAGMATIC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 8 SAFETY GUIDELINES IMPORTANT SAFETY INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE, AND SAVE THEM FOR FUTURE REFERENCE. CAUTION: • Risk of burn, fire, or electric shock. • For indoor use only. • Please read the instruction manual carefully before use. •...
-
Page 9: Overview
OVERVIEW 1. Output Nozzle 2. Fan 3. Carrying Handle 4. Fluid Reservoir Cap 5. Fluid Level 6. Touch Screen Display 7. Power Switch 8. Breaker 9. Locking Power Cable Input 10. Locking 5-Pin XLR Connector In 11. Locking 5-Pin XLR Connector Out 12. -
Page 10: Set Up
SET UP 1. Open the shipping carton and carefully remove the unit and all included items from the shipping carton. 2. Be sure to remove all the packing material especially around the nozzle. 3. Set the machine on a flat dry surface. Remove the fluid reservoir cap and carefully fill the fog fluid reservoir with Atmosity Extreme Filtered water based smoke &... -
Page 11: Control Panel
CONTROL PANEL This fixture includes a system menu with an easy to navigate touch screen control panel where all necessary settings and adjustments are made. When first powering on the fixture, the fixture’s main menu will be displayed (see Main Menu Screen below). Press the main menu icon you would like to access. -
Page 12: System Menu
SYSTEM MENU MENU SUBMENU OPTIONS DESCRIPTION 001 - XXX DMX Addr DMX Addressing DMX Channel Mode DMX Mode 1 / 3 / 5 Selection DMX SET Displays MagApp MagApp Name 0-XXXX network name MagApp Password 00000000 - 00009999 MagApp password 0-255.0~255.0~255.0~ MagApp IP dis- MagApp IP... - Page 13 SYSTEM MENU MENU SUBMENU OPTIONS DESCRIPTION Preset 1: • Duration = 40mins • Interval = 20mins • Fog = 100% • Fan = 100% Preset 2: • Duration = 25mins • Interval = 10mins • Fog = 100% • Fan = 100% Preset 3: •...
- Page 14 SYSTEM MENU MENU SUBMENU OPTIONS DESCRIPTION Current timer inter- Timer Int. XXXXs val setting Current timer dura- Timer Dur. XXXs tion setting Heating process Heat Proc. XXX% status Current fluid tank No Fluid Normal / Empty INFORMATION status Heater State Normal / Error / No Heat Heater status LCD Ver.
-
Page 15: Dmx Channel Functions & Values
DMX CHANNEL FUNCTIONS & VALUES CHANNEL DMX VALUES FUNCTION 1 CH 3 CH 5 CH Fog Output 000 - 005 006 - 255 Output Volume, 0% - 100% 000 - 255 Fan, 20% - 100% 000 - 255 Output Duration 000 - 005 No Duration 006 - 255... -
Page 16: Cleaning & Maintenance
Do not attempt to continue to operate as this may damage the machine. Check the fluid level, the breaker, and be sure the wall outlet is sending power. If all of the above appears to be okay, and the unit fails to operate correctly, the unit will require service. Please contact Magmatic Effects. -
Page 17: Specifications
SPECIFICATIONS PERFORMANCE: Rated Power: 700W Max Output: 4,000 CFM* (cu ft/min.) (113m3/min*) Ready Time: Intial = 6 Minutes* Fluid Capacity: 0.345 Gallons (1.3 Liters) Fluid Consumption: 0.115 oz/min (3.4 ml/min) COMPATIABLE FLUID: Atomosity Extreme Filtered Fog Fluid (AEF-4L) CONSTRUCTION: Thermally Protected Heat Exchanger Advanced HPA (High Pressure Air) Pump Technology Energy Saving Mode with Auto-Clean Process Sealed Fluid Resrvoir... -
Page 18: Fcc Statement
FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
