Summary of Contents for MAGMATIC MAGMA FOG 1500 IP

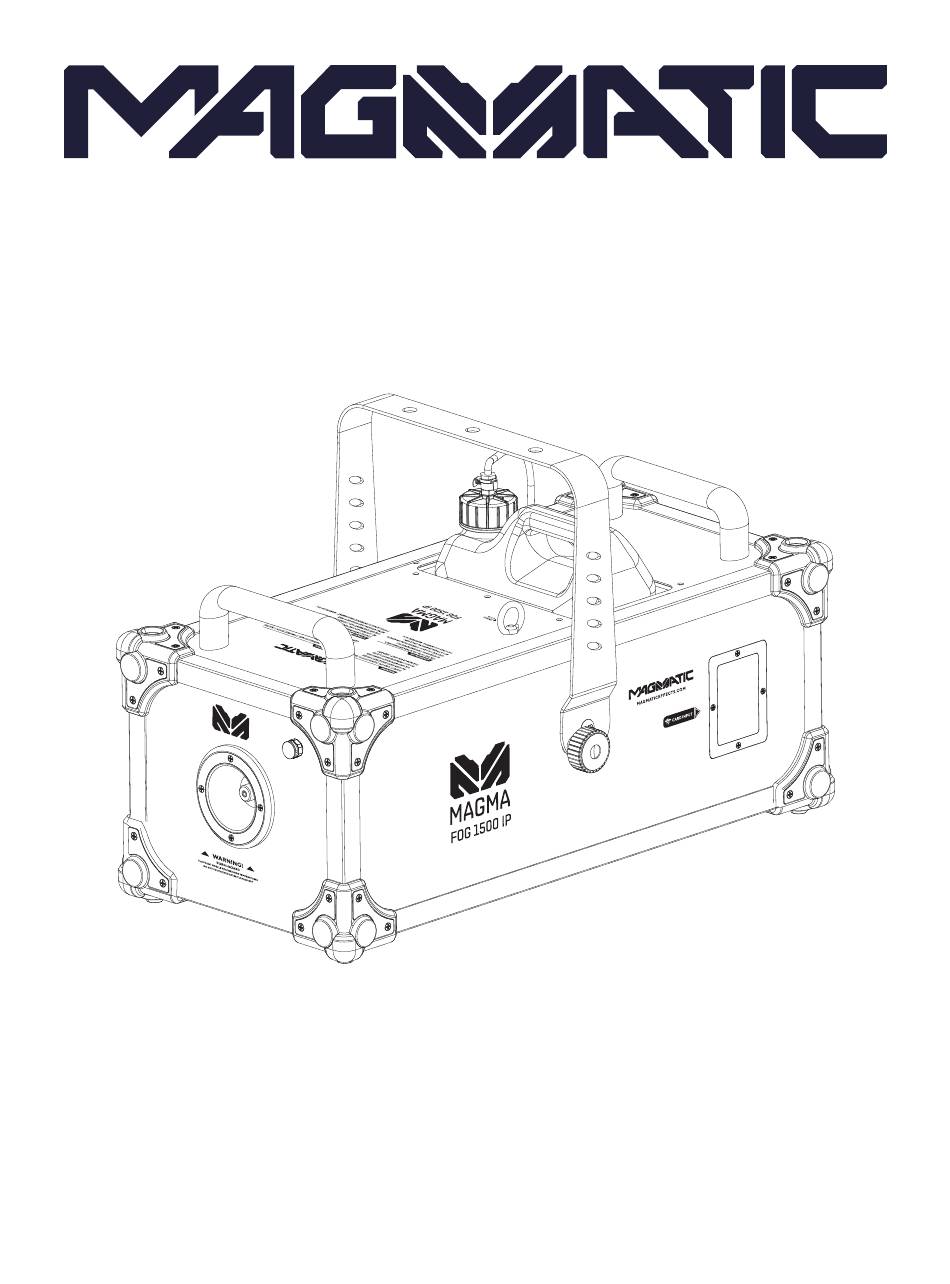

- Page 1 MAGMA FOG 1500 IP User Manual...
- Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Installation Optional Magfly Wireless Card Torque Setting Torque Scew Locations & Specs Setup Control Panel System Menu DMX Channels RDM Parameters Dimensional Drawing Trouble Shooting / Cleaning & Maintenance Specifications... -
Page 4: General Information
Please recycle whenever possible. BOX CONTENTS Power Cable (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the informa- tion printed in this manual. - Page 8 SAFETY GUIDELINES - CAUTION: Fog machines may set off smoke alarms! - Do not attempt installation and/or operation of this device without proper knowledge of how to do so. - Do not point or direct fog output in an unsafe direction. - Do not touch the front nozzle while the machine is in operation, or immediately after the device has been shut down, as the nozzle will be hot during operation.
-
Page 9: Overview
OVERVIEW Fluid Tank Hanging Bracket Carry Handle Carry Handle MagFly Input Cover Fog Outlet Air Valve Display Cover Bracket Knob Remote In DMX In/Out Safety Cable Touch Screen Display Power In Loop 20A Breaker... -
Page 10: Installation
INSTALLATION CLAMP INSTALLATION This unit features a mounting yoke with integrated clamp attachment points, as well as a safety cable loop located near the fluid tank (see the illustration below). When mounting this fixture to truss, be sure to secure appropriately rated clamps (not included) to the mounting yoke, and attach a separate SAFETY CABLE of the appropriate rating to the safety cable loop. -
Page 11: Optional Magfly Wireless Card
INSTALLATION OPTIONAL MAGFLY WIRELESS CARD The Magma Fog 1500 IP features 2 card slots for optional MagFly wireless receiving cards. These card slots are located behind the the MagFly input cover. For ordering information, see ACCESSORIES section on page 23. -
Page 12: Torque Setting
TORQUE SETTINGS TORQUE DRIVERS (Recommended): UTICA TS-30 (Shown) TORQUE DRIVER (Alternate): • Proto J6107A • Wiha 28887 CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTEGRITY AFTER DISASSEMBLY, TEST THE FIXTURE USING THE IP TESTER. CONTACT SERVICE SERVICE FOR MORE DETAILS. -
Page 13: Torque Scew Locations & Specs
TORQUE SCREW LOCATIONS & SPECS ALL SCREWS MUST BE TIGHTENED WITH A TORQUE DRIVER. Please refer to the drawing below for screw locations, quantity, and torque settings. 9.5±0.5 kgf·cm Screw 10pcs 9.5±0.5 kgf·cm Hexagonal steel column 4pcs 5.5±0.5 kgf·cm 5.5±0.5 kgf·cm Waterproof connector 3pcs Waterproof connector 9.5±0.5 kgf·cm... -
Page 14: Setup
4. Unscrew the tank cap and fill the reservoir with Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L). Never run the unit on anything other than approved, MAGMATIC branded fluid, as doing so can result in severe damage to your device. -
Page 15: Control Panel
CONTROL PANEL This fixture includes a system menu with an easy to navigate touch screen control panel where all necessary settings and adjustments are made. When first powering on the fixture, the fixture’s main menu will be displayed (see Main Menu Screen below). Press the main menu icon you would like to access. -
Page 16: System Menu
SYSTEM MENU DMX Addr 1 - 512 DMX Addressing 1-ch DMX SET DMX Channel Mode DMX Mode 2-ch Selection 4-ch Displays MagApp MagApp Name 0-XXXX Name MagApp 00000000 - MagApp Password Passcode 00009999 MagApp IP 0-255.0 Display IP Address MagApp Set MagApp Port 0-65535 Network Port... - Page 17 SYSTEM MENU Preset Setting 1 Preset 1: 10s Duration, Fog 100%, 4s Interval (not adjustable) Preset Setting 2 Preset 2: 30s Duration, Fog 80%, 10s Interval (not adjustable) Preset Setting 3 PRESET Preset 3: 60s Duration, Fog 60%, 30s Interval (not adjustable) Preset Setting 4 Preset 4: 150s Duration, Fog 40%, 120s Interval...
- Page 18 MESSAGE ICONS Icon Description Icon appears when MagFly module is connected. 4-bar symbol on the right indicates signal strength, with 0 bars being weakest and 4 bars being strongest. Icon appears when MagApp module is connected. 4-bar symbol on the right indicates signal strength, with 0 bars being weakest and 4 bars being strongest.
-
Page 19: Dmx Channels
DMX CHANNEL FUNCTIONS & VALUES MAGMATIC MAGMA FOG 1500 IP: DMX TRAITS 1-CH 2-CH 4-CH VALUES FUNCTION 000-005 006-255 VOLUME 0-255 1%-100% DURATION 000-005 006-255 1s-250s INTERVAL 000-005 006-255 10S-2500s... -
Page 20: Rdm Parameters
RDM PARAMETERS NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, and allows the DMX systems of the fixtures to be modified and monitored remotely. -
Page 21: Dimensional Drawing
DIMENSIONAL DRAWINGS 25.51in (648mm) -
Page 22: Trouble Shooting / Cleaning & Maintenance
3-4 months. Long periods of inactivity can severely shorten the life of your device. Only run Magmatic’s Atmosity Extreme Filtered fog fluid through your machine. Never run plain water, vinegar, or any other liquid solution through your device, as doing so will severely damage your device. -
Page 23: Specifications
SPECIFICATIONS PERFORMANCE Rated Power: 1500W Max Output: 60,000 CFM* (cu ft/min.) Ready Time: Initial = 14 Minutes* Fluid Capacity: 1.32 gallons (5 liters) Fluid Consumption: 6.76 oz/min (200 ml/min) *approximate COMPATIBLE FLUID Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L) CONSTRUCTION Thermally Protected Heat Exchanger Rugged Case Design... - Page 24 (page intentionally left blank)
