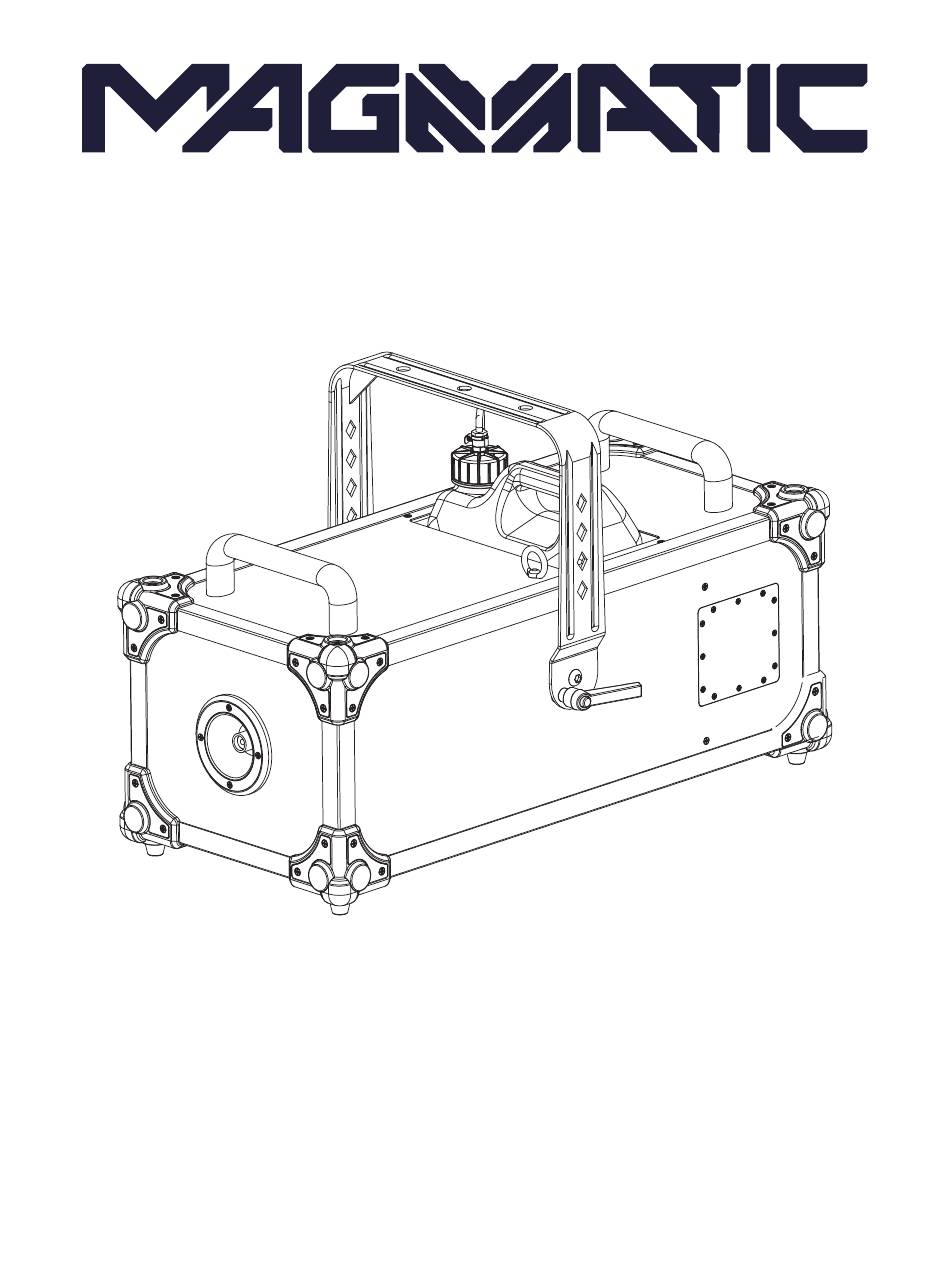

- Page 1 MAGMA FOG 1500IP-II User Manual...
- Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Warranty Returns (USA Only) IP67 Rated Safety Guidelines Overview Installation Instructions Accessory Installation Instructions Remote Device Management (RDM) Remote Control Setup Control Panel System Menu Message Icons DMX Traits Screw Torque Settings Trouble Shooting | Cleaning &... -
Page 4: General Information
Please recycle whenever possible. BOX CONTENTS Twist-Lock Power Cable (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provide ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Ip67 Rated
I P 6 7 R AT E D The International Protection (IP) rating system is commonly expressed as “IP” (Ingress Protection) followed by two numbers (i.e. IP67), where the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture, and the second digit (Water Protection) indicates the extent of protection against water entering the fixture. -
Page 8: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 9 S A F E T Y G U I D E L I N E S • CAUTION: Fog machines may set off smoke alarms! • Do not attempt installation and/or operation of this device without proper knowledge of how to do so. •...
-
Page 10: Overview
O V E R V I E W Fluid Reservoir Nozzle MagFly Safety Input Cable Mounting Cover Loop Bracket Control Panel Hatch Bracket Adjustment Knob No Fuse Breaker Power Input BOTTOM SIDE POWER INPUT NFB 20A 120V 60Hz 5P DMX IN 5P DMX OUT REMOTE IN Remote... -
Page 11: Installation Instructions
I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture a minimum of 5 feet (1.5 meters) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 I N S TA L L AT I O N I N S T R U C T I O N S CLAMP INSTALLATION This unit features a mounting yoke with integrated clamp attachment points, as well as a safety cable loop located near the fluid tank (see the illustration below).
-
Page 13: Accessory Installation Instructions
A C C E S S O R Y I N S TA L L AT I O N I N S T R U C T I O N S OPTIONAL MAGFLY WIRELESS CARD This device features 2 card slots for optional MagFly wireless receiver cards. These card slots are located behind the the MagFly input cover. -
Page 14: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 15: Remote Control
R E M O T E C O N T R O L This unit can be operated using the MagRemote VIDI remote control, which is a 4-pin, wired remote that can be used to control the volume, intensity, duration, and interval. Please note that the MagRe- mote VIDI is a universal remote, and some remote functions may not be applicable to all units. -
Page 16: Setup
Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L). Never run the unit on anything other than approved, MAGMATIC branded fluid, as doing so can result in severe damage to your device. 3. Screw the tank cap back onto the fluid tank. Be careful not to pinch, twist, or tangle the feed tube that is connected to the tank cap. -
Page 17: Control Panel
C O N T R O L PA N E L This device includes a system menu with an easy to navigate touch screen control panel where all necessary settings and adjustments can be made. When first powering on the device, the main menu will be displayed. -
Page 18: System Menu
S Y S T E M M E N U DMX address- DMX Addr 1 ~ 512 1-ch DMX SET DMX channel DMX Mode 2-ch mode selection 4-ch MagApp Displays MagApp 0~xxxxx Name name MagApp 00000000 - MagApp password Passcode 00009999 MagApp IP 0 - 255.0... - Page 19 S Y S T E M M E N U 1% - 100% MANUAL Manual control (output continuous below 20%) 1% - 100% Fog output (output continuous below 20%) TIMER Duration set- Duration 0s - 250s ting Interval 0s - 2500s Interval setting Preset setting 1 Preset 1: 10s duration, fog 100%, 4s interval...
- Page 20 S Y S T E M M E N U LCD_auto LCD_manual Current control Last Control MagApp status MagRF MagRemote Error MagRemote Remote control Yes / No State status Null Phone MagApp Wifi connection Connect status Route No / 0~255, 0~255, 0~255, Current Wifi IP MagApp IP 0~255...
-
Page 21: Message Icons
M E S S A G E I C O N S Icon Description Icon appears when MagFly module is connected. 4-bar symbol on the right indicates signal strength, with 0 bars being weakest and 4 bars being strongest. Icon appears when MagApp module is connected. 4-bar symbol on the right indicates signal strength, with 0 bars being weakest and 4 bars being strongest. -
Page 22: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 1-CH 2-CH 4-CH 000 - 005 006 - 255 000 - 255 Volume, 1% to 100% (output is continuous at 20% or less) Duration 000 - 005 006 - 255 1s - 250s Interval 000 - 005... -
Page 23: Screw Torque Settings
S C R E W T O R Q U E S E T T I N G S TORQUE DRIVERS (Recommended): UTICA TS-30 (Shown) TORQUE DRIVER (Alternate): • Proto J6107A • Wiha 28887 CAUTION! THE USE OF PROTECTIVE GLOVES AND SAFETY GOGGLES IS STRONGLY RECOMMENDED WHILE PERFORMING THE IP PRESSURE TEST! AVOID PLACING YOUR FACE, EYES, HANDS, ETC IN CLOSE PROXIMITY TO THE FIXTURE WHILE PERFORMING THIS TEST! - Page 24 S C R E W T O R Q U E S E T T I N G S ALL SCREWS MUST BE TIGHTENED WITH A TORQUE DRIVER. Please refer to the drawing be- low for screw locations, quantity, and torque settings. CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP67 INTEGRITY AFTER DISASSEMBLY, TEST THE FIXTURE USING THE IP TESTER.
-
Page 25: Trouble Shooting | Cleaning & Maintenance
3-4 months, as long periods of inactivity can severely shorten the life of your device. Only run Magmatic’s Atmosity Extreme Filtered fog fluid through your machine. Never run plain water, vinegar, or any other liquid... -
Page 26: Dimensional Drawings
D I M E N S I O N A L D R AW I N G S 648mm (25.5in) -
Page 27: Specifications
S P E C I F I C AT I O N S PERFORMANCE Rated Power: 1500W Max Output: 60,000 CFM* (cu ft/min.) Ready Time: Initial = 14 Minutes* Fluid Capacity: 1.32 gallons (5 liters) Fluid Consumption: 6.76 oz/min (200 ml/min) *approximate COMPATIBLE FLUID Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)
