Summary of Contents for Comrex BRIC-LINK II

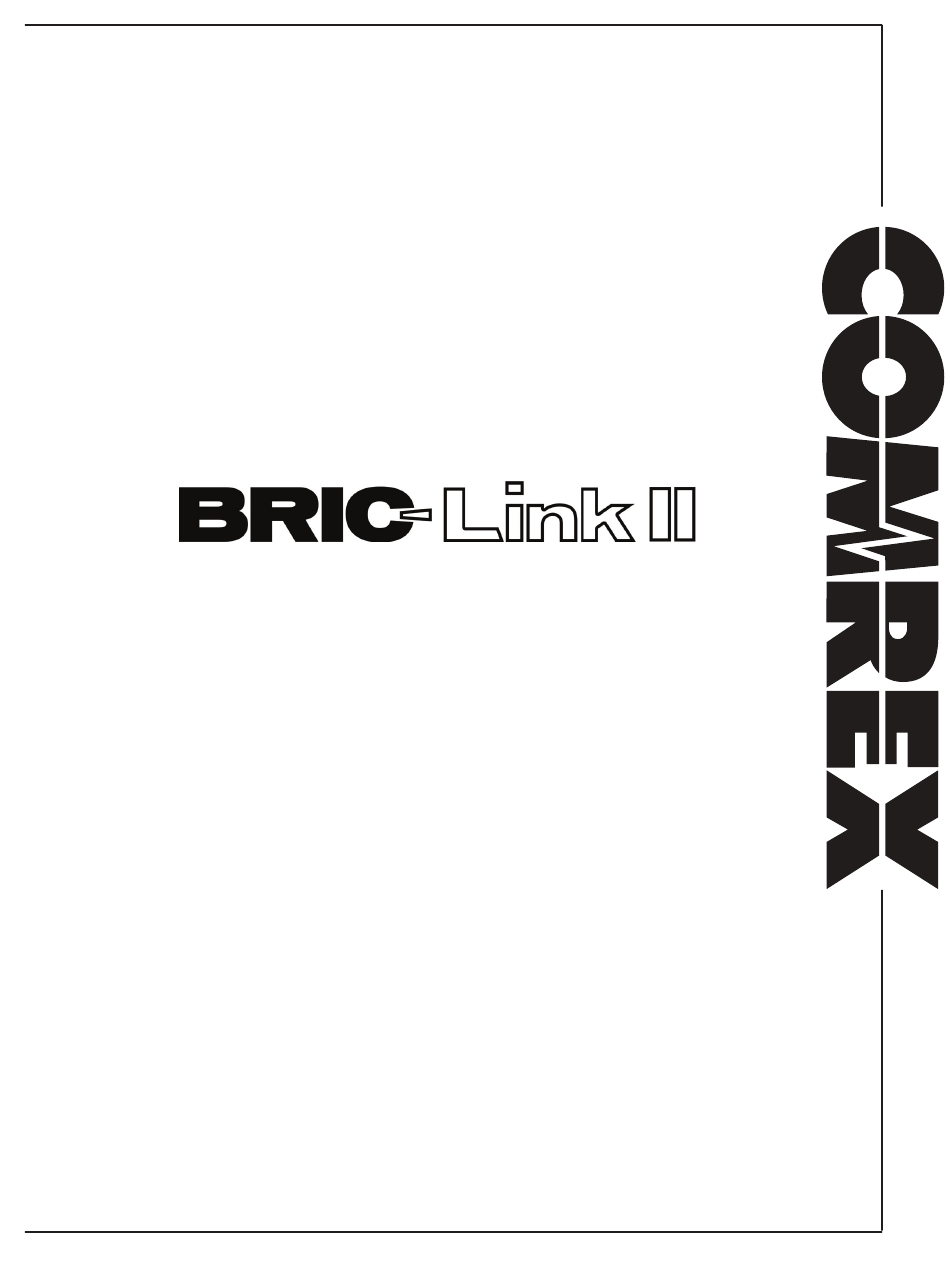

  • Page 1 Product Manual...
  • Page 2 BRIC-Link II • June 2021...

  • Page 9: About Comrex

    Each unit we ship has been individually and thoroughly tested. Comrex stands behind its products. We promise that if you call us for technical assistance, you will talk directly with someone who knows about the equipment and will do everything possible to help you.
  • Page 10 Comrex’s successful remote broadcast ACCESS product line, the BRIC-Link II provides for an elegant way of moving Linear or compressed audio with very low delay. BRIC-Link II may be used over a range of IP links, is very simple to use, and doesn’t require the expense of more full-featured codecs. While it carries an entry-level cost, BRIC-Link II maintains superb audio specifi...

  • Page 11: Switchboard Server

    Switchboard traversal server allows for monitoring presence and status informa on for all Comrex codecs in a user’s fl eet, and assists with connec ons through routers and fi rewalls that might be diffi cult otherwise. Note: BRIC-Link II requires the purchase of a Switchboard Traversal Server License for use with Switchboard.
  • Page 12 RS-232 - Provides serial data I/O across the IP link. Data rate is confi gurable. Power - 4-pin connector for a achment of Comrex approved DC power adapter. Requires 15 VDC @ 1 A. Card Slot - For future use.
  • Page 13 In mono mode, the audio is handled diff erently: Mono Inputs In mono encode modes, BRIC-Link II uses the le channel of the stereo input for delivery to the mono encoder. Mono Outputs...
  • Page 14 To use AES3, the front panel DIP switches must be set appropriately. AES3 input connec ons can be at 32, 44.1 or 48 kHz. On the BRIC-Link II, the output audio sample rate automa cally locks to the input sampling rate. If analog...

  • Page 15: Pinouts Serial Port

    PINOUTS CONTACT CLOSURES Contact closures are available via the 9-pin mini-DIN connector on the rear panel of the BRIC-Link II. Inputs are triggered by shor ng the respec ve input to Pin 9. Outputs consist of an open collector circuit which, when inac ve, will off...

  • Page 16: Dip Switch Settings

    DIP SWITCH SETTINGS BRIC-Link II has a set of eight DIP switches used for audio and indicator confi gura on. DIP Switch # Func on Default (Down) Analog/AES Input Select Analog Analog/AES Output Select Analog Audio Loopback* Disabled Level LEDs TX/RX Select...
  • Page 17 BRIC-Link II support page of the Comrex website. As shown in Figure 3, running the Device Manager and clicking the Scan for Devices bu on will produce a list of all Comrex IP codecs found on the LAN. Refer to page 20 for more informa on about Device Manager.

  • Page 18: Making Connections

    On the Web Interface, select the Connec ons Tab. As seen in Figure 5, this tab will populate with a list of available remote codecs to call. “Loopback” will connect BRIC-Link II to itself for diagnos c purposes. The next two default Connec ons will be “Comrex Lab Voice”...
  • Page 19 On the Web Interface, select the Connec ons Tab. As seen in Figure 6, this tab will populate with a list of available remote codecs to call. When the BRIC-Link II is “synced” with Switchboard, connec ons to other codecs in a user’s Switchboard account are simple.
  • Page 20 Firmware updates and installing licenses, such as a Switchboard Traversal Server License. Please note: In order to confi gure a BRIC-Link II unit for the fi rst me (without knowing the unit’s IP address), Device Manager must be run on a computer located on the same network (e.g. physical LAN connec on) as the unit itself.
  • Page 21 Generally, it is recommended to confi gure the Ethernet port of BRIC-Link II for a sta c IP. This will facilitate access to the Web-based Interface with a browser and allow for easier confi gura on of routers or fi rewalls (if necessary). If the BRIC-Link II is to be installed on a managed LAN, Comrex recommends consul ng with the IT services provider about obtaining a sta c IP address.
  • Page 22 (i.e., unable to log in). Device Manager has a network recovery tool to help with this: Network Recovery Mode. For security reasons, Network Recovery Mode is only available during the fi rst fi ve minutes a er a BRIC-Link II unit has (re)booted.
  • Page 23 Once the IP address is setup via the Device Manager, the rest of the setup and opera on of the BRIC-Link II is done via the Web User Interface. This process is addressed in the following sec on.
  • Page 24 LOGIN A er using Device Manager to fi nd or set BRIC-Link II’s IP address, begin confi gura on by opening a web browser and entering that IP address into the URL fi eld. Upon connec on to BRIC-Link II, a login screen will appear (Figure 12).

  • Page 25: Connections Tab

    By default, three factory remotes appear on the list. These remotes are used for troubleshoo ng connec vity: 1. Loopback: Allows for tes ng of localhost. BRIC-Link II will make an ac ve connec on to itself (input audio will be encoded then decoded and output from the same unit). This verifi es proper func onality of the BRIC-Link II, as well as the chosen audio profi...

  • Page 26: Dashboard Tab

    DASHBOARD TAB The Dashboard Tab is designed to be open during ac ve connec ons. As seen in Figure 16, it provides a quick view of some vital parameters. 1. The audio level meters give a quick indica on of send and receive levels. 2.

  • Page 27: Performance Tab

    PERFORMANCE TAB The Performance Tab includes informa on on data transmission and recep on rates from BRIC-Link II to ac ve remote connec ons. This allows for real- me monitoring of network quality during connec ons. Several headers are listed on this page and will drop down more informa on when clicked.
  • Page 28 CODEC CHANNEL FIELD Clicking on the “Codec Channel” header delivers informa on on the BRIC-Link II’s total receive rate and transmit rate (Figure 19), including informa on for mul ple connec ons when applicable. When mul ple transmit connec ons are ac ve, this will show an aggregate rate of all outgoing connec ons.
  • Page 29 UTILIZATION GRAPH The U liza on Graph (seen in Figure 21) indicates the incoming and outgoing u liza on of the network. The bars indicate the average data rate used by the system during each one-second window. It is possible that the size of these bars will vary because CrossLock (in some modes) has control over data rate through a technique called “thro ling”.
  • Page 30 For most CrossLock connec ons, the sliders should be le at their default Automa c Delay Mode se ngs. However, during connec ons on unusual networks, these sliders are available to quickly adjust the current delay se ngs. The most powerful way to stabilize any streaming connec on is to have the decoder add a delay buff er to the connec on.

  • Page 31: Profile Manager Tab

    BRIC-Link II. It is o en unnecessary to create any new profi les since BRIC-Link II ships with a set of factory default profi les that cover most users.
  • Page 32 Next is the Channel op on, which allows for selec ng between a standard Comrex IP connec on (BRIC Normal) or one of the other connec on modes off ered by BRIC-Link II. Note that when using the CrossLock reliability layer, BRIC Normal mode is chosen here, as this is the protocol that runs with the CrossLock VPN.

  • Page 33: Local & Remote Settings

    Encoder - Using this menu, users can select the encoder (or “algorithm”) used to send audio from this BRIC-Link II (under Local Se ngs) as well as the encoder used to send audio to this BRIC-Link II (under Remote Se ngs). The default value of the remote encoder is to follow the local encoder (i.e., it will send audio using exactly the same...
  • Page 34 For usage, it should always remain “on”. CrossLock Managed Delay - There are two ways BRIC-Link II can calculate its target delay, and therefore, how much decoder buff er to add. The fi rst is the BRIC-Normal way, and is the default for non-CrossLock connec ons.
  • Page 35 CrossLock connec ons, the buff er is increased to allow the use of error correc on, so the buff er is thus based on a combina on of the ji er histogram, and the round-trip-delay as calculated by the system. This will generally result in bigger decode buff...

  • Page 36: Security Settings

    Note: Users should take note of any updated password, as a forgo en password may require a “factory reset” for users to regain access to BRIC-Link II (see page 16 for details on how to reset BRIC-Link II to factory default, or contact Comrex Tech Support for assistance.)

  • Page 37: System Clock

    NTP Enabled - Enables the use of NTP network me synchroniza on. This se ng is set to Yes by default. NTP Server - This allows users to set the address of the NTP server. This is set for 0.comrex.pool.ntp.org by default.

  • Page 38: Advanced System Settings

    Flow Control - Allows for selec on of the fl ow control method. Default is set to None with op ons for HW (RTS/ CTS) and SW (XON/XOFF). This has no func onal eff ect on BRIC-Link II. Parity - Users can select parity protec on with this se ng. Default is set to None with the addi onal op ons for Odd or Even.

  • Page 39: Bric Normal Settings

    fi eld must dial specifi cally to the new port number in order to connect to the BRIC-Link II. An outgoing call must be made to a specifi c port number in the form of IP-ADDRESS:PORT#.
  • Page 40 Public IP Override - Enable this in an environment where ports have been forwarded through a router to the BRIC-Link II. SIP protocol assumes no ports are forwarded and may have trouble connec ng if this func on is not enabled.

  • Page 41: Tcp Settings

    Outgoing calls are defi ned as TCP when their profi le is confi gured. BRIC-Link II normally listens for incoming calls on both TCP and UDP ports, and chooses the fi rst to arrive. If a TCP call is detected, BRIC-Link II will a empt to use the same TCP link to transmit in the reverse direc on.

  • Page 42: Network Manager

    BRIC-Link II. The primary Ethernet port for BRIC-Link II is confi gured for DHCP by default. In this confi gura on, BRIC-Link II will be assigned an IP address from a pool of available IP addresses from the network router upon boo ng. If BRIC-Link II is connected to the Internet, it should display connec on informa on for the Ethernet Port, including IP and DNS server addresses.

  • Page 43: Using A Static Ip Address

    DHCP opera on works well for individual connec ons, but may lack the consistency required for more prolonged use in a given loca on. Se ng a Sta c IP Address will allow BRIC-Link II to keep the same IP confi gura on every me it makes or receives a connec on.
  • Page 44 For example, when opera ng in a new studio in New York City, a user can create a Loca on called “New York” and apply the necessary IP se ngs for just that studio; then BRIC-Link II can be brought back to its own studio in Paris and simply change the Ac ve Network Loca on back to one called “Paris”.
  • Page 45 3G/4G CONNECTIONS BRIC-Link II allows the limited use of 4G Mobile data connec ons by u lizing the HotSwap feature with a Comrex Connect Modem. 3G connec on is also possible on certain carriers. The use of 4G modems as a primary network is not supported on BRIC-Link II.
  • Page 46 Preserve A er Reset - This op on ensures that changes to the unit’s network confi gura on will be preserved even if the device is reset to factory defaults. This se ng is disabled by default, and Comrex advises users to be cau ous when enabling it.
  • Page 47 CrossLock works, it’s helpful to fi rst focus on non-CrossLock connec ons (as shown in Figure 32). Without CrossLock ac ve, a codec will make BRIC Normal connec ons to BRIC-Link II on port 9000. Audio and connec on data are then sent over this single network port across the public internet, to be decoded on the far end.
  • Page 48 Ethernet MAC followed by a “-x” suffi x (e.g., 00:01:A2:3B:4C:55-4 for instance #4). CREATING NEW CROSSLOCK REMOTES Login to BRIC-Link II’s Web User Interface and open the Connec ons Tab (this page loads fi rst by default, as seen in Figure 34).
  • Page 49 The Backup Remote feature works in conjunc on with a remote entry’s Local Timeout parameters, which are defi ned by the chosen audio Profi le. BRIC-Link II can sense an IP Connec on failure, and will wait for a me designated by the Local Timeout parameter.
  • Page 50 Fall Forward func on reestablishes connec on to the Primary Remote. Fall Forward - If the primary remote is restored while a backup remote connec on is ac ve, BRIC-Link II will detect a valid signal indica ng that the primary remote is once again available. When Fall Forward is enabled, it will automa cally disconnect the backup and revert back to the primary remote.

  • Page 51: Connecting And Disconnecting

    SPECIAL NOTES FOR CROSSLOCK CONNECTIONS MULTIPLE NETWORK SETUP For added reliability, mul ple networks may be a ached to BRIC-Link II and used together during a CrossLock connec on. A second Ethernet cable can be added using a USB-to-Ethernet adapter. When two Ethernet cables are detected, both networks will be added to the CrossLock VPN and used for media transfer (unless specifi...
  • Page 52 II codecs sharing a single IP address), then the process for making manual CrossLock connec ons becomes more complex. For more informa on on these se ngs, refer to the Technote “Using Mul ple Comrex Codecs Behind A Single IP Address” on www.comrex.com.
  • Page 53 “set it and forget it” usability. Although it is not enabled by default, BRIC-Link II can be ac vated for use on Switchboard through the purchase of a Switchboard Traversal Server License.
  • Page 54 ( ) next to each Switchboard peer indicates the availability of connec on to that unit. BRIC-Link II can connect to any peer with a green gear next to its name. A red gear signifi es that the unit is offl ine, whereas a yellow gear signifi es that it is currently busy with another connec on.
  • Page 55 Contact Lists. However, this changes the way codec users will interact with Switchbaord. To understand the diff erence, fi rst see the BRIC-Link II’s Web User Interface as it appears when only one Contact List is...
  • Page 56 The Connec ons Tab will usually show any units that are on a followed Contact List, with a color-coded “Gear” icon indica ng the unit’s connec vity status. When mul ple Contact Lists are followed, the Connec ons Tab will instead show each Contact List, with a “Folder”...
  • Page 57 Note: While units can follow mul ple Contact Lists that contain the same peer, a peer will only appear in one Contact List, to prevent “duplicate entries”. If the “Auto Default List” is used as Master List containing all units on an account, that List will now only show peers not already available in another Contact List.
  • Page 58 SETTING UP A SWITCHBOARD ACCOUNT The Switchboard Traversal Server is a service built and maintained by Comrex on the public Internet that facilitates connec ons between audio codecs by allowing them to share network and status informa on across a fl eet of other codecs.

  • Page 59: Adding Units

    (use the “Auto Default List”). A er choosing Contact Lists, click “Finish BRIC-Link II Setup”, and the unit will be added to the list on the Audio Codecs Tab, among other units on the account, if any (as shown in Figure 48). More detailed informa on for each...
  • Page 60 CONTACT LISTS TAB The Contact Lists Tab displays the “Contact Lists” available on the account (as shown in Figure 49), and allows new Contact Lists to be added. Contact Lists are like phonebooks; each codec can be added to a List (or several Lists), and each codec can choose which List (or Lists) to use when “calling”...

  • Page 61: Sharing Tab

    ADDING CONTACT LISTS Clicking “Add New Contact List” brings up a dialogue box that will ask for a List Name and a selec on of codecs to be included in the List (as seen in Figure 50). All of the available codecs on an account are listed to choose from. Clicking any of the codecs adds a “check” mark and includes that codec in the new List.

  • Page 62: Creating Shares

    Shares created locally are shown in the “Shares owned by this Account” sec on, and display a list of Units in the Share along with the name of the account that is being given access to these units. Users can modify the Share using the bu ons on the right side of the screen.

  • Page 63: Users Tab

    Click the name of the Share on the list to add a “check” mark, similar to selec ng units. Once the Share is “checked” all units within that Share will be visible to any codecs that are following the “Auto Default List”. They can now be connected as if they were on the same account.

  • Page 64: Switchboard Theory And Concepts

    Enter a unique Username and a secure Password for the new User (this will be the user’s login creden als). Then enter the User’s Full Name and a contact Email address. A Phone number is op onal, but can assist in communica on among Switchboard users.
  • Page 65 Similar to a DNS, this Directory Server func on stores real IP addresses and translates them into user-friendly names, but on a much smaller scale that is only relevant to Comrex codecs. Codec users can name their codecs and use those names to establish connec ons, rather than using IP addresses. The codecs themselves need only know...
  • Page 66 Because Switchboard stays on a fi xed IP address which is programmed into all Comrex codecs, this works naturally and easily. Once enabled, a codec in a group that is physically connected to the Internet will sync with the server. The server recognizes the sync a empt by the unique Media Access Control (MAC) address of the device reaching out to it (which the server knows from an internal database).
  • Page 67 This can work well for fi xed installa ons, but it’s not always an easy task to obtain that kind of security access on corporate routers. Addi onally, forwarding func ons are implemented diff erently depending on the hardware. One can easily imagine the complica ons of obtaining or managing port forwarding on the LAN when arriving at a new remote venue.
  • Page 68 Overall, Switchboard takes the complexity of interac ons between public and private internet and translates the user experience into a simple point-and-click methodology, giving Comrex codec users more freedom with less eff ort.
  • Page 69 HOW BRIC NORMAL CONNECTIONS WORK In BRIC Normal mode (the default mode of opera on), BRIC-Link II transfers all its audio data via the UDP 9000 protocol. This is in contrast to most web-based connec ons like browsing and email, which use the bidirec onal TCP protocol.
  • Page 70 Select the drop down menu, currently set to “(None)”, to display a list of available remotes. Selec ng any exis ng remote will set BRIC-Link II to maintain constant connec on to that remote whenever possible (Figure 60). A er selec ng a remote, click the “Apply Changes” bu on to save changes and ini ate the “24/7” connec on. As a system-wide se ng, Always Connect To does not require addi onal confi...
  • Page 71 Select the drop down menu, currently set to “(None)”, to display a list of available op ons. These op ons will determine what BRIC-Link II does in the event of a connec on meout. Select a backup op on from the list, and click “Apply Changes”...
  • Page 72 As an example, a BRIC-Link II can be set to Always Connect To a codec at a transmi er site, with a Backup remote set in case the primary remote loses power. If lightning strikes and the primary remote goes offl ine, BRIC-Link II will keep trying to connect to the primary remote for the default 60 seconds before moving the connec on over to the backup remote.
  • Page 73 Select the exis ng values for Local Timeout and Remote Timeout to input new values. Be sure to click “Apply Changes” a er each value is input. For most usage, the Local and Remote meout values should be the same. If incoming data and outgoing data are expected to diff...

  • Page 74: Data Usage

    4G connec on is supported on BRIC-Link II as the secondary, backup network only, and only when using a Comrex Connect Modem. BRIC-Link II does not support the use of other 4G or 3G modems.
  • Page 75 SETUP Setup for HotSwap is done en rely on the end of the link that has dual networks connected. On the BRIC-Link II, a second network can be added in one of two ways: 1. A second Ethernet connec on, using a USB-to-Ethernet adapter, 2.
  • Page 76 CONFIGURING CONTACT CLOSURES FOR HOTSWAP When HotSwap is enabled and the Primary Network fails, BRIC-Link II can send a contact closure signal to indicate the failed network state. The contact closure will ac vate when the Backup Network is in use, and can be confi...
  • Page 77 Note: HotSwap CC Indicator assignments will override any previous contact closure assignments made in the system se ngs. Next, select the “HotSwap CC Unit” op on, as shown in Figure 68. Choose which end (or ends) of the link should receive the contact closure signal when the Backup Network is in use, and click “Apply Changes”.

  • Page 78: About The Algorithms

    XII. When building profi les for BRIC-Link II and remote devices, there are several diff erent audio encoder op ons to use for each direc on of the link. Diff erent audio encoder op ons each have advantages and disadvantages depending on the situa on.
  • Page 79 Special CBR modes are off ered for compa bility with Tieline products—avoid these in other applica ons. Due to its versa lity in audio quality and low networking drain, Opus is the default profi le for Comrex codecs. *Linear PCM and FLAC are only supported for CrossLock connec ons on devices running fi rmware version...
  • Page 80 Algorithm Comparison Chart for BRIC-Link Codecs Required Coding Audio Bitrate Delay Bandwidth 64 kb/s 20 kHz D1 Mono 96 kb/s 20 kHz D2 Stereo 128 kb/s 20 kHz D3 Dual Mono 128 kb/s 20 kHz D4 Stereo 128Kb 256 kb/s 20 kHz D5 Dual Mono 256Kb 56 kb/s...
  • Page 81 IP Mul cast, which is described in the next sec on. Each BRIC-Link II can also only run one decoder, so it’s important that in a Mul stream environment, a maximum of one stream is sent in the reverse direc on. This means that users interested in hearing a Mul stream must turn off...
  • Page 82 In the “Mul streamer as caller” model, two diff erent profi les will be used on Codec A (the mul streamer). The fi rst profi le will be defi ned as a standard, Duplex BRIC-Link II connec on. A factory profi le can be used for this. The encoder to be used will be selected in the Local Encoder sec on (with Transmit “On”), and the stream desired in...

  • Page 83: Multicast Profiles

    MULTICAST PROFILES To confi gure BRIC-Link II for Mul cast, a custom Audio Profi le must be created in the Profi le Manager Tab for either a Mul cast Sender or a Mul cast Receiver. As shown in Figure 72, when defi ning a new profi le there is the op on to choose a Channel for the audio stream.

  • Page 84: Setting Up A Multicast Remote

    Time-to-Live (TTL) is a variable set by Mul cast encoders to determine how long a packet is processed before it is dropped by the network. The default value of TTL in BRIC-Link II is 0, which limits its use to within a LAN environment.

  • Page 85: Streaming Server Function

    STREAMING SERVER FUNCTION BRIC-Link II has the ability to act as a streaming server, delivering AAC and HE-AAC to compa ble PC-based media players. Currently tested media players include WinAmp, VLC and Windows Media Player version 12 or higher. As a streaming server, BRIC-Link II takes a passive role, allowing media players to “pull” the audio stream spontaneously.
  • Page 86 DECODING A STREAM To pull audio from a streaming BRIC-Link II, open one of the supported media players and select the op on to open a URL-based stream. In Winamp and VLC, input the IP address of the BRIC-Link II in the format of the following example: h p://192.168.0.75:8000...

  • Page 87: Ebu3326/Sip Modes

    Onsip.com. The BRIC-Link II allows EBU3326/SIP calls to be placed or received with or without registra on on a SIP server. If registra on is not enabled, connec ons are made directly to the compa ble device by dialing its IP address, just like in BRIC Normal mode.

  • Page 88: Unregistered Mode

    Iptel registered codec, the dialing string can simply be comrex_user (with the domain being assumed). REGISTERING WITH A SERVER At a minimum, you will need the following informa on when registering BRIC-Link II with a SIP server: • The Internet address of your SIP proxy/server (e.g. proxy01.sipphone.com);...
  • Page 89 Once this informa on is correctly entered, a new fi eld appears in the “Registra on Status” box located on the Connec ons Tab (Figure 76). The status will refl ect the progress of the registra on process. When complete, this will display Online. If the box does not display Online a er a short me, it means that registra on likely failed.
  • Page 90 The basic entries provided will allow support for the vast majority of EBU3326/SIP based applica ons. There are inevitably situa ons where the defaults won’t work, however. Comrex has provided some advanced op ons that can help. These op ons are located in the Systems Se ngs and can be made visible by enabling Advanced Op ons: •...

  • Page 91: Sip Troubleshooting

    Incoming calls to codecs behind routers are complicated by the need to forward ports on the router to the codec. In the case of SIP, this must be three discrete ports (For Comrex codecs these are UDP 5060, 5014 and 5015)<6014 and 6015 with 3.0 fi...

  • Page 92: Stunning Success

    Comrex codecs in the Advanced EBU3326/SIP op ons and allows for the codec to learn its public IP address. It does this by contac ng a STUN server on the Internet (the default one is maintained by Comrex) and reques ng its Public IP.
  • Page 93 Gnu Public License (GPL). For more informa on on GPL see h p://www.gnu.org. As per the GPL, source code for this so ware is available on request from Comrex on CD-ROM or other electronic format. To obtain this so ware please contact our support department at +1 978 784 1776. We retain the right to charge a small handling fee for distribu on of this so ware.

  • Page 94: Warranty

    During the warranty period, we will repair or, at our op on, replace at no charge a product that proves to be defec ve, provided you obtain a return authoriza on from Comrex and return the product, shipping prepaid to Comrex Corpora on, 19 Pine Rd, Devens MA 01434 USA.
  • Page 95 OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF THE PRODUCT INCLUDING LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF USE OR INTERRUPTION OF BUSINESS EVEN IF COMREX CORPORATION OR ANY OF ITS SUPPLIERS HAS BEEN ADVISED OF THE POSSIBILITY OF SAME. IN NO EVENT SHALL COMREX CORPORATION AND/ OR ITS SUPPLIERS’...
  • Page 96 fi rmware. If you wish to deploy your own Traversal Server, contact Comrex for details on obtaining this so ware. Comrex is not liable for training or support in se ng up a TS server, and the so ware is available without warranty or guarantee of suitability of any kind.

  • Page 97: Conformity And Regulatory Information

    January 23, 2006 Equipment: Comrex BRIC-Link II Comrex Corpora on, located at 19 Pine Road, Devens, MA in the United States of America hereby cer fi es that the Comrex BRIC-Link II bearing iden fi ca on number US:DXDMD01BACCRK US:DXDMD01BACCRK complies with the Federal Communica ons Commission’s (“FCC”) Rules and Regula ons 47 CFR Part 68, and the Administra ve Council...

  • Page 98: Ec Declaration Of Conformity For R&Tte Directive

    EC DECLARATION OF CONFORMITY FOR R&TTE DIRECTIVE Manufacturer’s Name: Comrex Corpora on Manufacturer’s Address: 19 Pine Road Devens, MA 01434 hereby declare on our sole responsibility that the product: Comrex BRIC-Link II Digital Audio Codec to which this declara on relates is in conformity with the essen al requirements and other relevant requirements of the R&TTE Direc ve (1999/5/EC).
  • Page 99 U.S. telephone company. Telephone line connec ons to the Comrex BRIC-Link II are made via an RJ11C jack. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA.

  • Page 100: Appendix A Ip Compatibility

    This se ng has no eff ect on normal BRIC-Link II func ons, which con nue to operate as before.
  • Page 101 - Outgoing Connec ons - Build a profi le using the Profi le Manager Tab on the BRIC-Link II and select a Channel Mode of Standard RTP. Then choose an Xstream-compa ble encoder for the outgoing call. The Xstream will control what type of stream, if any, is returned to the BRIC-Link II.

  • Page 102: Appendix B Bric Link Ii On Unidirectional Networks

    APPENDIX B BRIC LINK II ON UNIDIRECTIONAL NETWORKS Under most circumstances, BRIC-Link II requires an IP path in both direc ons for successful connec ons, even when audio is being sent only one-way. For networks that provide data only in one direc on, it is possible to use Standard RTP mode to establish and maintain these links.

  • Page 103: Appendix C Information For It Managers

    APPENDIX C INFORMATION FOR IT MANAGERS The purpose of this appendix is to describe all open ports required for services available on the Comrex BRIC-Link II. The Comrex BRIC-Link II is a device designed to move real- me, wideband audio over IP networks. The main network interface is 1000BaseT-Ethernet.

  • Page 104: Appendix D Connections To Multirack

    (these are the system defaults for those instances), leaving UDP 9001 open for CrossLock. When making Remote entries on BRIC-Link II to connect to a Mul Rack, each instance must have its own separate entry. For BRIC Normal connec ons, this is done by entering the Public IP Address of the Mul Rack followed by “:9000”...
