Comrex BRIC-Link II Quick Start Manual

Quickstart Guide

This document describes how to quickly set up and
use BRIC-Link II in its most common, point-to-point
mode. More detailed instructions are contained in
Setting up the Hardware

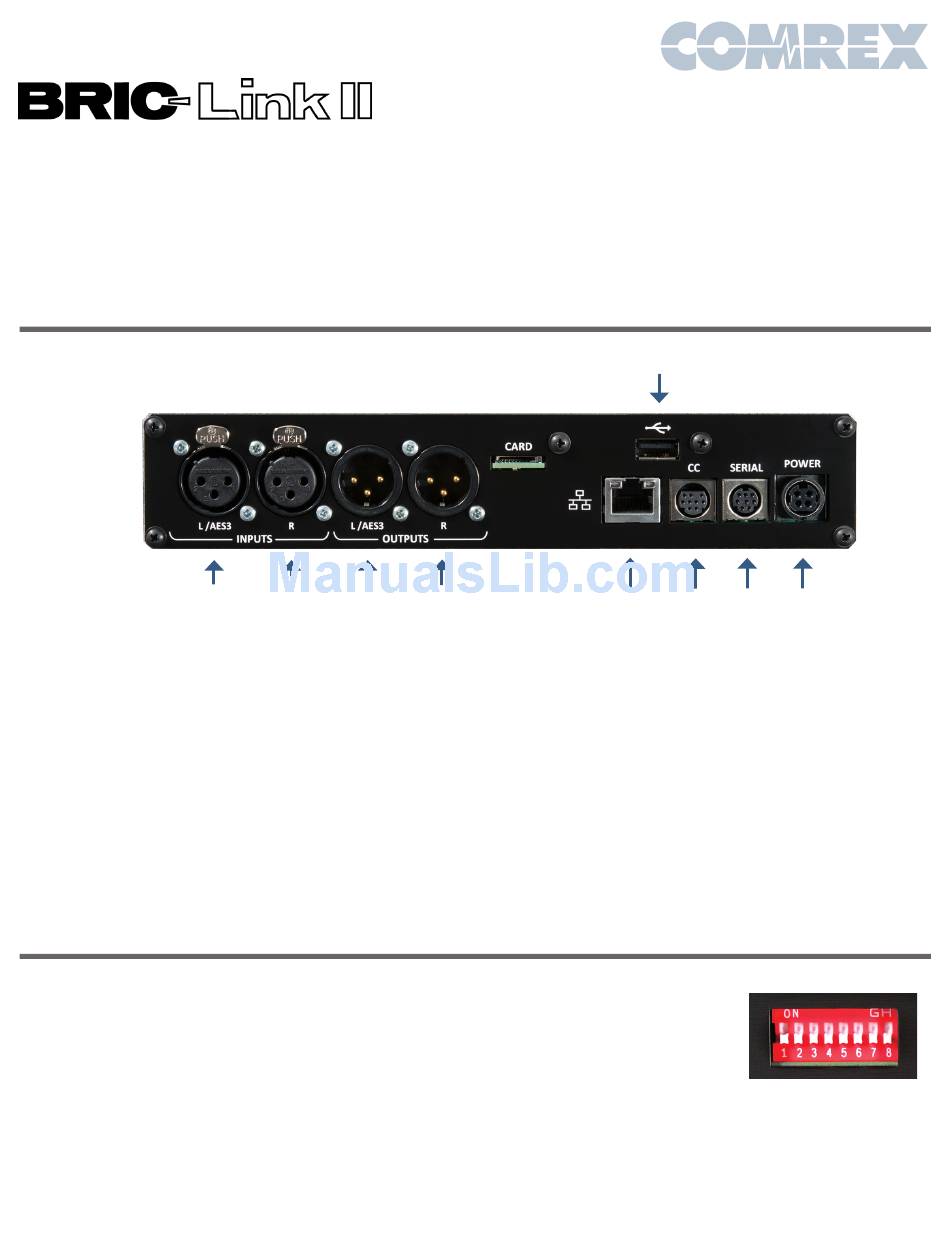

Figure 1 – Rear Panel Diagram and Descriptions
1) Left Audio/AES3 Input: Accepts professional level,
balanced analog audio, or if configured, AES3 stereo
digital audio for input.
2) Right Audio Input: Accepts professional level,
balanced analog audio.
3) Left Audio/AES3 Output: Delivers professional level,
balanced analog audio, or if configured, AES3 stereo
digital audio for output.
4) Right Audio Output: Delivers professional level,
balanced analog audio.
5) Ethernet: 1000Base-T connection for network connections.
At a minimum, BRIC-Link II needs a source of power, an
audio connection, and a network connection.
Audio connections on the XLR jacks are wired in the
following fashion:
1 Ground
2 Balanced Audio +
3 Balanced Audio -
With a nominal input level of 0dBu (+20 dBu full scale).
You may apply AES3 digital audio to the left I/O connectors
if dip switch #1 (Input) and #2 (output) are up.
1 2 3
the manual on the CD shipped with the unit. It may
also be downloaded from the Comrex website at
www.comrex.com
4
6) Contact Closures: Four sets of contact closure Inputs
and Outputs are available on this port. Inputs can be
used to send signals to the far end of the link or trigger
connections. Outputs can be used to trigger remote
control gear like automation equipment.
7) Serial: Connection for asynchronous ancillary data.
8) Power: 4 Pin connector for attachment of Comrex
approved DC power adapter. Requires 24V DC @ 1A.
9) USB: Used to attach a USB to Ethernet adapter, for
using dual networks via CrossLock.
Audio inputs should be
applied and levels checked
with dip switch #4 down. If
the audio indicators are
showing red, it indicates
the level is approaching
or reaching clipping stage.
It is OK for audio levels to
reach the yellow stage often.
The Ethernet connector is a standard 1000Base-T.
A normal patch cord, such as used for a computer,
should be connected here.
9
7 8
5 6
