Comrex Bric-Link II Quick Start Manual

Quick Start Guide

This document describes how to quickly set up and
use BRIC-Link II in its most common, point-to-point
mode. More detailed instructions are contained in the
Setting up the Hardware

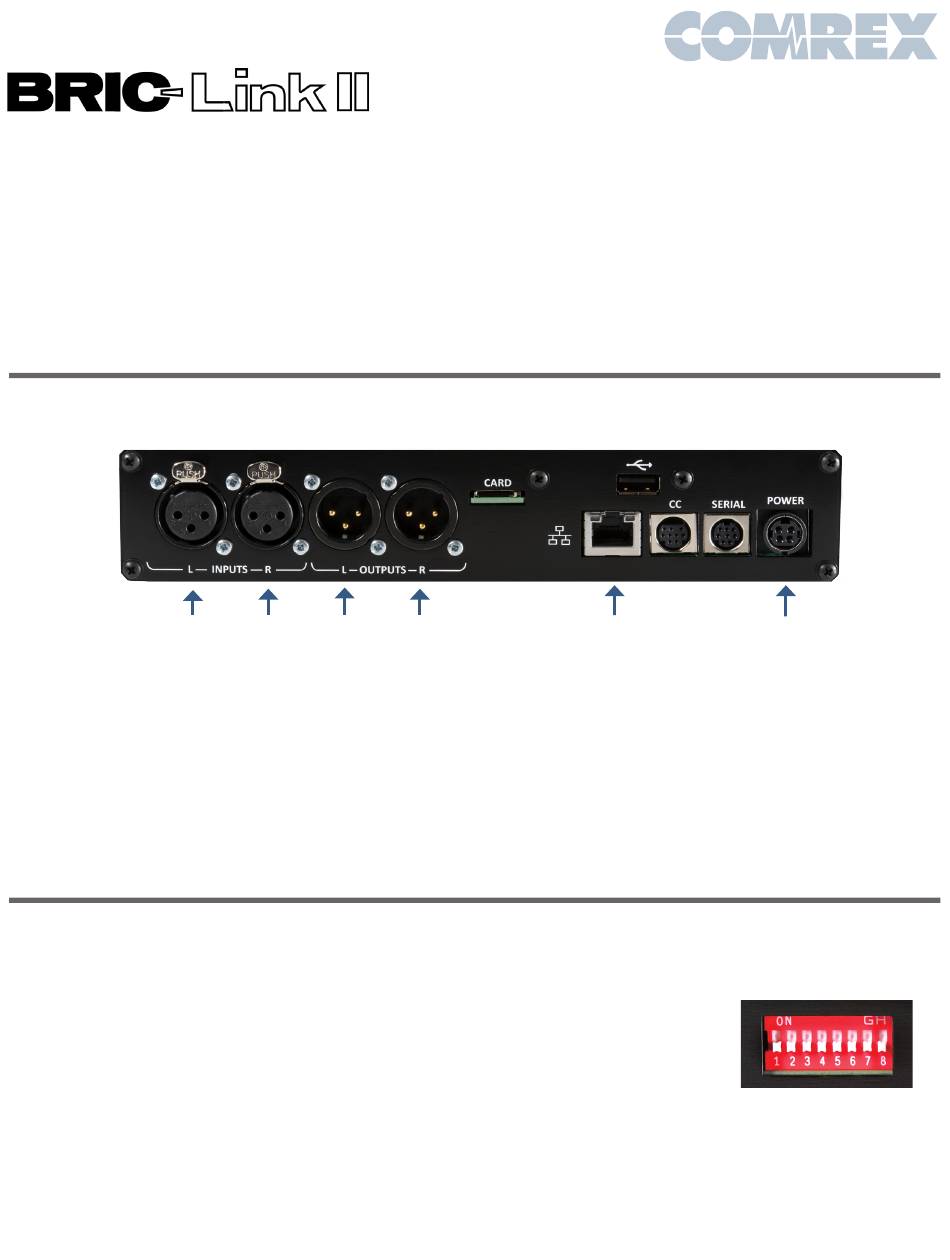

Figure 1 – Rear Panel Diagram and Descriptions
1
1) Left Audio/AES3 Input: Accepts professional level,
balanced analog audio, or if configured, AES3 stereo
digital audio for input.
2) Right Audio Input: Accepts professional level, balanced
analog audio.
3) Left Audio/AES3 Output: Delivers professional level,
balanced analog audio, or if configured, AES3 stereo
digital audio for output.
At a minimum, BRIC-Link II needs a source of power, an
audio connection, and a network connection.
Audio connections on the XLR jacks are wired in the
following fashion:
1 Ground
2 Balanced Audio +
3 Balanced Audio -
With a nominal input level of 0dBu (+20 dBu full scale).
2 3 4
manual on the CD shipped with the unit. It may also be
downloaded from the Comrex web site at
www.comrex.com
5
4) Right Audio Output: Delivers professional level, balanced
analog audio.
5) Ethernet: 1000baseT connection for network
connections.
6) Power: 4 Pin connector for attachment of Comrex approved
DC power adapter. Requires 24V DC @ 1A
You may apply AES3 digital audio to the left I/O connectors
if dip switch #1 (Input) and #2 (output)
are up.
Audio inputs should be applied
and levels checked with
dip switch #4 down. If the
audio indicators are showing
red, it indicates the level is
approaching or reaching
clipping stage. It is OK for audio levels to reach the yellow
stage often.
The Ethernet connector is a standard 1000baseT.
A normal patch cord, such as used for a computer, should
be connected here.
6
