Summary of Contents for GeoMax Zoom10

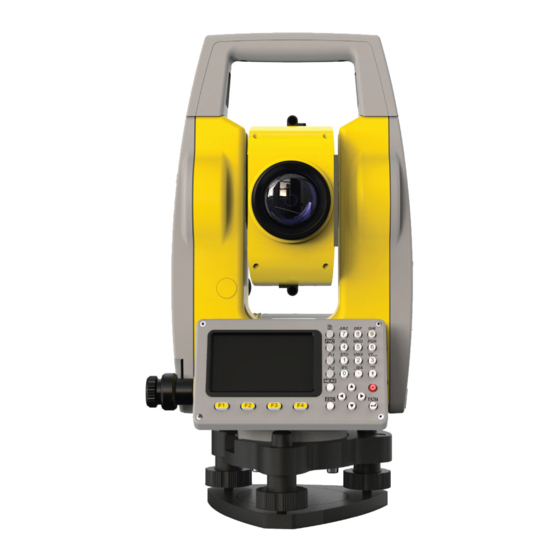

- Page 1 GeoMax Zoom10 Quick Guide Version 1.0...
- Page 2 Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual on the accompanying data storage device before using the product. If you have no such manual, or if it is in the wrong language, ask your agency for an appropriate copy.
- Page 3 Suitable for use in an atmosphere appropriate for permanent human habi- tation: not suitable for use in aggressive or explosive environments. Laser products The Zoom10 instrument contains the following laser products: Laser product Laser class EDM (Electronic Distance Measurement) module...
- Page 4 Important Information about your Instrument CAUTION Class 3R laser products From a safety perspective, class 3R laser products should be treated as potentially hazardous. Precautions: ▶ Prevent direct eye exposure to the beam. ▶ Do not direct the beam at other people. CAUTION Class 2 laser product From a safety perspective, class 2 laser products are not inherently safe for...
- Page 5 Locations of laser exit aper- tures 18437-001 Laser beam (EDM, Laser pointer) Laser beam (Laser plummet) Laser exit aperture (Laser plummet) Important Information about your Instrument...
- Page 6 Important Information about your Instrument Hazards of use The person responsible for the product must make all users fully • aware of the existing dangers during dynamic applications. Do not aim at areas that are essentially reflective, such as a mirror, or •...
- Page 7 The product must not be disposed with household waste. • Only GeoMax authorised service workshops are entitled to repair • these products. Important Information about your Instrument...
-
Page 8: Conformity To National Regulations
Hereby, GeoMax AG declares that the radio equipment type • tions Zoom10 is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the following Internet address: http://www.geomax-positioning.com/ Downloads.htm. - Page 9 WARNING This device complies with Industry Canada’s licence-exempt RSSs. Opera- tion is subject to the following two conditions: This device may not cause interference; and This device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency The radiated RF output power of the instrument is below the Health Cana- (RF) Exposure...
-
Page 10: Instrument Components
Instrument Components Instrument Components Instrument com- ponents part 1 of Optical sight Levelling bubble Ports for SD card and mini USB RS232C port Focusing telescope image Eyepiece; focusing graticule Clamping screw Vertical drive 18440_001... - Page 11 Instrument com- ponents part 2 of Detachable carrying handle with mounting screw Battery cover Clamping screw Horizontal drive Footscrew Objective with integrated Elec- tronic Distance Measurement (EDM). Exit for laser beam. Keyboard Display 18441_001 Instrument Components...
-
Page 12: Technical Data
Technical Data Technical Data Environmental Temperature specifications Operating temperature [°C] Storage temperature [°C] -20 to +50 -40 to +70 Protection against water, dust and sand IP54 (IEC 60529) Humidity Max 95 % non condensing. The effects of condensation are to be effectively counteracted by periodi- cally drying out the instrument. -
Page 13: Care And Transport
Care and Transport Care and trans- Carry the product in its original container or carry the tripod with the • port attached product upright, to protect it against shock and vibration. Periodically carry out test measurements and perform the field adjust- •... -
Page 14: Operation
Operation Operation Getting started 18445-001... - Page 15 ☞ The battery must be charged before using it for the first time. Operation...
- Page 16 879539-1.0.0en Original text (879539-1.0.0en) © 2019 GeoMax AG, Widnau, Switzerland GeoMax AG www.geomax-positioning.com...
