- Page 1 L8542447 05/2008 rev 2 ENG CALL UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 SIM CARD DL2 DL3 DL4 DL1 ALARM N.C. T315mA BATT 12Vdc SHIELD F2 115V 0,2AT F2 230V 0,1AT RADIO F2 24V 0,5AT CH1 N.C. CH2 N.C. CH3 N.C. CH4 N.C. CH1 N.O. CH2 N.O. CH3 N.O. CH4 N.O. C H1 C H2 C H 3...
-

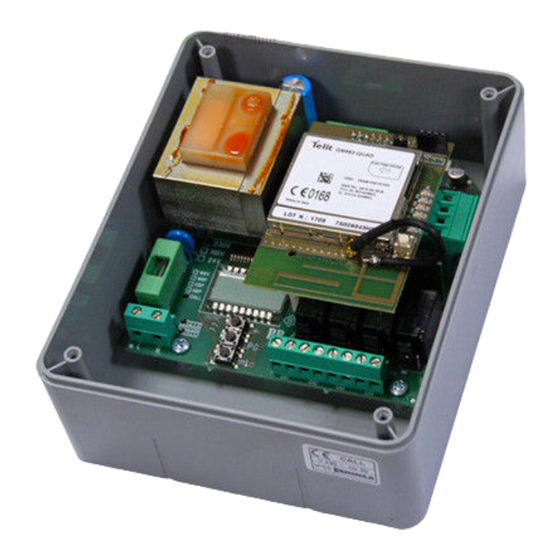

Page 3: Gsm Module
The presence of a GSM module allows to interact with the device through the use of a mobile phone. It is in fact possible to: Activate a channel on the receiver through phone call (this is a no cost call as the device cuts the call after a few rings with no answer);... - Page 4 The command signals are sent through a normal SMS message sent from a mobile phone to a number of the SIM card placed in the CALL device. In its turn, for some commands, the device will reply with a SMS message.
- Page 5 1 will be activated (or send the text ch2, ch3, ch4 according to the channel to be activated). As described hereunder, the SMS messages to activate the channels can be modified. N.B.: if a notice SMS is required by the Call device, the message sent shall be: “?ch1”, the answer will be: “COMMAND OK”...
- Page 6 When a number is stored in memory via SMS, it acquires the default permitted access and presetting (see section “operation”). To modify these permitted accesses, see command “modnum” To allow for the correct operation of the phone call, the telephone must not have the function “hide number” activated.
- Page 7 RESET OF SENT SMS COUNTER: This command permits to reset the counter of SMS sent by the CALL device. This counter can be useful to count the messages sent since the last recharge made in order to estimate the remaining credit.
- Page 8 If a reply should be sent by the device, the command shall be: ?smsreset 112233 The reply will be: “COMMAND OK” OUTPUT COMMAND MESSAGE: This command permits to modify the text of channel activation SMS, so as to be able to combine a specific output to an ID word of the device to be activated or deactivated.
- Page 9 12) REQUEST OF TRANSMITTER STATUS IN RECEIVER CONNECTED TO THE MODULE: This command permits to know whether a specific transmitter is enabled or not testtx 112233 02D762D where: command string testtx access password 112233 string of 7 hexadecimal digits (0 – F) representing the SN of the TX to 02D762D request the status The reply will be one of the following...
-
Page 10: Alarm Function
The message consists in a telephone call to the first number in memory enabled for this function (the order is determined by the memorisation order in the SIM card). Whoever receives the call will be cable to hang up and the alarm message will stop. Conversely, the call will stop automatically ad the second enabled number will be called after 30 seconds, and so on. -
Page 11: Specifications
RADIO RECEIVER MODULE In this second part, the four channel radio receiver functions are described such as wire connections, output configuration, memorising of transmitters, etc.. SPECIFICATIONS - Four output, independent and freely configurable channels - Rolling code radio receiver - 433.92MHz frequency - Programming through built-in LCD display - Standard memory for 512 transmitters. - Page 12 PARAMETERS MENU FUNCTION The operating mode of channel 1 is preset. The descriptions of the single submenus are shown hereunder: Monostable. The relay activates for 1 sec when the corresponding key is pressed; then the relay returns to its original status. Bistable.
