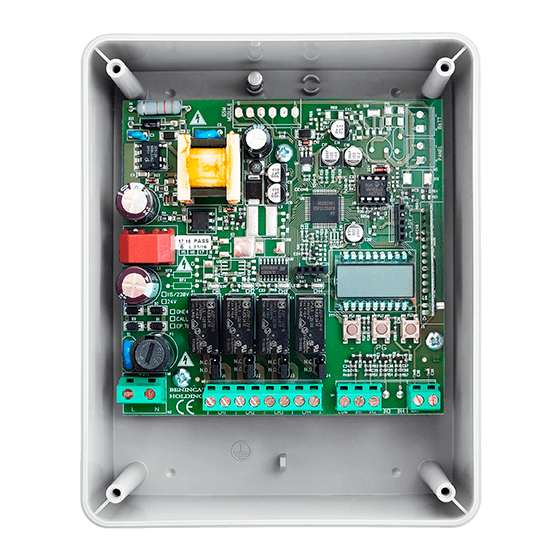

- Page 1 L8543099 10/2016 rev 1 ONE.4WB UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 CH1 N.C. CH2 N.C. CH3 N.C. CH4 N.C. CH1 N.O. CH20 N.O. CH3 N.O. CH4 N.O. CH1 CH2 CH3 CH4...
- Page 3 WARNING GENERAL INFORMATIONS The product shall not be used for purposes or in ways other than those for which the product is intended for and as described in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any deformation, which might occur during use.
-
Page 4: Specifications
Storing new ARC transmitters is quite similar to that of normal rolling code transmitters with HCS coding, but be aware that: 1) Transmitters of different encoding type cannot be stored in the same ONE.4WB. 2) The first transmitter stored in memory defines the type of transmitters to be used afterwards. For example if the first transmitter is ARC it will not be possible to store in memory rolling code (HCS ) transmitters or fixed code ones... - Page 5 3) PROGRAMMING The programming of the various functions of the control unit is carried out by using the LCD display in the receiver and presetting the desired values in the programming menus described hereunder. 1 - Press the <PG> key, the display shows the first Parameters Menu “PAR”. 2 - By using the keys <+>...
- Page 6 3.3) RADIO MENU FUNCTION If selecting the menu Radio the screen shows “PSU”, it means that the memory has been protected by a Password using the programmer ADVANTOUCH. Every operation on the receiver memory can be done only with the ADVANTOUCH. Menu to type in the transmitter codes in memory.
- Page 7 Search Menu for transmitter codes stored in memory. The single submenus are described hereunder: find The receiver will wait to receive a code, press a button on the transmitter, if code present, see the location in memory. n tx The number of transmitter codes stored in the receiver memory is displayed. 3.4) PASSWORD (pass) It allows to type in an access protection code to the programming of the control unit.
- Page 8 The most recent and complete certificate of conformity is Il Certificato di Conformità più completo e recente è disponi- available consulting the site: www.beninca.com or can be bile consultando il sito: www.beninca.com oppure può essere requested from: richiesto presso: Automatismi Benincà...
- Page 9 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
