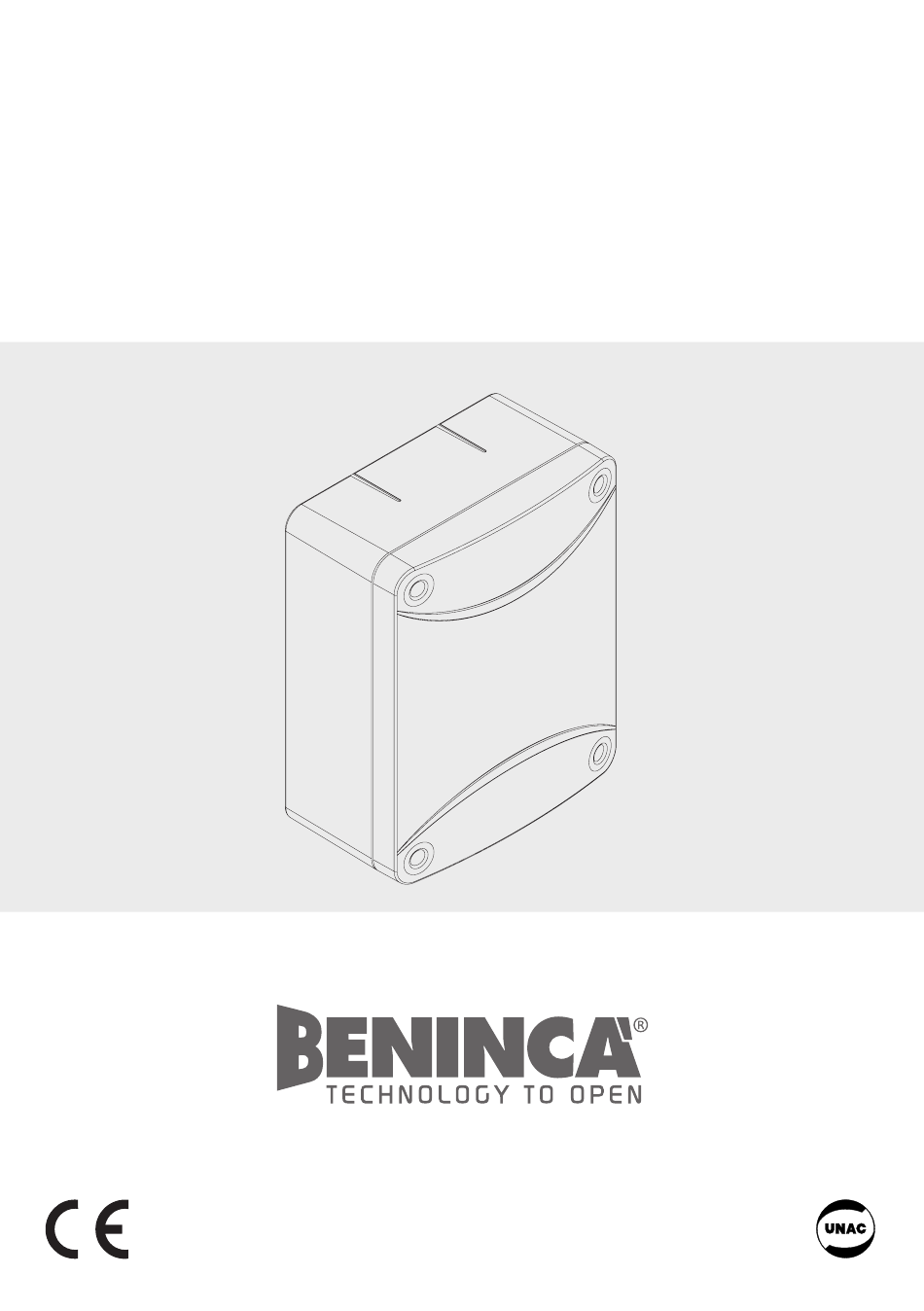

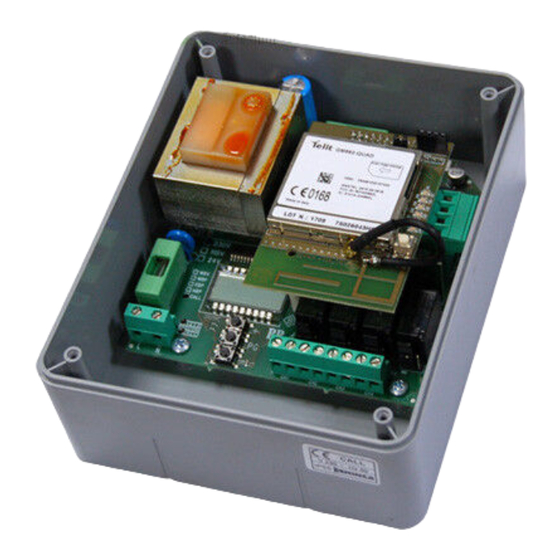

- Page 1 L8542447 06/2009 rev 3 ENG CALL UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 SIM CARD LED1 LED2 LED3 LED4 LED5 LED6 ALARM N.C. T315mA BATT 12Vdc SHIELD F2 115V 0,2AT F2 230V 0,1AT RADIO F2 24V 0,5AT CH1 N.C. CH2 N.C. CH3 N.C. CH4 N.C. CH1 N.O. CH2 N.O. CH3 N.O. CH4 N.O. C H1...
- Page 3 6) If the selected mode is Open Access, the system is ready for use. * Check that the SIM that is to be used for the CALL system is activated, take note of the telephone number of the SIM itself.
- Page 4 Activate a receiver channel through normal vocal call (this call is free of charge as the device cuts off the call after a few rings, without answering);...
-
Page 5: Led Diagnostics
LED DIAGNOSTICS The 6 LED of the GSM module allow for the monitoring of the status of the CALL system: LED 1 (red): 1 flash every 2 seconds: SIM correctly recorded in the GSM network 2 flashes every second: SIM in the recording mode in the GSM network... - Page 6 ACTIVATE A CHANNELTHROUGH VOCAL CALL: call the CALL device with a telephone the number of which had been previously memorised. After 2 rings, the call is cut off automatically and channel 1 is ac- tivated (the channel to be activated by this type of call can be changed through command “modnum”).
- Page 7 This command permits to modify the permitted access and presetting of one or more mobile phone num- bers, or it permits or denies the possibility to activate some channels, change the combination call/channel to be activated, call in the event of alarm.
- Page 8 STATUS REQUEST OF PRESETTING AND PERMITTED ACCESSES OF A NUMBER: This command allows to know presetting (presetting of alarm and channel to be activated by phone call) and permitted accesses (channels which can be activated by SMS) regarding one specific number stored in memory.
- Page 9 RESET OF SENT SMS COUNTER: This command permits to reset the counter of SMS sent by the CALL device. This counter can be useful to count the messages sent since the last recharge made in order to estimate the remaining credit.
- Page 10 HOW TO DISABLE THE TX PRESENT IN THE RECEIVER CONNECTED TO THE MODULO: This command permits to disable a transmitter. This will remain stored in the receiver memory but it will not activate any channel (to restore it, use command “addtx”) distx 123456 02D762D where: command string...
- Page 11 STATUS REQUEST OF RECEIVER OUTPUTS: This command permits to know the status of outputs, in other words whether they are activated or not (preset outputs in impulsive mode will always how their OFF status). recstatus 123456 where: command string recstatus access password 123456 REPLY:...
-
Page 12: Alarm Function
+NN3391234567 (and following) will be called if an alarm occurs *In this case, the international code must be entered so that the alarm call can reach the user even if he is in a foreign country, different from the country in which the CALL device is installed. -
Page 13: Specifications
RADIO RECEIVER MODULE In this second part, the four channel radio receiver functions are described such as wire connections, output configuration, memorising of transmitters, etc.. SPECIFICATIONS - Four output, independent and freely configurable channels - Rolling code radio receiver - 433.92MHz frequency - Programming through built-in LCD display - Standard memory for 512 transmitters. - Page 14 After 60 sec wait, the receiver exits the programming mode and the display switches off. Each single function, which is available in the control unit, is described in the following tables PARAMETERS MENU FUNCTION The operating mode of channel 1 is preset. The descriptions of the single submenus are shown hereunder: Monostable.
