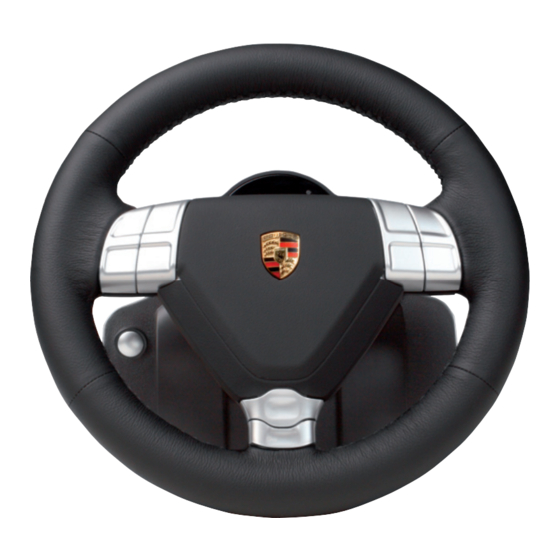

  • Page 3 Manual Porsche 911 Turbo Wheel (PWT) Thanks for choosing the Porsche 911 Turbo Wheel. Before using this product read this manual for important safety and health information. Keep all manuals for future reference. For FAQs and further information please visit www.FANATEC.com.
  • Page 4 Installation of driver (PC only) Power supply for pedals WARNING Electrical connection Before using this product, read this manual for important safety and health information. Keep SWITCH BETWEEN MODES all manuals for future reference. For replacement manuals, go to www.FANATEC.com (choose TUNING „Support“). CALIBRATION...
  • Page 5 GENERAL • Play in a well-lit room. • Do not play when you are drowsy or fatigued. WARNING: Photosensitive Seizures If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before playing. A very small percentage of people may experience a seizure when exposed to certain visual images, including fl ashing lights or patterns that may appear in video WARNING: Musculoskeletal disorders...
  • Page 6 While researchers are not yet able to answer many immediately after using a video game. questions about MSDs, there is general agreement • Utilisation of the vibration and Force Feedback that many factors may be linked to their occurrence, function may cause damage to your health. including medical and physical conditions, stress and •...
  • Page 7 WARNING: Electrical Safety way, stop using it immediately and contact As with many other electrical devices, failure to take Fanatec Customer Support for a replacement. the following precautions can result in serious injury or • Unplug your racing wheel’s power cord during...
  • Page 8 WARNING: Remove Batteries Aboard Aircraft Before packing the racing wheel in luggage that will be checked on an aircraft, remove any batteries from the racing wheel. The racing wheel can transmit radio frequency (RF) energy, much like a cellular telephone, whenever batteries are installed.

  • Page 9: Content Of Package

    Only racing games which support the Porsche wheel will use the full functionality of the wheel. For a full list of • „Wireless USB“ dongle games please look at www.FANATEC.com. • USB memory stick with driver and manual To ensure increased compatibility you can switch to a •...
  • Page 10 DESCRIPTION OF WHEELBUTTONS Buttons on Wheel (Playstation Mode) D-Pad...
  • Page 11 Buttons on Wheel (PC Mode) D-Pad...
  • Page 12 DESCRIPTION OF PARTS AND BUTTONS Pedals Steel plate for pedals Steel plate Clutch Clutch Brake Brake Throttle Throttle Screws Screwdriver Bottom 4x AA batteries 4x AA batteries Battery cover Battery cover...
  • Page 13 Gear Sticks Wireless USB Dongle 6-speed gear stick plus reverse PS/2 Slot Sequential PS/2 Slot With two LEDs and a button white LED = connection with base red LED = connection with pedals...
  • Page 14 Buttons Basebutton Tuningbutton Shifter paddles Key mapping for Playstation Right = R1 Left = L1...
  • Page 15 Cables Power supply (DE) Power supply (US) UK Adapter (EU Version only) Power supply cables 110V-220V Power supply for wheel Base to Pedals Base to Gear Stick...

  • Page 16: Installation

    INSTALLATION To build up some counterforce use a fl at underground and place the wheel vertical on the tubes. Then push the wheel down with soft Installation of gear sticks pressure. Make sure that the tube fi xation screws are lose. Use a coin and not a screwdriver.
  • Page 17 Connect the gear stick connection cable with the base and the gear stick. Please note that only one gear stick can be active at the Put the wheel on the side to build up some same time. The plug on the opposite side can be used for counterforce and press the gear stick on the tubes the power supply for the pedals.
  • Page 18 Pull out the table clamp a little bit Adjust the width of the lap wings. (5 cm). Push the table clamp into the base. Insert the lap wings as shown in the picture.
  • Page 19 Tighten the table clamp fi xation screw. Table installation To use the wheel Open the table clamp fi xation screw. Fasten the quick release clamps. Pull out the table clamp a little bit.
  • Page 20 Mount the wheel to the table and then push in the Fasten the quick release clamps. table clamp as much as possible. Please note that the quick release clamps must be unfastened. Please note that if the shape of the edge of your table does not allow the fi xation with the table clamp you could use some books to fi x it.
  • Page 21 Bit) or Windows Vista (32-Bit/64-Bit). The driver is stored on the memory stick that is included. Please check www.FANATEC.com for the latest updates on the driver. You can replace these batteries with any quality The functionality of the driver will be explained in the rechargeable or non rechargeable batteries.
  • Page 22 The pedal fall into stand-by mode after 2 minutes inactivity Electrical connection (Wheel power supply) and can be re-activated by fully pressing the gas pedal. Step 1: Connect power supply When the batteries reach a critical level the LED display The wheel has a wireless data connection to the console of the wheel will display the warning message “bat”.

  • Page 23: Switch Between Modes

    IMPORTANT: On the Playstation 3 some games require The wheel will automatically connect with the dongle. to change the mode of the Porsche 911 Turbo Wheel in If the white LED on the dongle shines permanently, the order to be fully compatible.
  • Page 24 Please note that on some Playstation 3 games it is required to use the SIXAXIS controller for Navigation in the games menu. To navigate in the menu TUNING With the TUNING feature you can fi ne tune the wheel settings independent from the game or platform even during gameplay directly on the wheel.
  • Page 25 To navigate in the menu: Force Feedback Press „TUNING“. 0 / 33 / 66 / 100 The currently active set-up will Adjust the percentage of the total Force appear, indicated by S_1 to S_5. Feedback strength. You can save up to fi ve set-ups in the controller.
  • Page 26 CALIBRATION Press the „start button“ The display will now change to G_6 If the 6-speed gear stick (7GS) is not working Bring the 7GS into 6 gear properly it might require new calibration. Press the „start button“ Please go through the following steps: Calibration is completed Connect the power supply to the base Press „start button“...
  • Page 27 Coupling the wheel: • Wait for a few seconds until the white LED stops blinking and lights up. • Press „dongle button“ Both dongle LEDs start blinking. Coupling the pedals: • Press the „dongle button“ Both dongle LEDs are blinking. •...

  • Page 28: Troubleshooting

    Pedals are not working properly TROUBLESHOOTING • In case one axis is always active, take out The Porsche 911 Turbo Wheel must not be opened or the batteries so that the pedals recalibrate modifi ed. Endor® AG expressly prohibits analysis and themselves.

  • Page 29: Technical Support (Faq)

    The white LED on the dongle Niederbayern / Germany must shine permanently. In case it does not, try to Fanatec is a brand of Endor® AG couple it (further info in the section „Coupling“). www.FANATEC.com Force Feedback strength gets weaker...

  • Page 30: Warranty

    Please check the FAQ database at www.FANATEC. com whether your problem can be already solved there. 2) The warranty covers – at the choice of Endor® AG Normally, the warranty period is two years.
