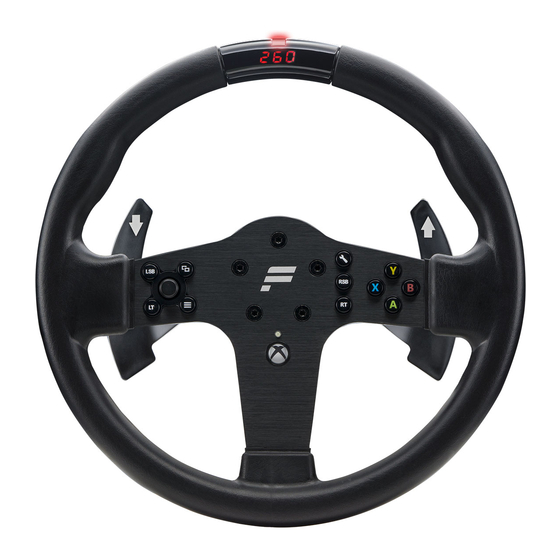

FANATEC CSl Elite P1 Quick Manual

ATTACHING THE RIM
Please download and install the latest PC driver and
wheel base firmware before mounting the CSL Elite
Steering Wheel P1 for Xbox One. You can obtain it at
Fanatec's website (www.fanatec.com) in the download
section.
1
Use fixation screw (M6 x 18mm flat head) and
Allen key from box contents.
2
Align wheel base axle to correct position.
3
Slide steering wheel onto wheel base axle.
4
Turn the steering wheel top side down to see the bottom
side of the clamp ring to follow next step below.
5
Push steering wheel until the screw hole
matches with hole on wheel base axle.
6
Turn in fixation screw to fix the clamp ring
mechanism.
Use only the Allen key from box contents.
IMPORTANT: Tighten only by using the short
lever of Allen key!
DETACHING THE RIM
1
Turn out the fixing screw and open
clamp ring mechanism, use only the
Allen key which comes with the steering
wheel!
2
Slide steering wheel off wheel base axle.
3
Store fixation screw and Allen key safely for
later use.
EXCHANGEABLE BUTTON CAPS
To detach the button caps, simply pull them out by hand.
They can be replaced with the included set of racing style
button caps for CSL Elite Steering Wheel P1.
