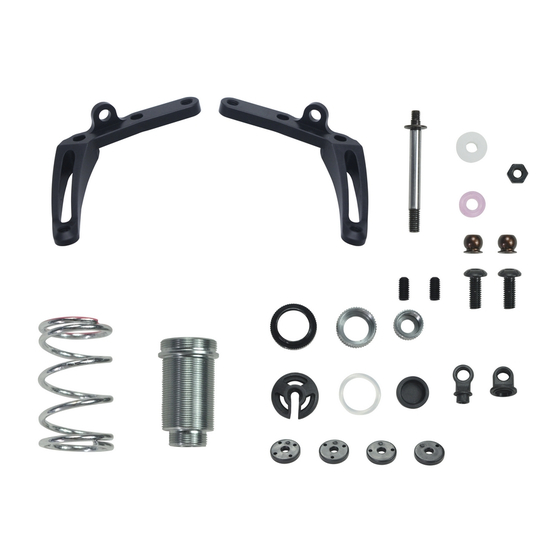

REAR HEAVE DAMPER ASSEMBLY # 903780

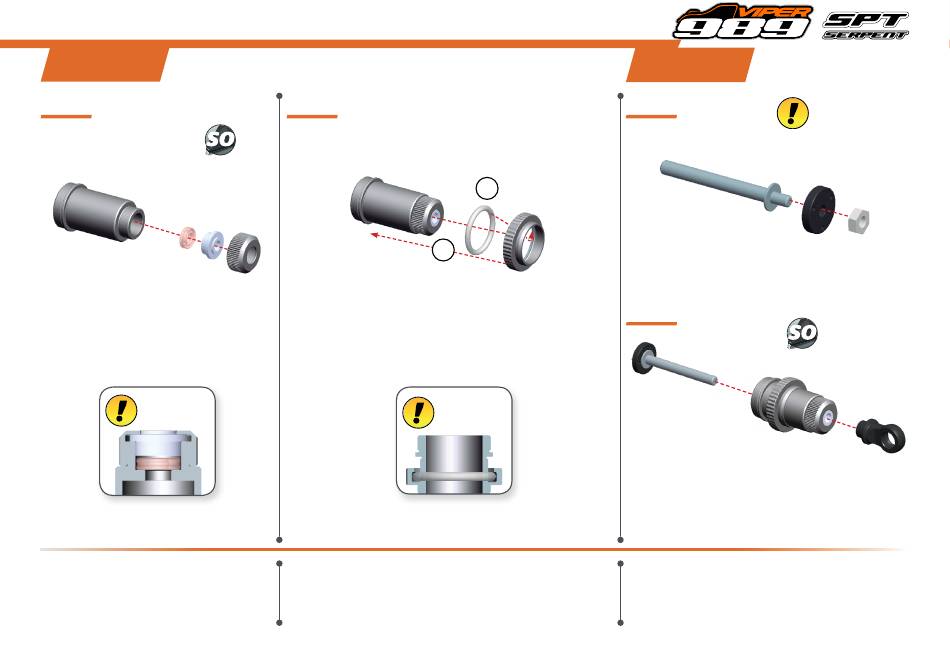

STEP 1
1.1
Use some silicone oil
during the assembly.
Note the correct
orientation of the
shock spacers .
1
1.2
Insert the o-ring
inside the spring
collar.
2
Note the correct
position of the
o-ring .
STEP 2
2.1
1
2.2
For the correct piston
holes please check the
default setupsheet.
Use some silicone oil
during the assembly.
Advertisement
Related Manuals for Serpent 903780
Summary of Contents for Serpent 903780
- Page 1 REAR HEAVE DAMPER ASSEMBLY # 903780 STEP 1 STEP 2 Use some silicone oil For the correct piston during the assembly. holes please check the default setupsheet. Insert the o-ring inside the spring collar. Use some silicone oil during the assembly.
- Page 2 STEP 3 Push the shock top and the membrane into the shock cap. 1- Fill up with sillicone oil 1-Bleed: push fully using the silicone shockrod all the way Assemble the spring and spring- oil supplied in the kit. in slowly, to allow cup (align correctly) to complete For the correct cst value...
- Page 3 STEP 5 STEP 6 Remove rear shocks and brackets Remove these 2 screws...
- Page 4 STEP 7 STEP 8 M3x6 M3x6 M3x6 M3x6 M3x8 M3x8 M3x8 M3x6 M3x8 M3x6...
