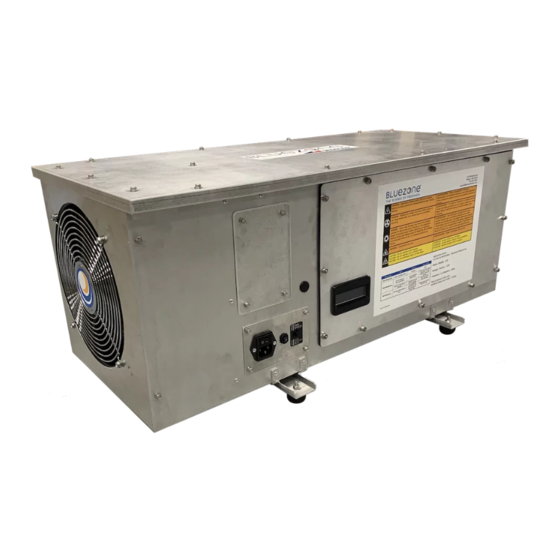

- Page 1 Document #: BPI-PM007-01 Installation, Operation and Service Manual Bluezone® Model 450 Air Purification System Bluezone Products Inc, 225 Wildwood Ave, Woburn, MA 01801 www.Bluezonefresh.com ● info@bluezonefresh.com ● 781-937-0202...
- Page 2 • Turn Bluezone units back on after Bluezone Model 450. disinfectants have dissipated. Never hose down the Bluezone Model 450 or Electrical System clean with a water jet. Direct flow of water onto the catalyst can reduce its effectiveness Energized electrical circuits present a in eliminating ozone.
-
Page 3: Specifications
(virus, fungi, Input Voltage 120 VAC 1 Phase mold and bacteria) and odors. The Model 450 can be installed into a 240 VAC 1 Phase standard 2’x4’ tile or two 2’x2’ ceiling tiles with a ceiling mounting kit, installed into Bluezone... -
Page 4: Key Components
Document #: BPI-PM007-01 Key Components Figure 1: Bluezone Model 450 Key Components... -
Page 5: Electrical System
Document #: BPI-PM007-01 Electrical System A wiring diagram of the Model 450 is shown in Figure 2. The wiring diagram applies to both the 120V and 240V SKUs of the Model 450. The asset tag on the Model 450 identifies the required voltage. - Page 6 Document #: BPI-PM007-01 Distribute the units relatively evenly Installation Guidelines throughout the space. Place the Model 450 in the room so that air Generally spreading the locations flow from the HVAC system, fans or other across the available space is good air flow systems does not blow directly into practice.
-
Page 7: Mechanical Installation
Model 450 is ceiling mount kit is available for purchase. provided in Figure 3. See Figure 4, Figure 5 and Figure 6 for mounting kits. Figure 3: Bluezone Model 450 Overall and Mounting Dimensions (units in inches) - Page 8 Document #: BPI-PM007-01 Figure 4: Illustration of the Shelf Mount Figure 5: Bluezone Ceiling Mount Kit Dimensions (fits in a 2’x4’ drop ceiling tile or two 2’x2’ ceiling tiles)
- Page 9 Document #: BPI-PM007-01 Figure 6: Rendering of the Bluezone 450 Installed into a Ceiling Mount Kit...
-
Page 10: Electrical Installation
The unit is cETLus listed at 120V. Model 450-052 The unit is CE marked at 240V. Input Voltage: 120VAC The Model 450 is shipped with a 6’ (2m) power cord for either 120V or 240V Input Frequency: 60Hz depending on the model. -
Page 11: Normal Operation
Speed Toggle Figure 7: Control Panel on Bluezone Unit Once the Model 450 is mounted and wired, it can be turned ‘On’ using the power switch on the control panel. Toggle the power switch to the “On” position to energize the unit. - Page 12 Document #: BPI-PM007-01 Figure 8: Display Sequence in Time...
- Page 13 Document #: BPI-PM007-01 Fault Conditions and Fault Codes If there are issues with the operation of the Model 450, the onboard diagnostics will indicate the nature of the problem. Display Screen codes are shown in Table 2. Table 2: Display Screen Status Indicator Fault Codes...
-
Page 14: Troubleshooting
Power “Off” unit by pressing If the Display Screen has no light or text the power switch located on then the Model 450 is not being the control panel. powered. Check the following list for b. Wait 5 seconds. - Page 15 Document #: BPI-PM007-01 Cover switch Cover switch hole Figure 9: Bluezone Model 450 Cover Switch and Cover Switch Hole...
-
Page 16: New Equipment Warranty
Bulbs contain a small amount of mercury Bulb handling should be similar to that used for fluorescent or compact fluorescent bulbs. Bluezone Products, Inc. recommends that you take advantage of available local recycling options for CFLs. Lists of recycling facilities are available at: www.earth911.org. - Page 17 Document #: BPI-PM007-01 Service BULBS NEED TO BE REPLACED AFTER 8,800 HOURS OF USE. BULB KITS MUST BE PURCHASED DIRECTLY FROM BLUEZONE PRODUCTS OR AN AUTHORIZED PARTNER AS THEY ARE PROPRIETARY BULBS. Bulbs must be replaced at 8,800 hours of Replacement Kit for the Bluezone Model operation.
- Page 18 Document #: BPI-PM007-01 Hold replacement bulbs by the Instructions for Bulb Replacement: ceramic end and push the pins into the slots in the receptacle. They need to be pushed in Toggle the power switch located on until a “click” is heard and the unit’s control panel to OFF.
- Page 19 Document #: BPI-PM007-01 Figure 10: Remove Bluezone Cover by Removing ¼” screws Figure 11: Remove ¼” Screws Holding Bulb Support Wires...
- Page 20 Document #: BPI-PM007-01 Figure 12: Remove Bulb Support Wires and Place aside...
- Page 21 Document #: BPI-PM007-01 ¼ screws Figure 13: Remove ¼” Screws on Bulb Support Clips...
- Page 22 Document #: BPI-PM007-01 Figure 14: Carefully Slide off Bulb Clips using Nitrile Gloves...
- Page 23 Document #: BPI-PM007-01 Figure 15: Remove all Four Old Bulbs by Carefully Pulling on the Ceramic Base...
- Page 24 Document #: BPI-PM007-01 Figure 16: Install 4 New Bulbs. Do not Touch Bulbs with Bare Hands...
- Page 25 Document #: BPI-PM007-01 Figure 17: Install Bulb Clips...
- Page 26 Document #: BPI-PM007-01 Figure 18: Install Bulb Support Wires...
- Page 27 Document #: BPI-PM007-01 Figure 19: Completed Assembly...
- Page 28 Model 450 Muffler Installation Instructions Materials needed: Bluezone Model 450 Muffler • • ¼” hex nut driver 1. Remove (4) ¼” drive screws from the fan end of the Bluezone Model 450 as shown in Figure 20 Figure 20: Screw Removal for Muffler Installation...
- Page 29 Document #: BPI-PM007-01 2. Place Muffler over end of Bluezone Model 450 3. Reinstall (4) ¼” drive screws to secure the muffler in place. Figure 21: Installed Muffler...
- Page 30 Document #: BPI-PM007-01 Technical Support is provided by: Bluezone Products, Inc. 225 Wildwood Ave Woburn, MA 01801 (781) 937-0202 support@bluezonefresh.com...
