ZETRON 4010 Spec Sheet

Model 4010
Radio Dispatch Console

Key Features

• Full-featured console suitable for office environments or
dispatch centers
• Accommodates up to 12 channels with a mix of control types:
DC remote, tone remote, local control, E&M control
• Fully field programmable with "Any Button, Any Function":
• Individual volume adjustment, mute, and instant
transmit per channel
• Simul-Select, All-Mute, Alerts, and Site Intercom
• Built-in encoder with optional single button paging steers
tones to proper channel and frequency
• Channel-to-channel patch and optional phone patch
• Interfaces with outside phone line or analog PBX port - ideal
for phone patches or administrative calls
• Optional Telephone/Radio Headset Interface allows one
common headset to operate both radio console and separate
telephone set
• Optional ANI decode/display shows unit identification of
calling units
• MDC-1200 Signaling. ANI and Emergency Alert/Acknowlege
features

Overview

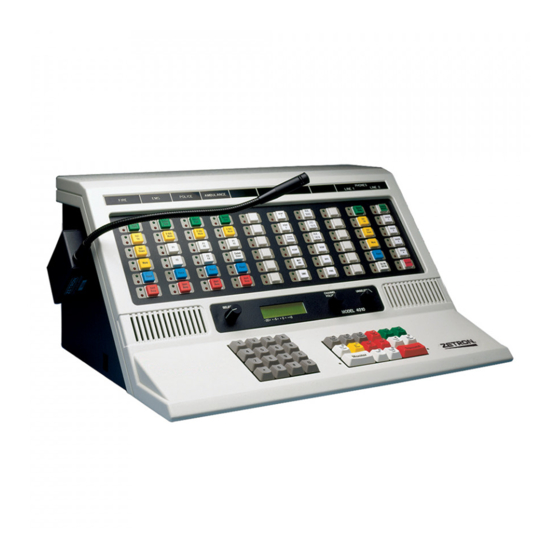

The Zetron Model 4010 Dispatch Console is a self-contained,
multichannel, radio control console which is available in both
desktop or rackmount styles. It provides dispatchers with an
efficient means of monitoring and dispatching for a system
comprised of up to twelve radio chan nels. The M4010 presents
the operator with both aural and visual cues to simplify the task
of supervising a multichannel communications system.
The Model 4010 Dispatch Console offers a cost-effective high-
performance solution for a wide range of public safety, utility,
and private land mobile radio applications. It is specifically
designed for police, fire, EMS, railroad, and plant security
Operations. Attractive enough for office environments, the Model
4010 is rugged enough for sustained, "24/7" communications
center use.
The Model 4010 can be configured with as few as two channels
and grow to twelve channels with the addition of modular
channel cards. Channel cards may be specified to be compatible
with all common local and remote control standards. The
rackmount 4010 may be equipped with an optional 60 button
expansion panel (if required).
www.zetron.com
Operation
The Model 4010 has been
designed to simplify the task of
operating a multichannel system,
allowing operators to concentrate
on the content of their dispatching
activities.
MultiFunction LCD — The backlit, wide viewing angle LCD serves
several purposes. It normally shows the time and the audio level.
During paging, it indicates the pager code being sent. In the
event of a self-diagnosed problem, the display spells out the
problem in plain English. ANI codes may be displayed as well.
Buttons — Button functions are clearly labeled and color coded
on the key' s surface to provide easy function association. All
primary functions are performed by a single keystroke.
Indicators — The indicators for the button' s function are located
next to the button for clear association. For dual functions, the
adjacent LED indicators use different colors to ensure positive
identification. The wide viewing angle ensures excellent visibility
even across the room.
Select/Unselect Speakers — Two speakers provide a left/right
audio effect, making it easy to distinguish whether the call was
from the primary (Selected) channel or some other channel.
Selecting a channel moves its monitor audio to the Select
speaker.
Spec Sheet

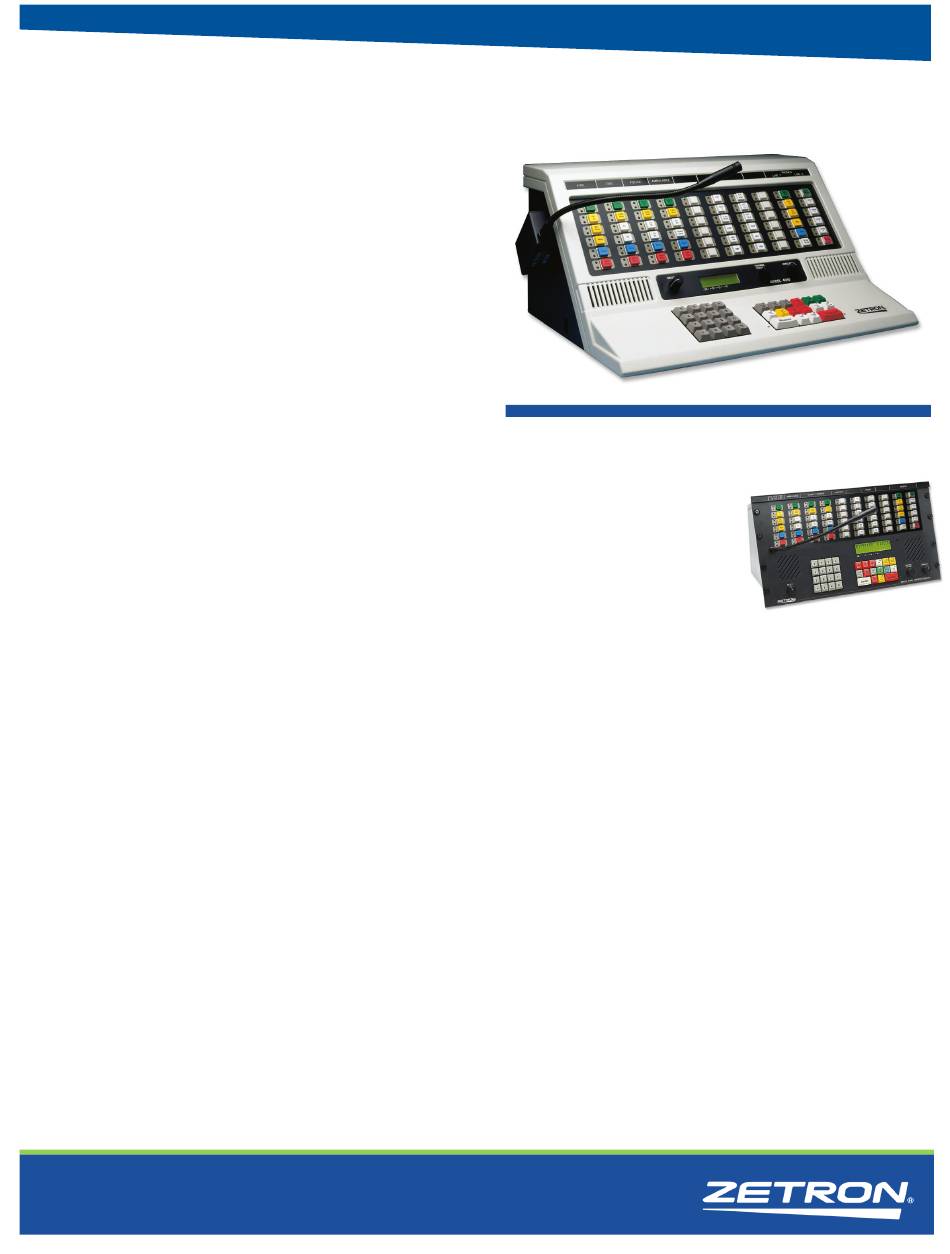

Model 4010 Rackmount
