NuTone 331H Specification Sheet

BLOWER / ROUGH-IN KITS
AND DUCTING ACCESSORIES
Provides high ventilation and durable construc-
tion to meet the needs of professional-quality
home cooktops.
FEATURES
BLOWERS:
Model RM325H *
600 cfm, 120 VAC, 3.3 Amps
Interior-mounted, single-wheel design - attaches
to rough-in plate
Includes Rough-in Kit.
Uses 7" round duct (purchase separately)
Model RM326H *
1200 cfm, 120 VAC, 5.0 Amps
Interior-mounted, dual-wheel design - attaches
to rough-in plate
Includes Rough-in Kit.
Requires 4½ x 18½ to 10" round transition and
10" round duct (purchase separately)
Model 331H / 332H / 335 / 336
600 / 900 / 1200 / 1500 cfm
120 VAC, 2.3 / 5.8 / 3.0 / 4.3 Amps
Exterior-mounted, all aluminum construction
Use with 10" round duct (purchase separately)
Requires Model 332KR Rough-In Kit (pur-
chase separately)
SPECIFICATIONS
MODEL VOLTS HZ AMPS
RM325H 120 60
RM326H 120 60
331H 120 60
332H 120 60
335 120 60
336 120 60
HVI-2100 CERTIFIED RATIngS comply
with new testing technologies and
procedures prescribed by the Home
Ventilating Institute, for off-the-shelf
products, as they are available to
consumers. Product performance is rated
at 0.1 in. static pressure, based on tests
conducted in AMCA's state-of-the-art
test laboratory. Sones are a measure of
humanly-perceived loudness, based on
laboratory measurements.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario L5T 1H9 (1-888-882-7626)
REFERENCE QTY.
Model RM325H
Model RM326H
Model 427
4½ x 18½ to 10" Rd.
Vertical Transition
CFM DUCT
3.3 600 7" Rd.
5.0 1200 4½" x 18"
2.3 600 10" Rd.
5.8 900 10" Rd.
3.0 1200 10" Rd.
4.3 1500 10" Rd.
Front/Rear Transition
REMARKS
Blower /
Rough-in
Kit
Blower /
Rough-in
Kit
Model 423
4½ x 18½ to 10" Rd.
Vertical Transition
Model 418
10" Round
90 Elbow
0
1 3
Model 424
4½ x 18½ to 10" Rd.
Project
Location
Architect
Engineer
Contractor
Submitted By
SPECIFICATION SHEET
For use with Broan Elite
RM60000 Series Range
Hoods
Models
331H &
332H

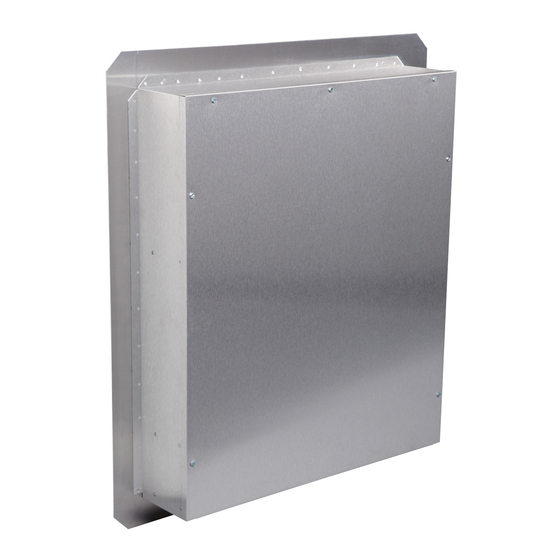

Exterior
Blowers
Models
335 &
336
Exterior
Blowers
* Model 336
dimensions
*
Model 332KR
Exterior Blower
Rough-in Kit
9
¼
Date
70D
*
3
4
1 "
H I G
D U
H
C T
C O
L L A
R
Model 453
4½ x 18½
to 10" Rd.
Left
Transition
(shown)
Model 454
4½ x 18½
to 10" Rd.
Right Transi-
tion
(not shown)
99043135D
