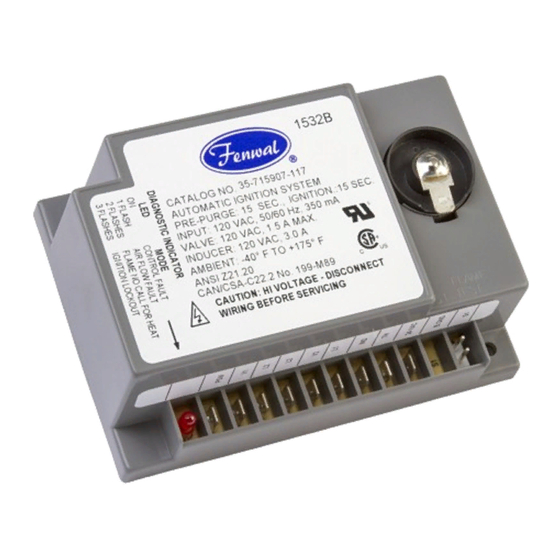

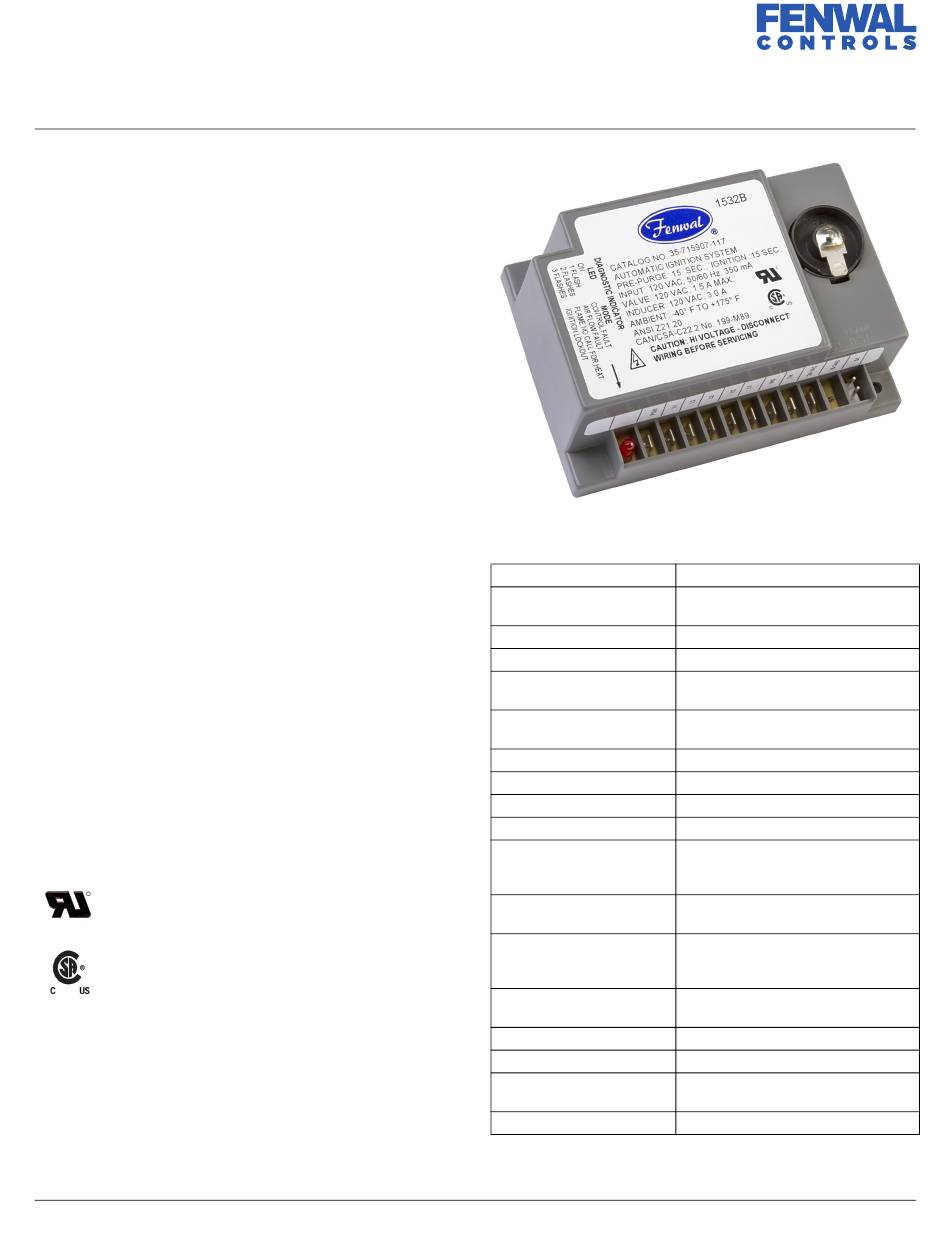

SERIES 35-71
120 VAC Microprocessor-Based Direct Spark
Ignition Control with Inducer Blower Relay
FEATURES
•
Safe start with DETECT-A-FLAME
technology
•
Custom pre-purge and inter-purge timings
•
Inducer blower control and airflow switch monitoring
•
Single or three trials for ignition
•
System diagnostic LED
•
Flame current test points
•
Local or remote flame sensing
•
Automatic reset
•
Alarm output (normally closed contact)
•
Open board, potted or enclosure
•
Polarity insensitive input power
APPLICATIONS
•
Commercial cooking
•
Agriculture
•
Infrared burners
•
Construction heaters
•
Other gas-fired appliances
DESCRIPTION
The 35-71 is a 120 VAC direct spark ignition (DSI) control
designed for use in all types of gas-fired appliances. The control
uses a microprocessor circuit to provide precise, repeatable
timing and operating sequences. On-board diagnostics with LED
output makes troubleshooting easy and ensures safe and
efficient operation.
Export Information (USA)
Jurisdiction: EAR
ECCN: EAR99
Agency Certifications
Recognized under the UL component program, UL
R
372. Software certified to ANSI/UL 1998. UL File
MH8817
Design Certified to ANSI Z21.20,
CAN/CSA C22.2 No. 199-M89
®
flame sensing
SPECIFICATIONS
Input Power
Input Current
Gas Valve
Inducer Blower
Operating Temperature
Storage Temperature
Flame Sensitivity
Flame Failure Response
Flame Detector Self-check Rate Once per second minimum
Gas Types
Spark Rate:
Size (LxWxH)
with enclosure
Moisture Resistance
Ingress Protection
Tries for Ignition
Trial for Ignition Periods
Pre-purge and Inter-purge
Timings
Post-purge Time
1
102 to 138 VAC, 50/60 Hz
350 mA @120 VAC with gas valve relay
energized (control only)
1.5A max @ 120 VAC
3.0 FLA @ 120 VAC
-40°F to +160°F
(-40°C to +71°C)
-40°F to +185°F
(-40°C to +85°C)
1.0 µA minimum
0.8 seconds maximum
Natural, LP, or manufactured
Remote
50/60 sparks/sec
Local
25/30 sparks/sec
5.11 x 3.55 x 2.00 inches
(12.98 x 9.02 x 5.08 cm)
Conformal coated to operate non-con-
densing to 95% R.H. Module should not
be exposed to water
Not rated, protection provided by
appliance in which it is installed
One or three try versions available
4, 7, 10, 15 seconds available
0, 5, 15 or 30 seconds available
0, 30 or 60 seconds available
F-35-71
March 2020
