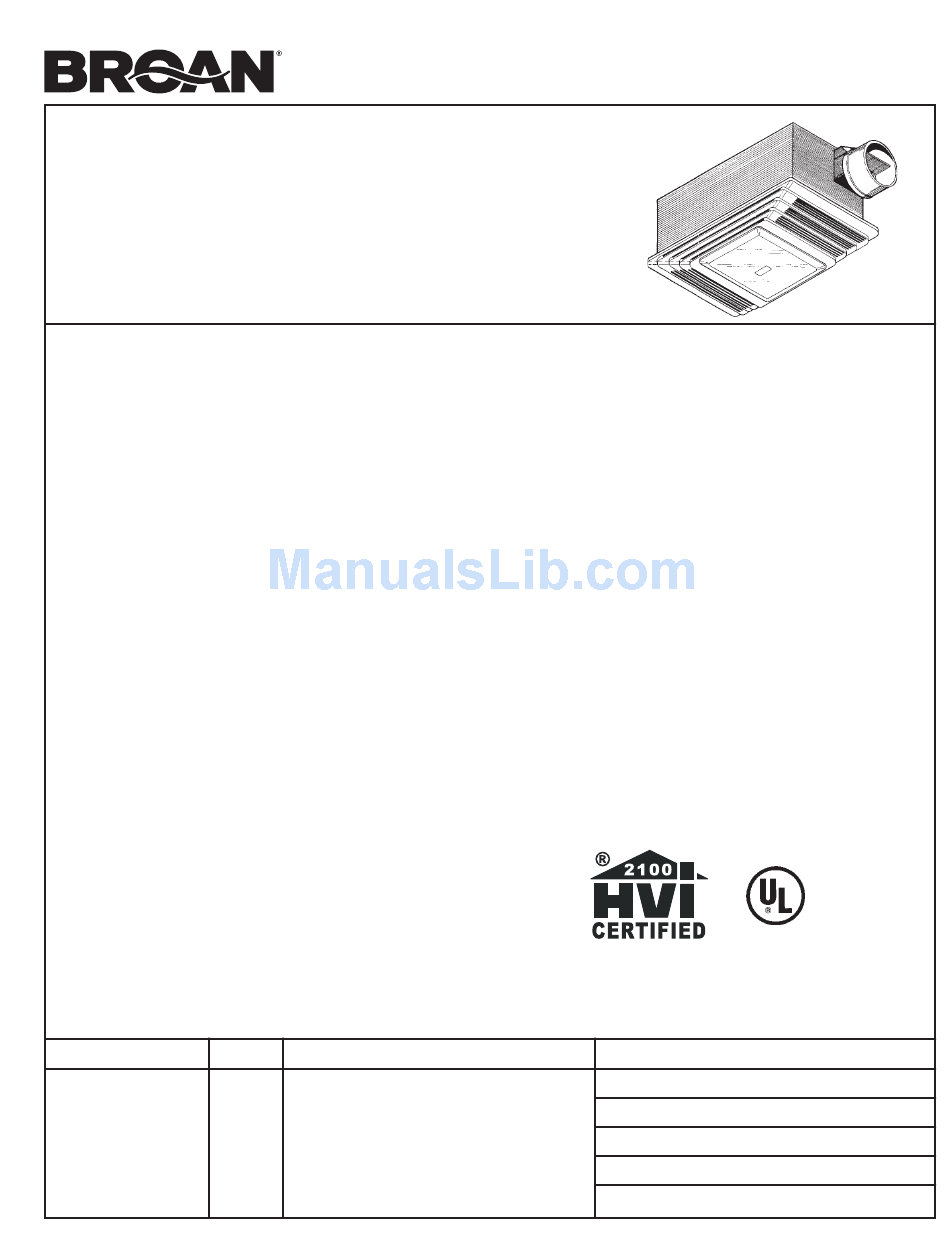

NuTone 656 Specification Sheet

COMBINATION
UNITS

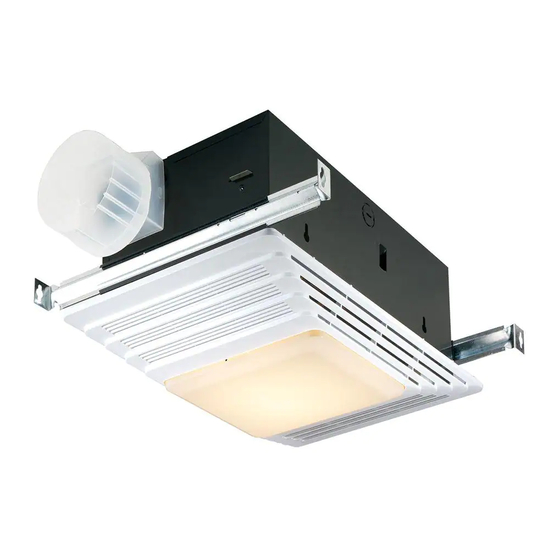

Model 655 — Heater/Fan/Light
Model 659 — Heater/Fan/Light
Model 656 — Heater/Light
Model 657 — Fan/Light
Model 658 — Heater/Fan
FEATURES
GRILLE:
•
White polymeric grille
•
Directional vanes for heat and exhaust
•
Snap-in light diffusing lens for 100W bulb (not included)
VENTILATOR (except Model 656):
•
Resilient anti-vibration mounts
•
Plug-in, permanently lubricated motor
•
Low sound, high performance blower wheel
HEATER (except Model 657):
•
1300 watts, with metal blower wheel for efficient, even
heating
•
Plug-in, permanently lubricated motor - functions
independent of ventilator
HOUSING:
•
Adjustable mounting brackets span up to 24"
•
Polymeric damper/duct connector with 2" long tapered
sleeve and no metallic clatter
•
Compact 23 gage steel housing finished with electrically-
bonded epoxy paint
NOTE: For installation in ceilings up to 12/12 pitch
•
Suitable for use in insulated ceilings (Type I.C.).
•
For all models shown above, except Model 658, use
supply wiring rated for at least 90°C.
•
Models 655 and 659: Use Model 66V (Ivory) / 66W
(White) Three Function Control
•
Models 656, 657, and 658: Use Model 68V (Ivory) / 68W
(White) Two Function Control
•
Model 657 U.L. listed for use in tub/shower enclosure with
GFCI branch wiring
Model 654H: Rough-in housing for Models 655F, 656F,
657F, 658F, 659F finish assemblies. 654H packed (4) per
carton, 655F thru 659F packed (1) per carton
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY.
TYPICAL SPECIFICATION
Combination unit shall be Broan Model 655 (Model 659)
(Model 656) (Model 657) (Model 658).
Unit shall have steel housing finished in electrically-bonded
epoxy paint and adjustable mounting brackets.
Unit shall have directional vanes for heat and exhaust and
must be rated to handle a 100W bulb.
Fan, heater and light shall be separately controllable. Motors
shall be permanently lubricated. RPM not to exceed number
listed for each model.
Air delivery shall be no less and sound levels no greater than
listed for each model. All air and sound ratings shall be
certified by HVI.
Units shall be U.L. listed.
Models 655, 656, 657, 658 and 659 suitable for use in
insulated ceilings. (Type I. C.)
REMARKS
SPECIFICATION SHEET
Project
Location
Architect
Engineer
Contractor
