Alien Skylark WMU2000 User Manual

Uhf rfid reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SKYLARK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skylark WMU2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alien Skylark WMU2000

Summary of Contents for Alien Skylark WMU2000

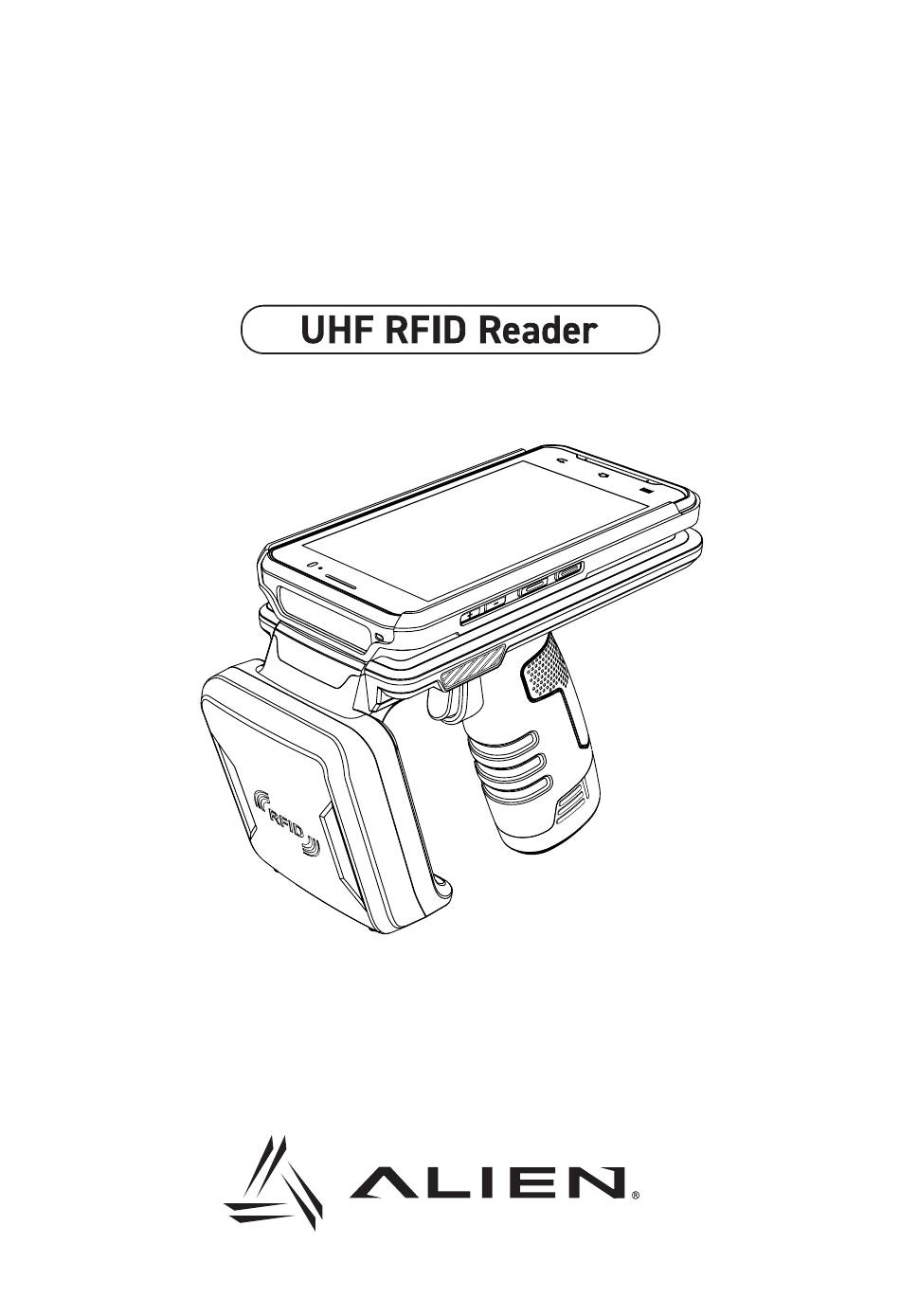

  • Page 1 SKYLARK USER GUIDE...
  • Page 2 INDEX 1 PRECAUTION BEFORE USE 2 OTHER PRECAUTIONS 3 PRODUCT COMPONENTS 4 PART NAMES 5 POWER ON 6 POWER OFF 7 CHARGING WITH USB CABLE 8 CHARGING WITH CRADLE 9 CHARGING GUN BATTERY WITH CRADLE 10 HOW TO REPLACE THE BATTERY 11 LANGUAGE SETTING 12 KEYBOARD SETTING 13 Wi-Fi SETTING...

  • Page 3: Precaution Before Use

    1 PRECAUTION BEFORE USE This product is supplied with a charging adapter and recommends using this one. There is a risk of electric shock, fire or product failure if use unauthorized adapter. Do not use a damaged power plug or loose outlet, which may result in electric shock or fire.
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The User's Manual or User's Manual for the intentional or unintentional radiator warns the user that a change or change that is not explicitly approved by the party responsible for...

  • Page 5: Other Precautions

    2 OTHER PRECAUTIONS Battery Precautions: Recommend fully charge the battery after purchase. The battery’s lifespan varies depending on the usage and usage time gradually decreases after. If the battery will not be used for a long time, keep it separate from the product.

  • Page 6: Part Names

    4 PART NAMES Receiver Illumination Sensor Charging LED RED - Low level (Charging) ORANGE - Charging GREEN - Charging Complete Menu Button Home Button Cancle Button Camera Flash Scanner Hand Strap Hole Antenna...
  • Page 7 Volume Key Scan Key Function Key Trigger Scan Key Power Key Press the power key for more than 10 seconds to reset the product. GUN Handle...
  • Page 8 PDA Sync Cable Connector SLED Sync Cable Connector Hand Strap Hole Cradle Connector...

  • Page 9: Power Off

    5 POWER ON Press the power key to turn on the power. When the power is on uccessfully, the screen of the device appears. Power Key 6 POWER OFF Press the power key while the product is powered on. Select Power Off on the screen then the screen turns off. Power Key...

  • Page 10: Charging With Usb Cable

    7 CHARGING WITH USB CABLE 1. Connect the sync cable to the SLED sync cable connector. 2. Connect the USB part of the sync cable to USB adaptor or PC. 8 CHARGING WITH CRADLE 1. Insert the charging adapter into the charging cradle. 2.
  • Page 11 9 CHARGING GUN BATTERY WITH CRADLE 1. Insert the charging adapter into the charging cradle. 2. Plug the charging adapter into a power outlet. 3. Insert the battery into the charging cradle to charge. (If charging is successful, the LED of the cradle will light. Make sure that the LED lights when charging.) Charging LED RED - Charging...

  • Page 12: How To Replace The Battery

    10 HOW TO REPLACE THE BATTERY 1. Remove the battery to be replaced by pressing down on both sides of the bottom of the gun handle and pulling it down as shown in the following illustration. 2. Replace the battery by inserting a new battery upwards as follows.

  • Page 13: Language Setting

    11 LANGUAGE SETTING The language of the product is English as the default setting. Please follow the instruction below to change the language if needed. 1. Turn on the product. 2. Swipe up on the screen to unlock the lock screen and then swipe up again to go to the apps list.
  • Page 14 5. Tap Language & Input to go to the Language & Input setting menu. 6. Tap Language to enter the Language preferences setting menu. 7. Tap Add a language to enter the Add a language setup menu. 8. Tap to enter kor or korean in the search box, then select Korean from the items appear.
  • Page 15 9. Select Korea. 10. Tap to the right of the language you want to set and drag it to the top of the list to complete the language setting. (If want to set the language of another country, select that country as well)

  • Page 16: Keyboard Setting

    12 KEYBOARD SETTING The keyboard of the product is English as the default setting. Please follow the instruction below to change the keyboard if needed. 1. Turn on the product. 2. Swipe up on the screen to unlock the lock screen and then swipe up again to go to the apps list.
  • Page 17 5. Tap Language & Input to go to the Language & Input setting menu. 6. Tap Virtual keyboard to enter the virtual keyboard setting menu. 7. Tap Manage keyboard to enter the Manage keyboard configuration menu. 8. Tap the toggle button to the right of Google Korean Input to activate the Korean keyboard.
  • Page 18 9. Tap to go to the keyboard setting menu. 10. Select Hangul to complete the keyboard settings.

  • Page 19: Wifi Setting

    13 Wi-Fi SETTING 1. Turn on the product. 2. Swipe up on the screen to unlock the screen and then swipe down to display the Quick Setting window. 3. Tap the Wi-Fi icon to enable Wi-Fi. 4. Slide down the Quick Setup window to expand it.
  • Page 20 5. Tap at the bottom right to go to the setting menu. 6. Tap Network & Internet to go to the Network & Internet configuration menu. 7. Tap Wi-Fi to go to the Wi-Fi setting menu. 8. Select Wi-Fi to connect.
  • Page 21 9. Enter the password in the next section. 10. Tap CONNECT to complete the Wi-Fi setup. (If cannot connect, check again whether the AP you want to connect to is correct or if entered the password correctly)

  • Page 22: Time Setting

    14 TIME SETTING 1. Turn on the product. 2. Swipe up on the screen to unlock the lock screen and then swipe up again to go to the Apps list. 3. Tap the Setting icon to go to the setting menu. 4.
  • Page 23 5. Tap Advanced to bring up hidden items. 6. Tap Data & Time to go to the Data & Time setting menu. 7. Tap select time zone to move to the Select Time zone setting menu. 8. Tap Region to go to the Region Settings menu.
  • Page 24 9. Type korea or south korea in the search box then select south korea from the item appear. (Choose another country to set the time for another country) 10. Tap Back to return to the Date & Time setting menu. 11.

  • Page 25: Specification

    SPECIFICATION Qualcom 2.5GHz Octacore Operating System Android 9.0 Pie upgradable thru Android R Memory 3/4GB RAM 32/64GB Flash Display 5”, IPS TFT (1080x1920), outdoor readable Touch panel 5point multi touch Keypad on screen customizable Keypad, side scan Button, Volume up/down Button, Power Button Power PDA : Li-Ion polymer, 3.7V/2800mAh SLED : Li-Ion, 7.2V/3350mAh(Detachable)
  • Page 26 MEMO...
  • Page 27 MEMO...
  • Page 28 (주)에일리언테크놀로지아시아 서울 금천구 디지털로길 99 , 909 호(가산동, 스타밸리) TEL 070-7012-1317 / FAX 02-868-1710 http://www.alienasia.com...
