SFF time P-ATX V2.1 manual

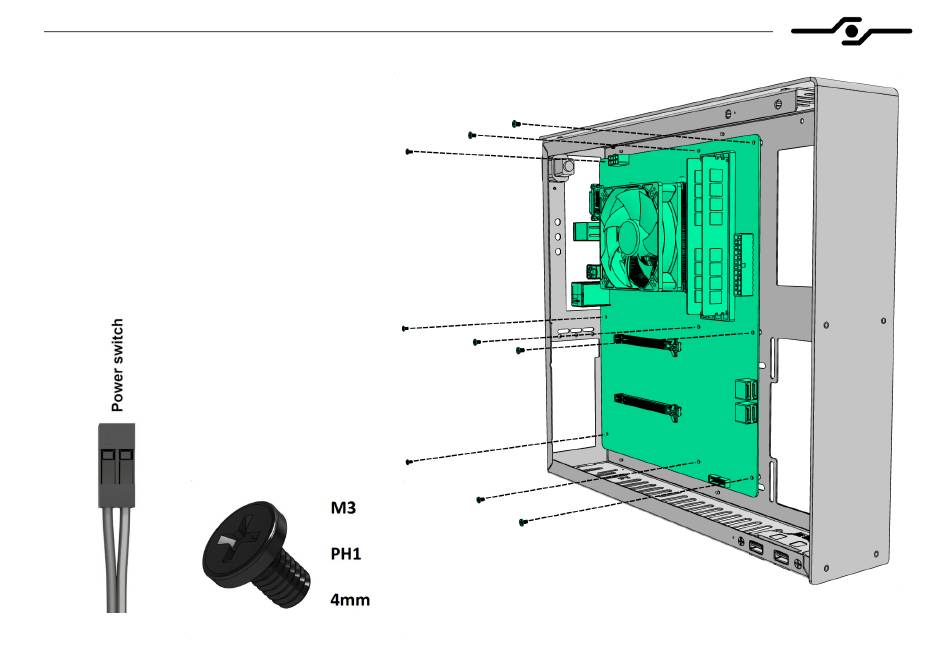

7. Installing the motherboard – bolts and cables
-
prepare the motherboard by installing CPU,
RAM, M.2 drives, and CPU air cooler if using
one
-
install the IO shield
-
align the motherboard on the standoffs
-
screw the motherboard down using provided
bolts
-
after installing the motherboard, connect
internal USB 3.0 cable and power switch
connector
-
if you are not sure about motherboard
connector positions, please consult its manual
9
