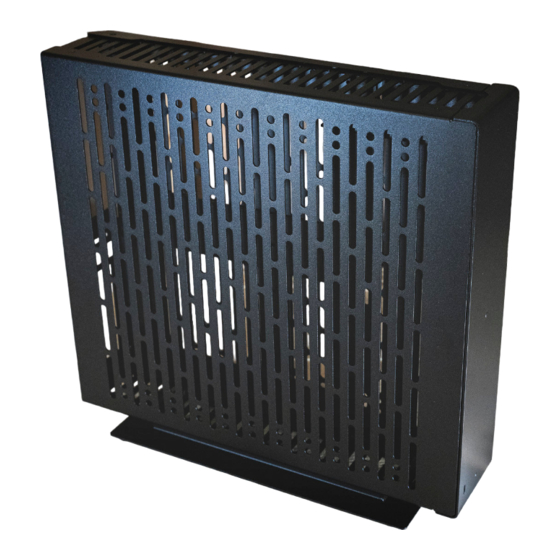

SFF time P-ATX V3 manual
Dear customer,
Thank you for purchasing SFF time P-ATX V3 case. Please read the full compatibility list before assembling your PC. You can find the list on
our website at sfftime.com.
If you have any doubts about choosing your components, or steps in this manual, please contact us via email on info@sfftime.com, and we will
be glad to assist you.
Important notes:
-
always use the correct screwdriver tip for corresponding bolts (PH1 or PH2)
-
always use the correct bolt type
-
do not overtight the bolts
-
do not force the components in, each component should be installed without using excessive force
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-ATX V3 and is the answer not in the manual?

Questions and answers

Related Manuals for SFF time P-ATX V3

Summary of Contents for SFF time P-ATX V3

  • Page 1 SFF time P-ATX V3 manual Dear customer, Thank you for purchasing SFF time P-ATX V3 case. Please read the full compatibility list before assembling your PC. You can find the list on our website at sfftime.com. If you have any doubts about choosing your components, or steps in this manual, please contact us via email on info@sfftime.com, and we will be glad to assist you.
  • Page 2 SFF time P-ATX V3 manual SFF time P-ATX V3 specifications:  10.4 L volume with 377.5 x 340 x 81 mm outer dimensions  console/"pizza box" style case with CPU and GPU fans in the same orientation  SFX/SFX-L power supply up to 130mm ...
  • Page 3 SFF time P-ATX V3 manual 1. Case assembly (part 1) your case will come with separated chassis panels and you will need to assemble them before installing your parts in it start by attaching the rear panel to the top panel with two...
  • Page 4 SFF time P-ATX V3 manual 2. Case assembly (part 2) continue by attaching the MBO tray to the rear and top panel use two 5mm countersunk bolts for top panel, and 4mm countersunk bolt for the rear panel (silver finish)
  • Page 5 SFF time P-ATX V3 manual 3. Case assembly (part 3) now attach the bottom panel to the mbo tray and to the rear panel with four 5mm countersunk bolts...
  • Page 6 SFF time P-ATX V3 manual 4. Case assembly (part 4) next step is to attach the front panel to top and bottom panels with four 5mm countersunk bolts...
  • Page 7 SFF time P-ATX V3 manual 5. Case assembly (part 5) before attaching the mask, you first need to install USB-C cable use two 5mm countersunk bolts to secure it to the front panel if you want to install multiple 2.5”...
  • Page 8 SFF time P-ATX V3 manual 6. Case assembly (part 6) now you can attach the mask to the front panel using three M3 flanged nuts with provided hex tool...
  • Page 9 SFF time P-ATX V3 manual 7. Installing the motherboard – preparing standoffs (part 1) to install standoffs, you need a standoff and bolt that holds it screw the standoff to the bolt with your hands to tighten the standoff, use screwdriver and...
  • Page 10 SFF time P-ATX V3 manual 8. Installing the motherboard – preparing standoffs (part 2) following pictures show standoff configurations for different motherboard sizes always install correct standoffs, otherwise you could damage the motherboard...
  • Page 11 SFF time P-ATX V3 manual 9. Installing the power switch before installing the motherboard, you need to install the power switch to do so use short 3mm pan head bolts on the upper side, silver 5mm long M3 standoffs between the case and the power switch,...
  • Page 12 SFF time P-ATX V3 manual 10. Installing the motherboard – bolts and cables prepare the motherboard by installing CPU, RAM, M.2 drives, and CPU air cooler if using one install the IO shield align the motherboard on the standoffs screw the motherboard down using provided bolts...
  • Page 13 SFF time P-ATX V3 manual 11. Installing GPU riser cable – preparing the riser bracket (part 1) attach two parts of the riser bracket using two pan head 4mm bolts like shown in the picture the bottom part should be oriented in a way...
  • Page 14 SFF time P-ATX V3 manual 12. Installing GPU riser cable – preparing the riser bracket (part 2) this picture shows all the positions in which you can mount the top part of the bracket, depending on your GPU thickness you can also position it in between two steps if you...
  • Page 15 SFF time P-ATX V3 manual 13. Installing GPU riser cable – preparing the riser bracket (part 3) attach the assembled riser bracket to the bottom of the chassis with four 5mm countersunk bolts...
  • Page 16 SFF time P-ATX V3 manual 14. Installing GPU riser cable – riser and bolts install the male end of the riser into the motherboard screw down the female end of the riser onto previously installed riser bracket depending on your configuration, you may need to...
  • Page 17 SFF time P-ATX V3 manual 15. Installing the GPU – GPU bracket before installing GPU, you need to attach GPU bracket to the GPU, like shown in the picture put a washer under the bolt head in necessary screw down GPU to the GPU bracket...
  • Page 18 SFF time P-ATX V3 manual 16. Installing the GPU – GPU install the GPU into the riser be sure that it is fully seated put the riser clip into locked position if your GPU is very tall, you might want to...
  • Page 19 SFF time P-ATX V3 manual 17. Installing the GPU – bolts screw down GPU bracket to the case with two screws put a washer under the bolt head in necessary...
  • Page 20 SFF time P-ATX V3 manual 18. Installing SFX power supply – PSU bracket select the PSU orientation (side with the notch will face the left panel) screw down the power supply to the bracket using four silver #6-32 bolts we recommend using the bolts supplied...
  • Page 21 SFF time P-ATX V3 manual 19. Installing SFX power supply – cable before installing the power supply into the case, screw down the internal AC cable to the rear side of the case using two 5mm countersunk bolts insert the AC plug into the connector on...
  • Page 22 SFF time P-ATX V3 manual 20. Installing SFX power supply – bolts screw the power supply bracket to the case from the front and the back side of the case using four provided countersunk screws PSU should fit into the cutout on...
  • Page 23 SFF time P-ATX V3 manual 21. Parts installed after installing all the main components, you can attach other cables, such as PSU cables you can now proceed to install side panels and the stand installation of hard drives and water-...
  • Page 24 SFF time P-ATX V3 manual 22. Installing the stand select the orientation you want the case to be in (classic orientation – stand mounted to the bottom panel; inverted orientation – stand mounted to the top panel) lay the case on its top side...
  • Page 25 SFF time P-ATX V3 manual 23. Installing side panels install side panels in a way that the notched side is oriented towards the stand notches on the side panels should go into the slots on the stand (see detailed picture)
  • Page 26 SFF time P-ATX V3 manual 24. Build complete congratulations, you have completed your build in the P-ATX V3 case! if you have any questions, comments or want to send us your feedback, please write to us at info@sfftime.com be sure to check out our website sfftime.com to see the...
  • Page 27 SFF time P-ATX V3 manual 25. Installing hard drives – 3.5” drive screw down your 3.5” drive to the case using four #6-32 silver bolts like shown in the picture...
  • Page 28 SFF time P-ATX V3 manual 26. Installing hard drives – 2.5” drive (part 1) depending on the rest of your hardware and number of 2.5” drives you want to install, you have three options for mounting them first option is one drive mounted in the same plane as the motherboard this option allows using the rest of the 2.5”...
  • Page 29 SFF time P-ATX V3 manual 27. Installing hard drives – 2.5” drive (part 2) second option is one drive mounted flush with the front panel this option allows using one 2.5” drive along with the 3.5” drive and long GPU...
  • Page 30 SFF time P-ATX V3 manual 28. Installing hard drives – 2.5” drive (part 3) third option is to mount up to five drives to the front panel this option allows using four 2.5” drives along with the 3.5” drive or up to six 2.5” drives in total...
  • Page 31 SFF time P-ATX V3 manual 29. Installing the water-cooling radiator optionally, you can install water cooling radiator in the position otherwise occupied by hard drives place the radiator with its fan mounted in a position shown in the picture, and screw it to the case using...
