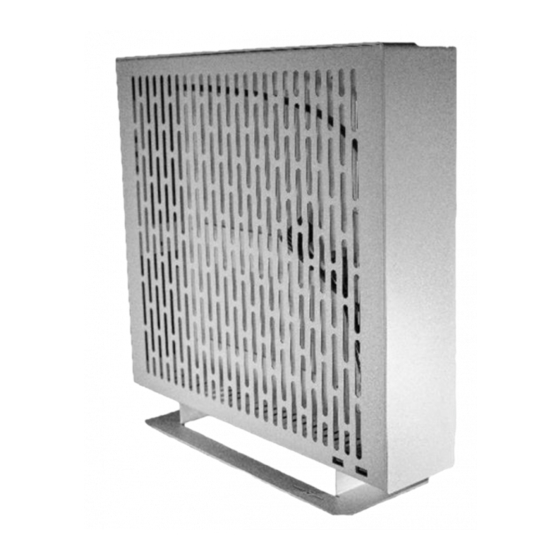

- Page 1 SFF TIME P-ATX V2.1 MANUAL...
- Page 2 SFF time P-ATX V2.1 manual Dear customer, Thank you for purchasing SFF time P-ATX V2 case. Please read full compatibility list before assembling your PC. You can find it on sfftime.com. If you have any doubts about choosing your components, or steps in this manual, please contact us via email on info@sfftime.com, and we will be glad to assist you.
- Page 3 SFF time P-ATX V2.1 manual Included with case: PSU bracket GPU bracket 92 mm fan adapter AC bracket and grommet Hex tool Mounting hardware...
- Page 4 SFF time P-ATX V2.1 manual 1. Preparing the case – removing side panels (part 1) your case will come with side panels and HDD bracket attached you need to remove them before putting other components into the case unscrew six bolts that hold the side panels, marked on the picture...
- Page 5 SFF time P-ATX V2.1 manual 2. Preparing the case – removing side panels (part 2) push side panels towards the back side of the case approximately 1 cm lift panels upwards, away from the case...
- Page 6 SFF time P-ATX V2.1 manual 3. Preparing the case – removing HDD bracket (part 1) unscrew the nut that holds HDD bracket using provided tool or with 5.5 mm socket or wrench and save it for later use...
- Page 7 SFF time P-ATX V2.1 manual 4. Preparing the case – removing HDD bracket (part 2) slide the HDD bracket towards the top of the case, and lift it up remove the washer that sits under the bracket and save it for later use...
- Page 8 SFF time P-ATX V2.1 manual 5. Installing the motherboard – preparing standoffs (part 1) case comes with standoffs installed for ITX or DTX motherboard. If you are going to install larger motherboard, please install additional standoffs (see next page) to install standoffs, you need a standoff and...
- Page 9 SFF time P-ATX V2.1 manual 6. Installing the motherboard – preparing standoffs (part 2) following pictures show standoff configurations for different motherboard sizes always install correct standoffs, otherwise you could damage the motherboard...
- Page 10 SFF time P-ATX V2.1 manual 7. Installing the motherboard – bolts and cables prepare the motherboard by installing CPU, RAM, M.2 drives, and CPU air cooler if using install the IO shield align the motherboard on the standoffs screw the motherboard down using provided...
- Page 11 SFF time P-ATX V2.1 manual 8. Installing GPU riser cable – preparing standoffs (part 1) install the standoffs the same way as motherboard standoffs, using screwdriver and provided tool position the standoffs according to your GPU thickness; if using 2-slot GPU, place...
- Page 12 SFF time P-ATX V2.1 manual 9. Installing GPU riser cable – preparing standoffs (part 2) if using 3-slot GPU that is taller than 130 mm, use shorter, 6mm long standoffs position the standoffs all the way to the right, like shown on the picture...
- Page 13 SFF time P-ATX V2.1 manual 10. Installing GPU riser cable – riser and bolts install the male end of the riser into the motherboard screw down the female end of the riser onto previously installed standoffs depending on your configuration, you may...
- Page 14 SFF time P-ATX V2.1 manual 11. Installing the GPU – GPU bracket before installing GPU, you need to attach GPU bracket to the GPU, like shown on the picture put a washer under the bolt that holds the GPU bracket...
- Page 15 SFF time P-ATX V2.1 manual 12. Installing the GPU – GPU install the GPU into the riser be sure that it is fully seated...
- Page 16 SFF time P-ATX V2.1 manual 13. Installing the GPU – bolts put a washer under the bolt that holds the GPU bracket screw down GPU bracket to the case with two screws...
- Page 17 SFF time P-ATX V2.1 manual 14. Installing SFX power supply – PSU bracket select the PSU orientation put the power supply on the flat surface take the power supply mounting bracket and put in next to power supply like shown on the picture...
- Page 18 SFF time P-ATX V2.1 manual 15. Installing SFX power supply – cable before installing the power supply into the case, insert the AC plug into the connector on the power supply like shown on the picture please take care of the PSU bracket...
- Page 19 SFF time P-ATX V2.1 manual 16. Installing SFX power supply – bolts screw the power supply bracket to the case from the front and the back side of the case using four provided countersunk screws please note that these screws are different...
- Page 20 SFF time P-ATX V2.1 manual 17. Installing hard drives – HDD bracket screw down your 3.5” or 2.5” drives to the HDD bracket using provided screws like shown on the picture you only need to screw down drives on one side for 3.5”...
- Page 21 SFF time P-ATX V2.1 manual 18. Installing hard drives – washer before installing HDD bracket into the case, put the washer on the stud like shown on picture this is the washer you removed in step 4...
- Page 22 SFF time P-ATX V2.1 manual 19. Installing hard drives – into the case put HDD bracket with hard drives in the case like shown on the picture slide the assembly towards the bottom of the case making sure that all of three HDD bracket’s tabs sit under the flanged...
- Page 23 SFF time P-ATX V2.1 manual 20. Installing hard drives – nut secure HDD bracket using the nut you removed in step 3 you can use provided tool or 5.5 mm socket...
- Page 24 SFF time P-ATX V2.1 manual 21. Parts installed after installing all the main components, you can attach other cables such as PSU or SATA you can now proceed to install side panels and the stand installation of water-cooling radiators is covered in the...
- Page 25 SFF time P-ATX V2.1 manual 22. Installing side panels – left panel install left side panel following instructions from step 2, but in reverse order secure the panel using two or three bolts (bolt on the bottom side, towards rear of the...
- Page 26 SFF time P-ATX V2.1 manual 23. Installing side panels – right panel install right side panel following instructions from step 2, but in reverse order secure the panel using two or three bolts (bolt on the bottom, towards rear of the case,...
- Page 27 SFF time P-ATX V2.1 manual 24. Installing the stand – rear slots lay the case on its top side align the slots on the stand to the tabs on the bottom of the case like shown on the picture push the stand towards the front of the case...
- Page 28 SFF time P-ATX V2.1 manual 25. Installing the stand – front slots align the slot on the stand to the tab on the bottom side of the case bend the stand by a few mm towards the front side of the case, and while it’s bent like...
- Page 29 SFF time P-ATX V2.1 manual 26. Build complete congratulations, you have completed your build in the P-ATX V2 case! if you have any questions, comments or want to send us your feedback, please write to us at info@sfftime.com be sure to check out our website sfftime.com to see the...
- Page 30 SFF time P-ATX V2.1 manual 27. Installing the water-cooling radiator – 120mm radiator (part 1) optionally, you can install water cooling radiator in the position otherwise occupied by hard drives place the radiator in a position shown on the picture, and screw it to the case using four...
- Page 31 SFF time P-ATX V2.1 manual 28. Installing the water-cooling radiator – 120mm radiator (part 2) attach the 120mm fan to the radiator using bolts provided with the radiator always use correct length bolts, otherwise you could damage the radiator...
- Page 32 SFF time P-ATX V2.1 manual 29. Installing the water-cooling radiator – 120mm radiator with 92mm fan (part 1) if you want to use dual slot GPU longer than 245mm and shorter than 270mm with 120mm radiator, you can mount the 92mm fan to the...
- Page 33 SFF time P-ATX V2.1 manual 30. Installing the water-cooling radiator – 120mm radiator with 92mm fan (part 2) attach the assembly to the 120mm radiator like shown on the picture using two provided M3 or #6-32 bolts and one bolt...
- Page 34 SFF time P-ATX V2.1 manual 31. Installing the water-cooling radiator – 120mm radiator with 92mm fan (part 3) this picture shows 267mm long (or 10.5”, reference length) dual slot GPU next to the 120mm radiator with 92mm fan...
- Page 35 SFF time P-ATX V2.1 manual 32. Installing the water-cooling radiator – 92mm radiator (part 1) to install the 92mm radiator you need to use the provided bracket attach the bracket to the case with M3 bolts and standoffs (used as nuts), like shown on the picture...
- Page 36 SFF time P-ATX V2.1 manual 33. Installing the water-cooling radiator – 92mm radiator (part 2) place the radiator in a position shown on the picture, and screw it to the case with one bolt and to the bracket using another bolt...
- Page 37 SFF time P-ATX V2.1 manual 34. Installing the water-cooling radiator – 92mm radiator (part 3) attach the 92mm fan to the radiator using bolts provided with the radiator...
- Page 38 SFF time P-ATX V2.1 manual 35. Alternative AC cable mount if your CPU cooler collides with the AC connector on the rear of the case, you can install it outside with only the cable secured to the case to do that, use provided AC bracket and cable grommet...
