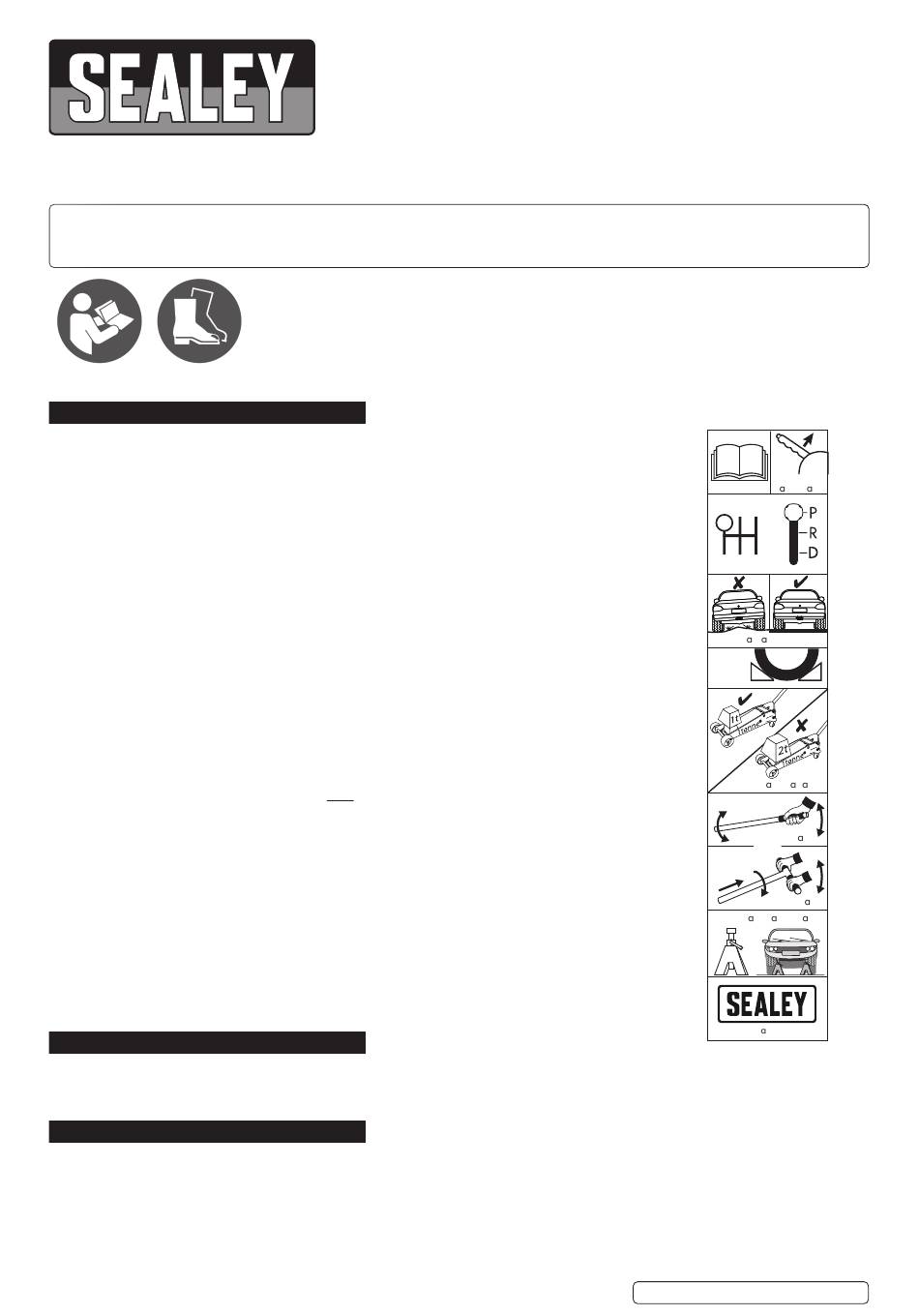

Sealey 1025HL.V4 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair
9
or replacement of damaged parts.
Use genuine parts only. The use of unauthorised parts may be dangerous and will invalidate
the warranty.
Locate the jack in a suitable, well lit, work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can move freely).
9
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear
9
(or "Park" if automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc.,
9
to allow for vehicle tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack saddle under those lifting points recommended by the vehicle manufacturer
9
(see vehicle handbook).
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
WARNING! When lifting at the jack's maximum rating (2.25tonne/2250kg) or close to it, it
‰
is recommended that the effort of raising the load shall be reduced by the use of assistance
during this operation.
DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
▲
Use suitable capacity axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than that for which it is intended.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
DO NOT adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
2. INTRODUCTION
Ideal for the garage or serious enthusiast. Suitable for 4x4s, SUV's, cars or light commercial vehicles which require high ground
clearance. Super Rocket Lift feature brings lifting arm into contact with jacking point in minimal strokes. Strong double rolled chassis.
Also suitable for loading bodyshop chassis jigs.
3. SPECIFICATION
Model no: .................................................................1025HL.V4
Capacity ....................................................................2.25tonne
Min. saddle height .........................................................150mm
Max. saddle height ........................................................535mm
Max chassis height ........................................................180mm
Length ...........................................................................720mm
© Jack Sealey Limited

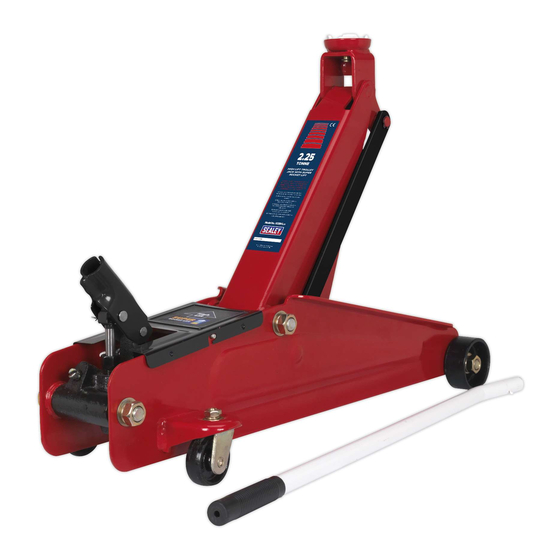

2.25TONNE HIGH LIFT SUV TROLLEY JACK
WITH SUPER ROCKET LIFT
1025HL.V4
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
Never
exceed
j ck c p city
Close
Lower
R ise
OR
Lift & twist
to lower
R ise
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
1025HL.V4 Issue 1 18/03/20
