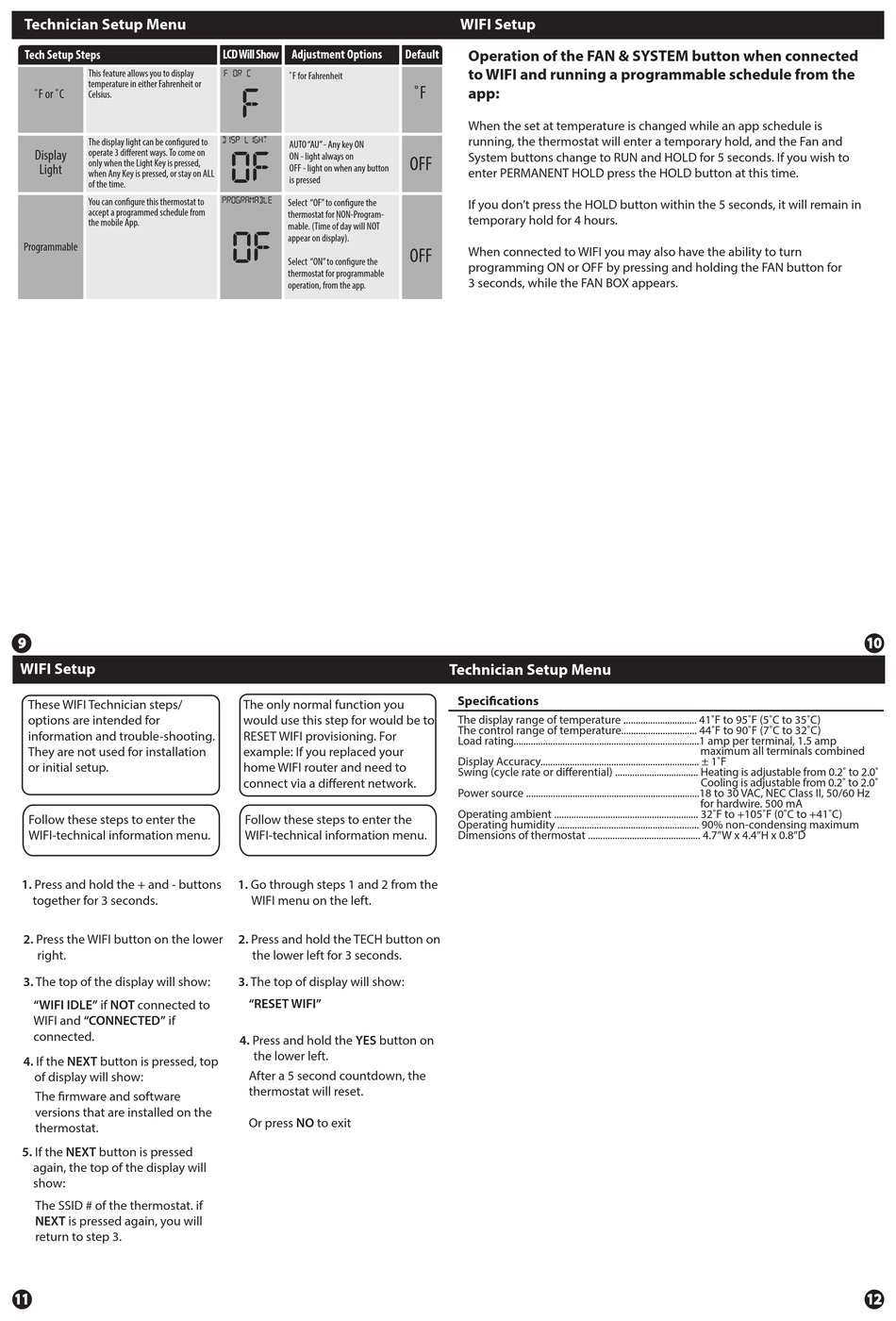

Pro1 Technologies T721i Installation Manual page 3

Technician Setup Menu
Tech Setup Steps
This feature allows you to display
temperature in either Fahrenheit or
˚F or ˚C
Celsius.
The display light can be configured to
Display operate 3 different ways. To come on
only when the Light Key is pressed,
Light
when Any Key is pressed, or stay on ALL
of the time.
You can configure this thermostat to
accept a programmed schedule from
the mobile App.
Programmable
9
WIFI Setup
These WIFI Technician steps/
options are intended for
information and trouble-shooting.
They are not used for installation
or initial setup.
Follow these steps to enter the
WIFI-technical information menu.
1. Press and hold the + and - buttons
together for 3 seconds.
2. Press the WIFI button on the lower
right.
3. The top of the display will show:
"WIFI IDLE" if NOT connected to
WIFI and "CONNECTED" if
connected.
4. If the NEXT button is pressed, top
of display will show:
The firmware and software
versions that are installed on the
thermostat.
5. If the NEXT button is pressed
again, the top of the display will
show:
The SSID # of the thermostat. if
NEXT is pressed again, you will
return to step 3.
11
LCD Will Show Adjustment Options
F OR C ˚F for Fahrenheit
F
DISP LIGHT
AUTO "AU" - Any key ON
OF ON - light always on
OFF - light on when any button
is pressed
PROGRAMABLE
Select "OF" to configure the
thermostat for NON-Program-
mable. (Time of day will NOT
OF
appear on display).
Select "ON" to configure the
thermostat for programmable
operation, from the app.
The only normal function you
would use this step for would be to
RESET WIFI provisioning. For
example: If you replaced your
home WIFI router and need to
connect via a different network.
Follow these steps to enter the
WIFI-technical information menu.
1. Go through steps 1 and 2 from the
WIFI menu on the left.
2. Press and hold the TECH button on
the lower left for 3 seconds.
3. The top of display will show:
"RESET WIFI"
4. Press and hold the YES button on
the lower left.
After a 5 second countdown, the
thermostat will reset.
Or press NO to exit
WIFI Setup
Operation of the FAN & SYSTEM button when connected
Default
to WIFI and running a programmable schedule from the
˚F
app:
When the set at temperature is changed while an app schedule is
running, the thermostat will enter a temporary hold, and the Fan and
System buttons change to RUN and HOLD for 5 seconds. If you wish to
OFF
enter PERMANENT HOLD press the HOLD button at this time.
If you don't press the HOLD button within the 5 seconds, it will remain in
temporary hold for 4 hours.
OFF When connected to WIFI you may also have the ability to turn
programming ON or OFF by pressing and holding the FAN button for
3 seconds, while the FAN BOX appears.
Technician Setup Menu
Specifications
The display range of temperature .............................. 41˚F to 95˚F (5˚C to 35˚C)
The control range of temperature............................... 44˚F to 90˚F (7˚C to 32˚C)
Load rating............................................................................1 amp per terminal, 1.5 amp
Display Accuracy................................................................. ± 1˚F
Swing (cycle rate or differential) .................................. Heating is adjustable from 0.2˚ to 2.0˚
Power source .......................................................................18 to 30 VAC, NEC Class II, 50/60 Hz
Operating ambient ........................................................... 32˚F to +105˚F (0˚C to +41˚C)
Operating humidity .......................................................... 90% non-condensing maximum
Dimensions of thermostat .............................................. 4.7"W x 4.4"H x 0.8"D
10
maximum all terminals combined
Cooling is adjustable from 0.2˚ to 2.0˚
for hardwire. 500 mA
12
