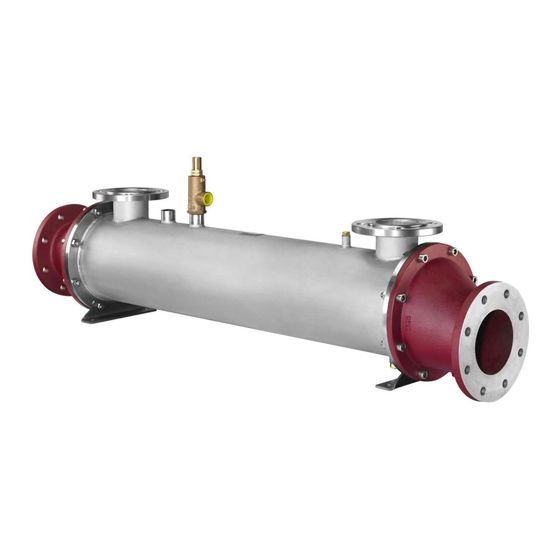

- Page 1 REG NO FM 38224 BS EN ISO 9001-2008 EXHAUST GAS HEAT EXCHANGERS Installation, Operation & Maintenance Guide...
-
Page 2: Foreword
E.J. Bowman (Birmingham) Ltd, reserve the right to change specification and technical alteration without prior notice. No part of this guide may be reproduced or transmitted in any form or by any means including reproduction or recording without written ... -
Page 3: Table Of Contents
7 . P E R F O R M A N C E 8 . S P A R E P A R T S L I S T E.J.Bowman (Birmingham) Ltd Chester Street • Birmingham • B6 4AP • United Kingdom Tel: +44 (0)121 359 5401 •... -
Page 4: Safety
1 Safety 1.1 Hazards When Handling the Heat Exchanger ® BOWMAN "Exhaust Gas Heat Exchangers" are constructed with current practice and recognised safety rules. Hazards may still arise from operation, such as: Injury of the operator or Third parties or... -
Page 5: Approved Use
"Exhaust Gas Heat Exchangers" are only approved for reclaiming heat from waste exhaust gases. ® ® Any other use unless specified by BOWMAN is not approved. BOWMAN declines all liability for damage associated or arising from such use. The maximum permissible operating pressures must not exceed: Gas (tube side) 0.5 bar max. -
Page 6: Installation
‘counter flow’ with the secondary circuit connections always being positioned on top (See schematic diagram below). Alternative installations may also be acceptable; consultation with Bowman should be made prior to installation. b) It is very important that the secondary circuit is fully vented via the vent plug fitted in order to prevent any aeration taking place which can cause erosion of the tubes. -
Page 7: Connecting The Heat Exchanger
When fitting the heat exchanger into the pipe work care must be taken to ensure that no debris has been introduced into the primary or secondary circuit of the heat exchanger. take care See Exhaust Gas Heat Exchanger brochure (available on the Bowman website) for connection details of each model. 3 Operation... -
Page 8: Maintenance / Repair
® For full warranty terms, please see the BOWMAN Conditions of Sale. A copy of which is available on request or via download from the website. -
Page 9: Performance
6-32-3741-5 10.5 6-40-3741-6 10.5 6-60-3741-8 10.5 8-32-3742-5 18.7 8-40-3742-6 18.7 8-60-3742-8 18.7 10-32-3744-5 10-40-3743-6 10-60-3743-8 12-32-3744-5 12-40-3744-6 12-60-3744-8 15-40-5745-6 15-60-5745-8 E.J. Bowman (Birmingham) Ltd, reserve the right to change specification and technical alteration without prior notice. Iss A 05/14... -
Page 10: Spare Parts List
8 Spare Parts List Exhaust Gas Heat Exchangers with Straight End Covers Inlet End Cover Outlet End Cover Pressure Relief Valve Mounting Foot End Cover Gasket Type 2-3737 EX002-3757CI EX032-4057CI 4028 4476 3787 3-3738 EX003-3758CI EX033-4058CI 4028 4477 3788 4-3739 EX004-3759CI EX034-4059CI 4028... - Page 11 Exhaust Gas Heat Exchanger webpage: - http://www.ejbowman.co.uk/products/ExhaustGasHeatExchangers.htm Bowman products can also be found in the following industries: - Hydraulic Cooling Engine Test House Cooling Mining Industry Marine Cooling Swimming Pool & Spa Industry Fishing Industry Cooling The product range includes: -...
