BOWMAN MINI GAME TRAILER Instructions

01
MINI GAME TRAILER
Key Points:
Check your contents
•
Read thoroughly before
•
attempting to assemble or
operate.
Do not attempt to fit the battery
•
until all three assembly tasks
have been completed!

Check Contents

Having moved the protective card from around the clay pigeon trap checks its contents to ensure they are all
present. You should have included:
•
2 x Supermatch 1 traps
•
2 x yellow safety rings
•
Quad Barrow
•
DTL wobble base
Positioning and fixing clay
pigeon trap
Attach the DTL base centrally onto the quad
barrow securing with 4 x 10mm bolts provided.
Attach the long bar which the traps will
eventually sit on, onto the DTL base with 4 x
10mm bolts, one of which is countersunk. You
may need to oscillate the base by connecting
it to a battery to fit the countersunk bolt.
Finally fit each trap in position at either end of
the bar by using 4 x 10mm bolts provided.

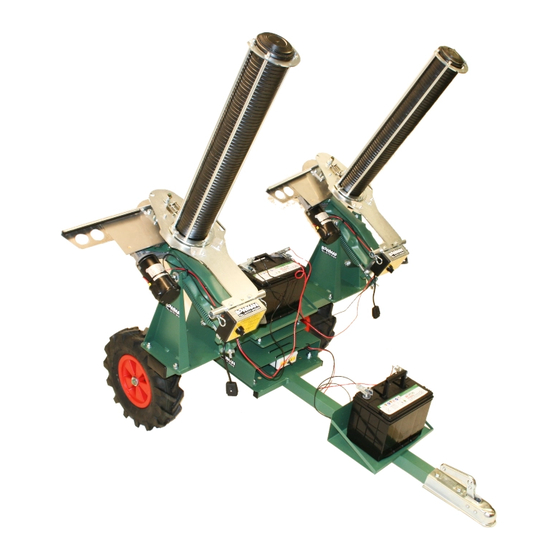

Your mini game trailer should look like the one
pictured when assembled.
INSTRUCTIONS
Think! Safety First!
These machines can cause serious injury, read these
instructions prior to assembly and use.
If you are missing any contents, are unsure or concerned
about the use of your clay pigeon trap then please don't
hesitate to call bowman's directly on 01777 870243.
Tools Required: 2 x 17mm spanners & wire cutters /
scissors.
2 x standard clay hoppers and 2 x midi clay hoppers
Radio release - Mini Game trailer Flush System (if purchased)
2 x small bag containing spare brush & spare twin spring rubbers
