Key Points:
Check your contents
•
Read thoroughly before
•
attempting to assemble or
operate.
Do not attempt to fit the battery
•
until all three assembly tasks
have been completed!
WJ Bowman
High Street East Markham
Nottinghamshire NG220RE
01777 870243
www.bowmantraps.co.uk
@bowmantraps
Thank you for your purchase, please call if you need any help or advice. Your support online would be
much appreciated. Kind Regards Andrew Davidson Managing Director of WJ Bowman (1884) LTD.
Check Contents
Having moved the protective card from around the clay pigeon trap, check its contents to ensure they are
all present. You should have included:
•

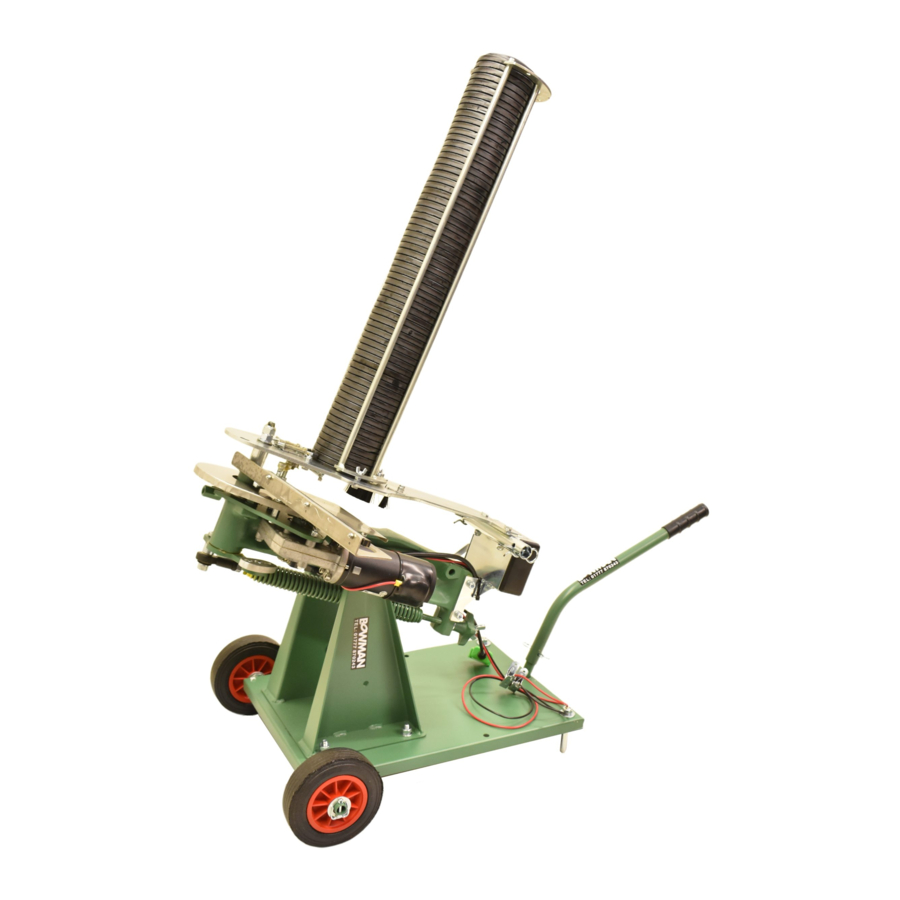

1 x Trap fixed to a pallet
•
1 x Safety Ring
•
1 x Coil of 50m cable and button unit / or wireless radio remote (if purchased)
•
Bowman barrow (if purchased with the trap)
Positioning and fixing clay pigeon trap
Your clay pigeon trap can be fixed onto and operated from a pallet however, we could recommend a more
permanent bolted position or a Bowman barrow. If you have purchased a barrow position the trap onto the
barrow and line up the 3 bolt holes. Use the 12mm bolts provided to secure your trap to the barrow. A
washer should be placed on either side, a spring washer goes on before the nut to secure.
SUPERMATCH SPORTING
DOUBLE
INSTRUCTIONS
Think! Safety First!
These machines can cause serious injury, please read
instructions prior to assembly and use.
If you are missing any contents, are unsure or concerned
about the use of your clay pigeon trap don't hesitate to call
Bowman's directly on 01777 870243.
Tools Required: 1 x 17mm spanner, 2 x 19mm spanners &
wire cutters / scissors.
