Communication Ports
The RUGGEDCOM M2100F can be equipped with various types of communication
ports to enhance its abilities and performance.
Module Assignment
Figure 4.1

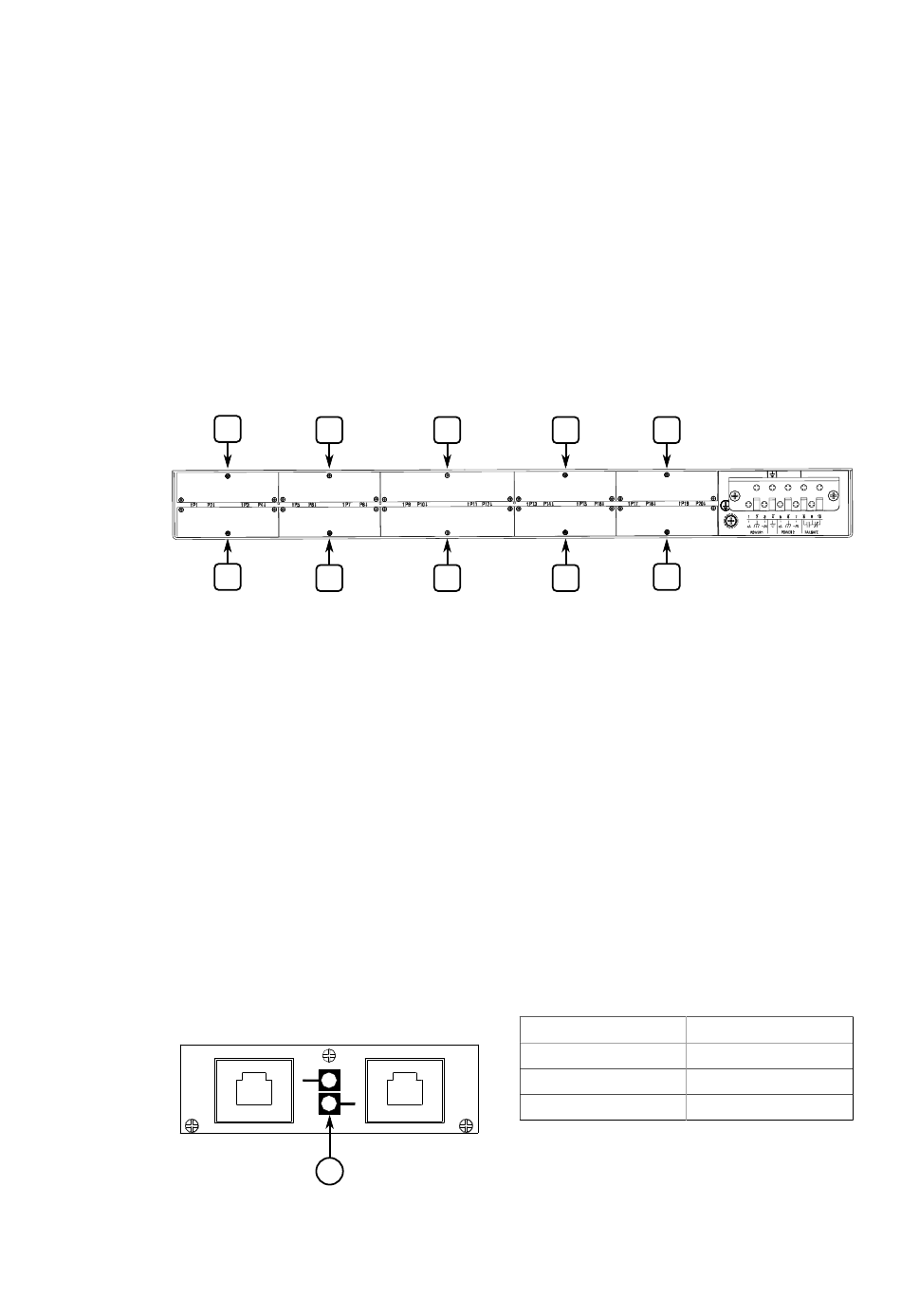

Each type of module has a specific location in the RUGGEDCOM M2100F chassis:
•
•
•
The exact configuration of the device can be determined by reading the factory
data file through the RUGGEDCOM M2100F user interface. For more information
about how to read the factory data file, refer to the RUGGEDCOM ROS Configuration
Manual for the RUGGEDCOM M2100F.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM M2100F
Installation Manual, 04/2021, C79000-G8976-1342-08
1
3
2
4
Module Assignment
Slot 5 supports a pair of Gigabit Ethernet (1 Gbps) ports
Slot 6 supports a single Gigabit Ethernet (1 Gbps) port
All other ports support any combination of fiber or copper Ethernet connectors
up to 100 Mbps
1
5
7
6
8
LED State
Yellow (Solid)
Yellow (Blinking)
Off
4
9
10
Description
Link established
Link activity
No link detected
