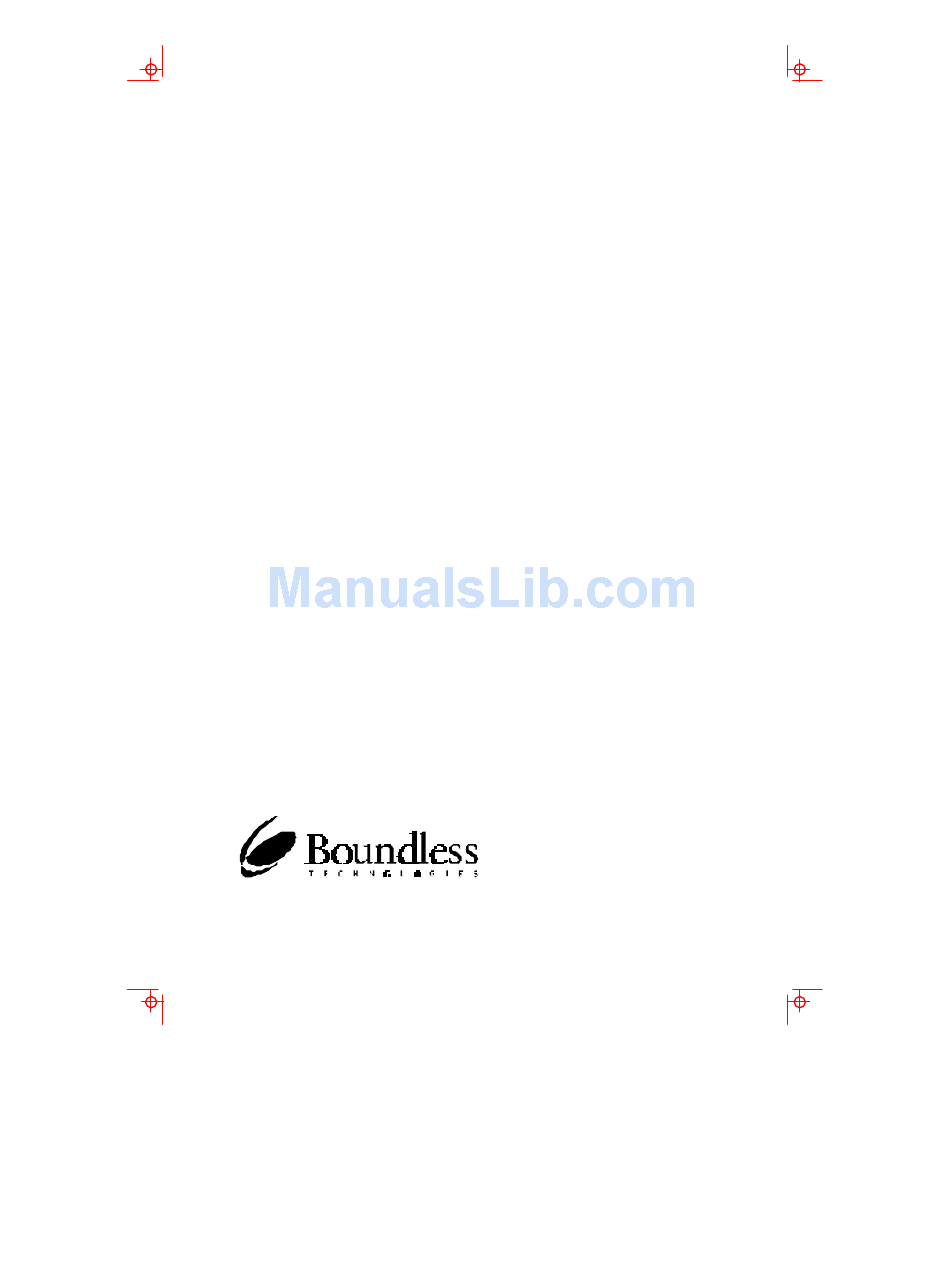

  • Page 1 4000/160 User’s Guide...
  • Page 2 Before using this information and the product it supports, be sure to read the general information under “Notices.” It is the policy of Boundless Technologies, Inc. to improve products as new technology, components, software, and firmware become available. Boundless Technologies, therefore, reserves the right to change specifications without prior notice.
  • Page 3 How to Connect/Disconnect the Terminal All rights reserved. Printed in USA...

  • Page 5: This Guide

    This guide... is a user’s manual and contains all of the information necessary to install, setup, and use the 160 product. More detailed information on programming using control codes and escape sequences, default strings and character sets, international language support, etc. can be obtained by calling: USA and Canada calls .

  • Page 7: Table Of Contents

    Contents Preface How to Connect/Disconnect the Terminal...vi Notices...vii Trademarks and Service Marks...vii Electronic Emission Notices...ix Safety Notices ...xii Introduction Features...2 Compatibility...2 Display...2 Character Sets ...2 Communications...3 Keyboards...3 Desk Accessories ...3 Physical Features...4 Keyboards...5 Usage Notes...7 Communications...8 Receive Flow Control ...8 Transmit Flow Control...9 Host/Printer Port 1 ...10...
  • Page 8 ii Contents Host/Printer Port 2 ... 10 Parallel Printer Port... 11 Terminal to Modem (DCE) or Host... 12 Terminal to Host (DTE) or Printer ... 12 Screen Display and Pages... 13 Bottom Status/Label Line Display... 13 Visual Effects of Screen and Page Lengths... 14 Installation STEP 1 –...
  • Page 9 Saving Parameters ...26 Movement Inside Menus ...27 Action Fields ...27 Setup Map...28 QUICK: F1...30 GENERAL: F2...32 DISPLAY: F3...34 KEYBOARD: F4 ...36 KEYS: F5...38 PORTS: F6...42 HOST: F7 ...44 PRINT: F8...45 EMULATION: F9 ...46 ASCII Emulations...46 ANSI Emulations...48 TABS: F10 ...49 ANSWERBACK: F11...50 PROGRAM: F12...51 EXECUT E: Prnt Scrn...53...
  • Page 10 iv Contents Clock... 57 Calculator... 59 ASCII Chart... 60 Diagnostic Menu ... 61 Appendix Local Keys... 63 Page Configurations... 66...

  • Page 11: Preface

    EU Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Boundless Technologies cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the...

  • Page 12: How To Connect/Disconnect The Terminal

    Preface How to Connect/Disconnect the Terminal To Connect: First, turn everything OFF. Attach all cables to devices. Attach signal cables to receptacles. Attach power cord to outlet. Turn device ON. To Disconnect: First, turn everything OFF. Remove power cord from outlet. Remove signal cables from receptacles.

  • Page 13: Notices

    Notices References in this publication to Boundless Technologies products, programs, or services do not imply that Boundless Technologies intends to ma ke these available to all countries in which Boundless Technologies operates. Any reference to an...
  • Page 14 Preface DEC VT320/220/100 Digital Equipment Corporation International Business Machines Corporation MENTOR Boundless Technologies, Inc. Santa Cruz Operations, Inc. TVI 925 TeleVideo Systems, Inc. Underwriters Laboratories Inc. WYSE Wyse Technology Inc. WYSE 50/50+/60/120/150 Wyse Technology Inc.

  • Page 15: Electronic Emission Notices

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Boundless Technologies is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 16 Preface que prescrites par le Règlement sur le brouillage radioélectrique établi par le ministère des Communications du Canada.
  • Page 17 Electronic Emission Notices Japanese Voluntary Control Council for Interference (VCCI) Statement This equipment is Class 1 Equipment (information equipment to be used in commercial and industrial districts) which is in conformance with the standard set by Voluntary Control for Interference by Data Processing Equipment and Electronic Office Machines (VCCI) with an aim to prevent radio interference in commercial and industrial districts.

  • Page 18: Safety Notices

    Preface Safety Notices Danger Notices A danger notice indicates a hazard that could possibly cause death or serious personal injury. The following danger notices are used throughout this manual. DANGER: To prevent a possible electrical shock when installing the device, ensure that the power cord for that device is unplugged before installing signal cables.

  • Page 19: Warning Notice

    DANGER: Electrical current from power, telephone, and communication cables is hazardous. To avoid shock hazard, connect and disconnect cables as shown on the following page when installing, moving, or opening the covers of this product or attached devices. DANGER: The device’s switch is not the main disconnect. The device’s main power disconnect is the detachable line cord.

  • Page 20: Introduction

    chapter border which can provide bezel-to-bezel video. This terminal also features an easy-to-use Setup menu that is configuration dependent—only the options that are valid for a given emulation or hardware configuration are presented. Setup also has a “Quick” menu that summarizes the options most critical to the operation of the terminal.

  • Page 21: Features

    2 Introduction Features Compatibility ADDS-Viewpoint™ Wyse™ 60, Wyse 50/50+ DEC™ VT-320, VT-220, VT-100 PC Terminal TVI™-925 Display 100 Hz refresh rate (flicker-free) Selectable overscan borders Selectable screen saver 26, 30, 44, or 52 row display with top and bottom status lines 80 or 132 column display Double high/double wide display Up to 4 pages of memory...

  • Page 22: Communications

    Communications Serial RS -232-C host/printer port 1, operating from 110 to 134,400 baud Serial RS -232-C host/printer port 2, operating from 110 to 38,400 baud Parallel IBM™/Centronics™ compatible printer port Keyboards EPC 101/102-key keyboard for use in the US and Internationally ANSI (VT220 style) keyboard PC/+ 106/107-key keyboard for use in the US and...

  • Page 23: Physical Features

    4 Introduction Physical Features Keyboard Connector – push in the keyboard connector here. Tilt and Swivel Base – use the tilt and swivel arrangement to adjust the viewing angle. Grasp the lower corners of the terminal and push up or down, or twist left or right. Power Switch –...
  • Page 24 Physical Features 5 Host Port – connect the cable from the host here. See the Installation chapter for options.

  • Page 25: Keyboards

    6 Introduction Keyboards The “PC” keyboards, including the EPC (101-key) and the PC/+ (106/107-key), are similar in style and feature a number of key groups. The alphanumeric keypad is the main typewriter keypad, while the function key group lies along the top of the keyboard and can be programmed locally or downloaded from the host.
  • Page 26 F 10 & " Cap s Lo ck < > Shif t Ct rl 102-key EPC Keyboard - International 106-key PC/+ Keyboard - U.S. ANSI Keyboard Keyboards 7 Cap s Scro ll Nu m Caps Sc roll F1 1 F1 2 Prin t Scr oll Pa use...

  • Page 27: Usage Notes

    8 Introduction Usage Notes The following notations and symbols are used in this manual: Ctrl-F1: the two keys, Ctrl and F1, are to be pressed simultaneously. Ctrl, F1: the two keys, Ctrl and F1, are to be pressed in succession. 1-num or 1-alph: specifies that the number must be generated either from the numeric or alphanumeric keypads.

  • Page 28: Communications

    Communications Communications This terminal is equipped with three ports. The two serial ports are intended for connecting to either a host/modem or a serial printer. The remaining port is a Centronics-compatible printer port. The port you use as the printer port depends on whether you have a serial or a parallel interface to the printer.

  • Page 29: Transmit Flow Control

    10 Introduction If the “EIA (or Aux) Rcv” is “No Protocol” in Setup, the terminal will continue to accept characters into its receive buffer until it is full. Additional characters will be lost. Xon-Xoff protocol must also be set on the host computer or printer for proper handshaking.

  • Page 30: Host/Printer Port 1

    Communications For parallel printers, this terminal monitors the BUSY and ERROR signals which are sent by the printer to determine when data transmission should be stopped or resumed. Host/Printer Port 1 This port, labeled “SES1-EIA,” is designed for connection to the host (computer or modem) or a serial printer via a 25-pin D-shell (DB25P) female connector.
  • Page 31 12 Introduction Host/Printer Port 2 Pin Assignments Refer to the Installation chapter for details on the connection of all ports to serial devices (hosts, modems, or printers).

  • Page 32: Parallel Printer Port

    Parallel Printer Port This port, labeled “PAR,” is designed for connection to a parallel printer, which has a Centronics interface with a 25-pin D-shell female connector. This port, unlike the others, is a uni- directional device —it only serves to output data to the printer and cannot receive data.

  • Page 33: Terminal To Modem (Dce) Or Host

    14 Introduction Terminal to Modem (DCE) or Host Refer to the diagram below to understand why a null modem adapter may be needed when connecting the second serial port (SES2-AUX) to a modem or a DCE host. The first serial port will connect directly without a null modem since it is a DTE device.

  • Page 34: Screen Display And Pages 15

    Screen Display and Pages 15 Screen Display and Pages This terminal offers a variety of screen lengths including 26, 30, 44, or 52 lines. These numbers include the top and bottom status lines (or label line), as well as the lines used to display data.

  • Page 35: Visual Effects Of Screen And Page Lengths

    16 Introduction The figure below represents the entire page memory of a 48 line page (24 base page length times a multiplier of 2) and the portion of the page that is viewable on the display screen, when “26 Lines” is selected. Notice that the label line is visible in this mode.
  • Page 36 Screen Display and Pages 17 row, the bottom row of text is lost (if Auto Scroll is “on” in Setup). Note that text scrolled off the screen is not recoverable.
  • Page 37 18 Introduction If the current page or portion of the page is longer than the screen display or window in which it is displayed, local keystrokes can be used to “pan” the window up or down (Ctrl- and Ctrl- ). As a window is panned up, the page appears to be moving down;...
  • Page 38 Screen Display and Pages 19 This page is intentionally left blank.

  • Page 39: Installation

    chapter Installation This section provides a “walk-through” approach to the installation of your terminal. This will enable you to physically connect the terminal to a printer and a host computer/modem, as well as to configure the Setup menu to suit your requirements and preferences.

  • Page 40: Step 2 - Physical Connections

    18 Installation STEP 2 – Physical Connections Depending on the types of serial interfaces of your devices, you may need one or more “null modem” adapters to communicate properly. First, refer to the Common Setups diagrams later in this chapter. If one of these setups matches your needs, make the connections as shown in the diagrams by referring to the Host/Printer Connection.

  • Page 41: Step 5 - Communications Setup Selections

    STEP 5 – Communications Setup Selections STEP 5 – Communications Setup Selections To complete this step, you must recall the le tters next to the connections that you made in Step 2. The procedures below correspond directly to the individual connections made.

  • Page 42: Connection C: Rs-232 With Modem

    20 Installation Check, Aux Recv, and Aux Xmt. See the Setup chapter for more information on the individual settings. Connection C: RS-232 with Modem Follow all procedures of Connection A, steps 1 through 3. If you are connecting to a modem, set the “EIA Modem Control”...

  • Page 43: Step 8 - Emulation Setup Selection

    STEP 8 – Emulation Setup Selection This step requires setting a selection in the Setup menu to configure the “Emulation” of the terminal. Determine which emulation your applications run with. Enter the Setup menu and set the “Emulation” parameter, in the Quick (F1) menu, to match your requirements.
  • Page 44 22 Installation the Setup selections are chosen to provide a proper interface between the terminal and your devices. If you continue to have problems installing the terminal, call your local dealer for technical support.

  • Page 45: Host/Printer Connection Guide

    Host/Printer Connection Guide CAUTION: Do not (un)plug in electrical storm. SES1-EIA (DTE) DTE Host* Connection A: Connection B: Connect a null Connect the host modem adapter cable directly to between the host the AUX port. cable and the EIA port. DCE Host or Modem Connection D:...
  • Page 46 24 Installation Mentor ® System is an example of a DCE host system. SES1-EIA (DTE) DTE Serial Printer** Connection E: Connection F: Connect a null Connect the serial modem adapter printer cable between the serial directly to the printer cable and AUX port.

  • Page 47: Common Setups

    ** Most serial printers are configured as DTE devices. Common Setups Sessions=One Host/Printer =Aux/Para Aux Baud, Data Format, etc. matches the host Common Setups 25 SERIAL PRINTER Sessions=One Host/Printer =EIA/Aux EIA Baud, etc. matches the host Aux Baud, etc. matches the printer EIA Modem Control=On...

  • Page 48: User Settings

    26 Installation User Settings Use the chart below to document your system and terminal settings: Parameters Examples: Connections made C and H Host/Printer EIA/Para Emulations ADDS-VP Host: Baud 9600 Data Bits Stop Bits Parity None Parity Check O f f Flow Control (In)* Xon-Xoff Flow Control (Out)**...

  • Page 49: Setup

    chapter Setup The Setup menu is your control panel for this terminal. It permits you to configure the terminal to communicate with the host computer as well as to suit your personal preferences. Overview The Setup menus have been designed to allow maximum flexibility with a minimum investment of time.

  • Page 50: Entry And Exit

    26 Setup Entry and Exit EPC Keyboard: Press Ctrl-Scroll Lock to both enter and exit setup. Also, press F14 or Pause to exit. ANSI Keyboard: entry is dependent upon the Setup selections: When “F1 to F5 keys” = Local, press F1 to enter. þ...

  • Page 51: Movement Inside Menus

    Movement Inside Menus F1 through F12: Select the menu that corresponds to the function key. Depending on your keyboard, there will be another key, either F13 or the Print Screen key (on the EPC keyboard) available to access the “EXEC” menu. These keys are always active within Setup.

  • Page 52: Setup Map

    28 Setup will appear. These messages are cleared when the selection bar is placed on another parameter. Setup Map Menu Parameters Available (Not all will display for a given emulation, keyboard, or video mode) Emulation Quick Enhanced Host/Printer Emulation General Auto Font Load Monitor Mode Warning Bell...
  • Page 53 Setup Map 29 Return Key Repeat F1 to F5 keys Disconnect .. and ,, key and ~ <> key UDKs...
  • Page 54 EIA Baud Rate Ports Aux Baud Rate EIA Xmt Aux Xmit EIA Break Aux Break Comm Mode Host Recv <DEL> Send Block Term Null Suppress Prnt Line Term Print Prnt Mode Attribute Emulation Page Edit WPRT Underline Save Labels Fkey Speed Numeric Kpd Emulation Print...

  • Page 55: Quick: F1

    31 Setup QUICK: F1 Emulation=Wyse-60 Comm Mode = Full Duplex Aux Baud Rate = 9600 Enhanced = On Aux Da ta Form at = 8/1/N Language = U.S. Host/P rinter = EI A/Para Wyse-60 ADD-VP Wyse -50+ PC-Term VT-200-7 VT-200-8 VT-100 Emulation: [ADDS VP, Wyse 60, Wyse 50+, PC Term, TVI 925, VT300/8, VT300/7, VT200/8, VT200/7, VT100]...
  • Page 56 32 Setup AUX Baud Rate: [38400, 19200, 9600, 4800, 2400, 2000, 1800, 1200, 600, 300, 150, 134.5, 110] The speed at which the secondary host or printer expects to communicate.
  • Page 57 Enhanced: [On, Off] Normally, the terminal responds to a set of commands that correspond to the emulation selected. When Enhanced mode is on, the set of commands is extended to those printed in boldface in the programming chapter. EIA Data Format: [7/1/N, 7/1/O, 7/1/E, 7/1/M, 7/1/S, 7/2/N, 7/2/O, 7/2/E, 7/2/M, 7/2/S, 8/1/N, 8/1/O, 8/1/E, 8/1/M, 8/1/S, 8/2/N, 8/2/O, 8/2/E, 8/2/M, 8/2/S] Select a data bits/stop bits/parity combination which matches the data format of the primary host or printer.

  • Page 58: General: F2

    34 Setup GENERAL: F2 This chapter lists all possible parameters for each menu, and all possible choices for each parameter. Depending on the emulation selected, and the key mode (ASCII or ScanCode), Setup will only present the valid set of parameters and choices in each menu.
  • Page 59 GENERAL: F2 35 Choose whether control codes will be displayed as their graphic representations or be acted upon as terminal/cursor commands.
  • Page 60 36 Setup Screen Saver: [Off, 2 min, 5 min, 15 min, 30 min] Select whether the screen will go blank after lack of activity from the keyboard or the host of the selected period of time. The first key typed at the keyboard when the screen is blank will reactivate the display.

  • Page 61: Display: F3

    DISPLAY: F3 37 DISPLAY: F3 Page Length: [24, 25, 42, 43, 48, 50, 84, 86, 96, *24, *25, *42, *43] Select the number of lines per page. As many as four pages (0-3) may be available, but the number of pages in memory depends on the number of lines per page and whether 80-Only is selected for columns.
  • Page 62 38 Setup Columns: [80, 132, 80-Only] Choose the number of columns that the screen can display. 80-Only provides more pages in memory for a given page length by disallowing changes to 132-column display. Width Change Clear: [On, Off] Select whether the screen is to be cleared when the number of columns on the screen is changed from 80 to 132 or vice versa.

  • Page 63: Keyboard: F4

    KEYBOARD: F4 Language: [U.S., U.K., Danish, Finnish, French, German, Norwegian, Portuguese, Spanish, Swedish, Dutch, Belgian-Flemish, Fr-Canadian, Italian, Latin American, Swiss-French, Swiss-German, Turkish] Select the language type which matches your keyboard’s layout. Language: [U.S., U.K., Danish, Dutch, Finnish, Belgian-Flemish, French, Fr-Canadian, German, Italian, Norwegian, Spanish, Swedish, Swiss-German, Swiss-French, Turkish] Select the language type which matches your keyboard’s layout.
  • Page 64 40 Setup choose the number of characters that are generated per second when a key is auto repeating.
  • Page 65 Keyboard Layout: [Q, F] This selection is only available when Turkish keyboard is selected. Q and F refer to the two Turkish keyboard layouts available. Q and F correspond to the top left key on the alphanumeric keypad. Margin Bell: [On, Off] Choose whether a bell tone sounds when the cursor is nine positions away from the right margin.
  • Page 66 42 Setup loaded for each code page, refer to the 260xx Programmer’s Reference Guide.

  • Page 67: Keys: F5

    KEYS: F5 Enter Key: [CR, CR-LF, TAB] Select the code the enter key in the numeric keypad transmits. Return Key: [CR, CR-LF, TAB] Select the code the return key on the main alphanumeric keypad transmits. Alt Key (left): [Meta, Compose, Funct, Scroll-Lock, Alt Key] Select the way in which the left ALT key (or the Compose key on the ANSI keyboard) behaves.
  • Page 68 44 Setup keyboard) to enter Setup. If Local Leadin is on, the Setup keystroke “introduces” the keystroke as local and then local functions can be generated using the keystrokes listed in Appendix A.
  • Page 69 For example, to enter Setup when ScanCode and Local Leadin are on, press Ctrl-Scroll Lock (Ctrl-Select on the ANSI keyboard) to introduce this as a local function (“LEAD” will appear in the status line), and then Ctrl-Scroll Lock (Ctrl-Select on the ANSI keyboard) to enter Setup.
  • Page 70 46 Setup The following selections apply only to the ANSI keyboard: Disconnect: [Disabled, Shift-F5] Choose to allow the keystroke that will generate a modem disconnect on the ANSI keyboard or to disable the Disconnect function. Note that if “F1 to F5 keys” is Fkey in Setup, the Disconnect function will be remapped to Ctrl-Shift-F5.
  • Page 71 KEYS: F5 47 /~ Key [` and ` or ESC] Select the characters sent by the tic/tilde key. Backspace: [BS/DEL, DEL/BS, DEL/CAN] Choose the codes sent by the key in the normal/shifted positions.

  • Page 72: Ports: F6

    48 Setup PORTS: F6 EIA Baud Rate: [134400, 115200, 76800, 57600, 38400, 19200, 9600, 4800, 2400, 2000, 1800, 1200, 600, 300, 150, 110] See the Quick menu earlier in this chapter. EIA Data Format: [7/1/N, 7/1/O, 7/1/E, 7/1/M, 7/1/S, 7/2/N, 7/2/O, 7/2/E, 7/2/M, 7/2/S, 8/1/N, 8/1/O, 8/1/E, 8/1/M, 8/1/S, 8/2/M, 8/2/N, 8/2/O, 8/2/E, 8/2/S] See the Quick menu earlier in this chapter.
  • Page 73 EIA (Aux) Xmit: [No Protocol, Xon-Xoff, DSR (DTR), Both] This is similar to “EIA (Aux) Recv,” except that it applies to the data transmitted from the terminal to the primary or secondary host or printer. DSR is the hardware signal for Data Set Ready (pin 6).

  • Page 74: Host: F7

    50 Setup HOST: F7 Comm Mode: [Full Duplex, Half Duplex, Full Block, Half Block] Select the communications mode. Half-duplex is not available when KeyMode is ScanCode. Receive <CR>: [<CR>, <CR><LF>] Select the way in which carriage returns received will be interpreted.
  • Page 75 HOST: F7 51 Select whether the end is indicated by the scroll region or by the cursor location. Send Region: [Screen, Scroll] Choose whether the terminal sends data from the entire screen or from the scrolling region.

  • Page 76: Print: F8

    52 Setup PRINT: F8 Print Mode: [Normal, Auto, Controller] Select the way in which printing is controlled. Normal indicates that printing is to occur when a print þ request (such as print screen) is received. Auto prints a line when the terminal receives a LF, a FF, or a þ...

  • Page 77: Emulation: F9

    EMULATION: F9 53 EMULATION: F9 The parameters displayed in this menu depend upon the current emulation. This section is divided between parameters for ASCII and ANSI emulations. ASCII Emulations Page Edit: [Off, On] When page edit is on, edit features such as insert act upon text to the end of the current page.
  • Page 78 54 Setup Attribute: [Char, Line, Page] Choose the extent to which attributes are propagated. (The only parallel ASCII emulations are PC Term and Wyse 60.)
  • Page 79 EMULATION: F9 55 Display NV Labels: [On, Off] Select whether the labels in non-volatile memory are displayed on the lowest line. When off is selected, any existing labels will remain on the screen, until on is selected, and they are re-displayed.

  • Page 80: Ansi Emulations

    56 Setup ANSI Emulations Numeric Kpd: [Numeric , Application] Choose the set of strings sent by the numeric keypad. Cursor Kpd: [Cursor , Application] Choose the set of strings sent by the cursor control keypad. Send Data: [All, Erasable] Choose whether the data sent to the host is all data (erasable and selectively erasable) or only those characters tagged as erasable.

  • Page 81: Tabs: F10

    Specify the way in which the status line is to be used: for host messages [host-write], as a cursor position indicator [indicator], for [both] or off. TABS: F10 Auto Init Tabs: [On, Off] When on, tab settings will always be defaulted at power up. Default Tabs: This action field sets tabs at every eighth column starting at column 9.

  • Page 82: Answerback: F11

    58 Setup ANSWERBACK: F11 Answerback Mode: [On, Off] Choose whether the answerback message (which is sent to the host at terminal reset or power up) mode is on. This can be used to log-in to the system. Answerback Conceal: This is an action parameter which displays “Concealed”...

  • Page 83: Program: F12

    PROGRAM: F12 59 PROGRAM: F12 Program: [F/Key, Sh-F/Key, Edit Key, Sh-Edit Key] Specify the type of key to be programmed—function or edit key in its normal or shifted state. When Fkey Speed is Fast in the EMUL (F9) menu, the Program options are F/Key and Sh-F/Key.
  • Page 84 60 Setup Shift-Backspace will restore the default. See the Edit Fields section or “Fkey Speed” in the Emulation section.
  • Page 85 Label: A label of up to 7 characters can be entered for function keys in ASCII emulations only. See “Display NV Labels” in the Emulation section. <Backspace> – delete þ <Shift> <Back> – default field þ Key: Select the key to be programmed. The keys that are listed as choices depend upon the Program parameter as shown below: When Program = F/Key or Sh-F/Key, the choices are þ...
  • Page 86 62 Setup field, press Ctrl-M or Ctrl-J, respectively. To program the “Print Screen” key to perform a local print þ screen (page) function: In the key text field, press Ctrl-[ and then P. Next, set the “Key Dir”=Screen option.

  • Page 87: Execute: Prnt Scrn

    EXECUTE: Prnt Scrn 63 EXECUTE: Prnt Scrn All of the parameters in this menu are action parameters. Terminal parameters affect all settings, including the emulation. Emulation choices affect only settings that relate to the chosen emulation. Save Terminal: Save all settings in non-volatile (permanent) memory, including those associated with the emulation selected.

  • Page 88: Edit Fields

    64 Setup Edit Fields Setup uses overwrite mode in text editing fields. That is, the cursor keys cannot be used to move to a location in the text to insert characters. Upon entry to a text field, the cursor is placed at the last text location.

  • Page 89: Emulation Parameters

    Alarm Time (12 PM), Tone (alarm/hourly), Calculator (printer off, tape on), and the row and column in which each accessory is displayed. Emulation Parameters Emulation Parameters are parameters that are specific to the emulation selected. These include three types of parameters: Setup-Edit keys, Setup, and Modes.

  • Page 90: Desk Accessories

    chapter Desk Accessories This terminal features five desk accessories, which can be accessed one at a time through pop-up windows. Overview Desk Accessory Menu To display this pop-up window to choose any of the five desk accessories, press Ctrl- Function keys F1-F5 are used to display the clock, calendar, calculator, ASCII chart, and diagnostic menu, respectively.

  • Page 91: Direct Access

    56 Desk Accessories Direct Access To display any desk accessory directly, without the desk accessory menu, the following keystrokes are used: Clock – press Ctrl-Shift-F1 þ Calendar – press Ctrl-Shift-F2 þ Calculator – press Ctrl-Shift-F3 þ ASCII Chart – press Ctrl-Shift-F4 þ...

  • Page 92: Calendar

    Calendar This displays a calendar for any month from the years 1900 to 2099. The current date is displayed at the bottom. The keys below control the calendar that is displayed: Right- and left-arrow keys – display an earlier or later þ...
  • Page 93 58 Desk Accessories Use the following keys to make changes: Up- or down-arrow keys – select a line. The line is þ highlighted. Left- or right-arrow keys – select a field on the chosen line. þ The selected field is n ow highlighted. Spacebar –...

  • Page 94: Clock 59

    Clock 59 Tone – how alarm tone(s) should be activated: every Hour, on the Alarm setting only, or both on the Alarm setting and Hourly. The alarm tone can also be turned Off.

  • Page 95: Calculator

    Calculator The numeric keypad located on the right side of your keyboard will serve as your calculator. See the figures below to relate the display to the keys on the numeric keypad that control it. The ANSI keyboard calculator display is identical to the ones shown below for the PC keyboard except that the controlling keys on the numeric keypad are different.

  • Page 96: Ascii Chart

    Calculator Display (EPC keyboard) In addition to the keys on the numeric keypad, you may use: T – toggle “tape” on/off. Results scroll above the display. þ P – toggle “printer” on/off. Results are transmitted onto the þ printer. Use the printer option only when a printer is connected. Press Ctrl-Shift-Tab to clear a printer error.
  • Page 97 ASCII Chart 61 Characters are also displayed in octal, hexadecimal, and binary number representations. The CHAR column contains the ASCII representation of the character.

  • Page 98: Diagnostic Menu

    62 Desk Accessories Use the following keys to change the display of the ASCII chart: Up- or down-arrow – scroll up or down the characters in the þ ASCII chart (0-127). Left- or right-arrow – scroll through the available font banks. þ...
  • Page 99 Diagnostic Menu 63 Note: T h is p age i s in ten tio n al ly left b l an k .

  • Page 100: Appendix

    Appendix Local Keys Scan Action Code PC Keyboard Mode Toggle Caps -Lock Lock Toggle Num -Lock Num -Lock Toggle Scroll-Lock Scroll-Lock Toggle Auto Print Ctrl-Print-Screen Toggle Block-Mode Ctrl-Shift-Pause Toggle Monitor Mode Ctrl-Shift-1\End Toggle Ins/Replace Ctrl-Insert Instant Screen Saver Ctrl-Shift-* Soft Reset Shift-Scroll Lock Hard Reset (Power On) Ctrl-Shift-Scroll...
  • Page 101 64 Appendix Continued Scan Action Code PC Keyboard Mode Increment Scroll Rate Ctrl-Shift- Decrement Scroll Rate Ctrl-Shift- Raise Split Ctrl- – (num) Lower Split Ctrl- , (num) Split-Full Toggle Ctrl-Shift- – (num) Roll-Window-Up Ctrl- Roll-Window-Down Ctrl- Change Status Line Ctrl- Home &...
  • Page 102 NOTES: See the Setup chapter. Keystrokes for these functions are operational only if Setup selection “F1 to F5 keys” = Local. The Compose key selection, in the F5 setup menu, must be equal to Alt. This function is operational only if EIA (Aux) Rcv-Prtcl = Xon-Xoff/XPC or DTR.

  • Page 103: Page Configurations

    66 Appendix Page Configurations Lines per Page 80/132 2 (24/32) 2 (25/31) When a page length (in the first column) is preceded by an asterisk (*), a total of two pages will be available. The first page contains the selected number of lines and the second page contains the remaining allowable lines in memory.

  • Page 104: Note To Installer

    NOTE TO INSTALLER This equipment complies with the FCC Regulation for Class A devices, Subpart J of Part 15. Shielded, grounded interface cables were used on all ports for FCC radiated emission testing. The manufacturer is not responsible for any violation of the FCC Regulation for Class A devices that is caused by unauthorized modification of the equipment, or caused by equipment installation not in accordance with the instructions in this manual.
  • Page 105 Examples of display distortion include: Shaky video þ Wavy lines þ Tilted display þ This magnetic field interaction only occurs over a very short distance, normally less than twelve inches, and can be corrected by separating the equipme nt and/or slightly reorienting the display.

  • Page 107: Technical Support

    Support Department directly. You will be required to provide the name of your distributor, and a description of the problem as described above. Please refer to the Boundless Technologies Guide to Support Services which was packaged with the terminal. Boundless Technologies can be reached at: Boundless Technologies, Inc.
