Summary of Contents for Boundless ADDS 4000/260 LF

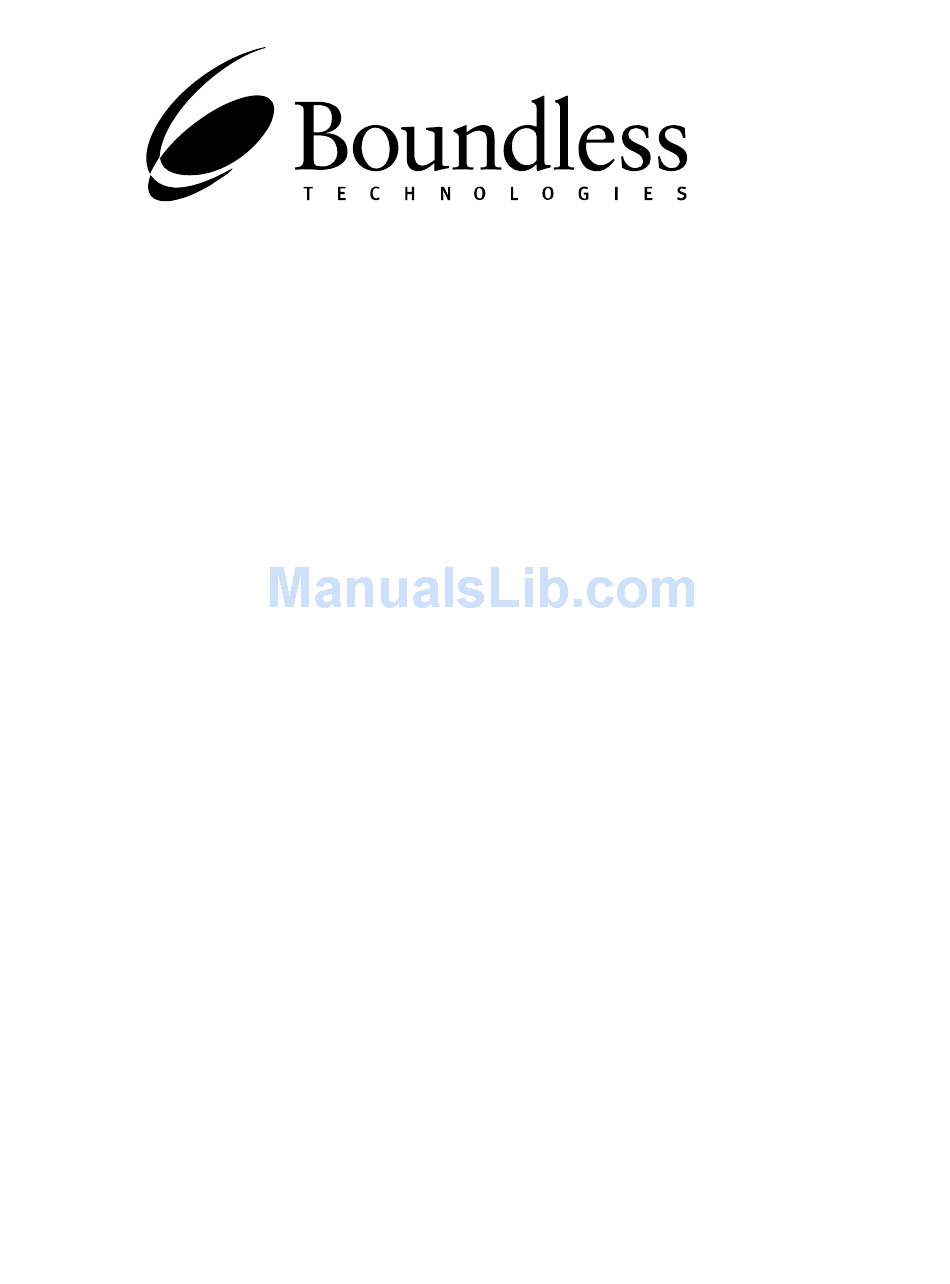

- Page 1 4000/260 LF 4000/260 LFC Monochrome and Color Terminals User’s Guide 598-0011148...
- Page 2 Boundless Technologies, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by Boundless Technologies in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult your Boundless Technologies representative or Boundless Technologies office for information that is applicable and current.
-
Page 3: This Guide
More detailed information on programming using control codes and escape sequences, default strings and character sets, international language support, etc. can be obtained by calling the Boundless Technologies Hotline at: USA and Canada calls ..1-800-231-5445 International calls . -
Page 4: Table Of Contents
Contents Preface How to Connect/Disconnect the Terminal ...iv Notices ...iv Trademarks and Service Marks ... v Electronic Emission Notices ... v Safety Notices ...vi Introduction Features ... 2 Vertical Mount: ... 3 Under-Desk Mount: ... 3 Wall Mount:... 4 Physical Features ... 5 Keyboards ... - Page 5 Entry And Exit... 23 Printing ... 23 Saving Parameters ... 23 Movement Inside Menus ... 24 Action Fields ... 24 Dual Session Mode... 24 Setup Map ... 25 Quick: F1 ... 27 General: F2 ... 28 Display: F3 ... 29 Keyboard: F4 ...
-
Page 6: Preface
Member States relating to electromagnetic compatibility. Boundless Technologies cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non- Boundless Technologies option cards. -
Page 7: Notices
Boundless Technologies intends to make these available to all countries in which Boundless Technologies operates. Any reference to an Boundless Technologies product, program, or service is not intended to state or imply that only Boundless Technologies product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any of Boundless Technologies’... -
Page 8: Trademarks And Service Marks
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Boundless Technologies is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. -
Page 9: Safety Notices
Safety Notices Danger Notices A danger notice indicates a hazard that could possibly cause death or serious personal injury. The following danger notices are used throughout this manual. DANGER: To prevent a possible electrical shock when installing the device, ensure that the power cord for that device is unplugged before installing signal cables. -
Page 10: Introduction
TSafety Notices chapter Introduction This guide contains information on all areas of the 260lf product. However, not all 260lf terminals are equipped with all the features in this publication (i.e. the descriptions of color features do not apply to the monochrome product). -
Page 11: Features
Features Personality: ADDS-Viewpoint™ (ASCII emulation) • Wyse™60, Wyse 50/50+ (ASCII emulation) • • DEC™ VT-320, VT-220, VT-100 (ANSI Emulation) PC Terminal (PC Term) • SCO-Console (ANSI Emulation) • AT386 (ANSI Emulation) • TVI925 (ASCII emulation) • Intercolor (ANSI Emulation) • Wyse 325, Wyse 350 (ASCII emulation) •... -
Page 12: Vertical Mount
Vertical Mount: Insert the tabs into the corresponding slots as shown (left). While applying pressure on the bracket, slide the bracket toward the front of the of logic unit until it clicks into place. Under-Desk Mount: Ensure that the bracket is securely fastened under the desk in the position shown. You may use the wood screws supplied with the bracket if the mounting surface is particle board or wood. -
Page 13: Wall Mount
Wall Mount: Ensure that the bracket is securely fastened to the wall in the position shown. You may use the wood screws supplied with the bracket if the mounting surface is particle board or wood. Position the logic unit on the bracket by directing the slots in the unit around the tabs on the bracket. While pressing the logic unit towards the wall, slide the unit downwards until it clicks into place. -
Page 14: Physical Features
Physical Features Power Switch - press the orange button to its recessed position to turn the unit “on.” Press again to turn the unit “off.” Leave the terminal’s power switch (1) in the off position “0" until power and keyboard connections are made The Canadian Standards Association (CSA) recommends that the power outlet be near the terminal and easily accessible at all times. -
Page 15: Keyboards
Keyboards The monochrome terminal supports only the “PC-style” keyboards which include the PC 101/102-key and Compact PC 101-key keyboard. The color terminal supports two styles of keyboards: “PC-style” and “ANSI-style” keyboards. The keyboard layout is divided into functional key groups (as described below). The ANSI - style keyboard differs from the PC-style keyboard mainly in that it features 20 function keys, a set of PF-keys, and a different style numeric keypad. -
Page 16: Display Fields
ANSI Keyboard Display Fields The screen display shown below is a snapshot of the terminal’s screen in an ASCII emulation. The top line of the display is referred to as the Top Status Line. The Top Status Line can be disabled if desired. -
Page 17: Usage Notes
Usage Notes The following notations and symbols are used in this manual: Ctrl-F1: the two keys, Ctrl and F1, are to be pressed simultaneously. Ctrl, F1: the two keys, Ctrl and F1, are to be pressed in succession. 1-num or 1-alph: specifies that the number must be generated either from the numeric or alphanumeric keypads. -
Page 18: Communications
Communications This terminal is equipped with three communications ports. The two serial ports are intended for connection to either a host (or modem), an alternate input device such as a scanner, or a serial printer. (The EIA port has both an RJ45 and a DB25 interface;... -
Page 19: Host/Printer Port 1 (Rj45)
Refer to the Installation chapter for details on the connection of the DB25 EIA port or the RJ45 EIA port to serial devices (hosts, modems, or printers). The optional RS-422 and current loop communications interface is only available for this DB25 EIA port. Host/Printer Port 1 (RJ45) This port, labeled “EIA,”... -
Page 20: Host/Printer Port 2
Host/Printer Port 2 This port, labeled “Aux,” is designed to connect to a second host connection (computer or modem), a scanner or other input device, or a serial printer, and can operate from 110 to 38,400 baud. This port also uses an RS-232- C interface via an RJ45 female connector and is configured as a DCE device. -
Page 21: Terminal To Modem (Or Dce Host)
Terminal To Modem (or DCE Host) Refer to the diagram below to understand why a null modem adapter may be needed when connecting the AUX serial port to a modem or a DCE host. The EIA port will connect directly without a null modem since it is a DTE device. -
Page 22: Screen Display And Pages
Screen Display And Pages This terminal offers a variety of screen lengths including 26, 44, or 49 lines. These numbers include the top and bottom status lines (or label line), as well as the lines used to display data. A “page” of terminal memory represents the total number of lines that can be accessed, whether or not they are all viewable on the screen at once. -
Page 23: Visual Effects Of Screen And Page Lengths
Visual Effects Of Screen And Page Lengths The combination of page and screen lengths influence the number of displayable data lines. For example, if the page length is “50" (25 x 2), and the screen length is 44 lines, the number of data lines that are visible at any one time is 43, with no label line. -
Page 24: Installation
chapter Installation This section provides a “walk-through” approach to the installation of your terminal. This will enable you to physically connect the terminal to a printer, one or two host computers/modems, scanner or another input device. If necessary, you will also be able to configure the Setup menu to suit your requirements and preferences. -
Page 25: Step 4 - No Printer Option
Step 4 - No Printer Option If you did not opt to install a printer (do not complete steps 9E, 9F, 9G, or 9H), you must set the Printer portion of the Host/Printer selection in the Quick (F1) Setup menu to “None.” Choose the combination of Host/Printer that properly represents which terminal port you are connecting the host to, and “None”... -
Page 26: Connection B - Dte Host On Aux
In the Setup Quick (F1) menu, set the Host portion of the “Host/Printer” selection to EIA, without changing the current Printer option (“EIA/xxxx”). The Printer will be set in another connection procedure if needed. In the Ports (F6) menu, set the proper communications settings for the EIA Baud, EIA Data Format, EIA Parity Check, EIA Recv, and EIA Xmt selections. -
Page 27: Step 12 - Save Parameters
Step 12 - Save Parameters Finally, remember to save your Setup parameters in permanent memory, so that they can be recovered if the terminal is powered down. When you exit the Setup menu, the prompt “Save all? (Y/N)” flashes. To save parameters, press “Y.”... -
Page 28: Host/Printer Connection Guide
Host/Printer Connection Guide CAUTION: Do not (un)plug in electrical storm. SES1-EIA (DTE) SES2-AUX (DCE) DTE Host* Connection B: Connection A: Connect a null Connect the host modem adapter cable directly to the AUX port. between the host cable and the EIA port. - Page 29 SES1-EIA (DTE) SES2-AUX (DCE) DTE Serial Printer** Connection E: Connection F: Connect the serial Connect a null modem adapter printer cable between the serial directly to the AUX port. printer cable and the EIA port. Parallel Printer (Centronics IBM) Not applicable. Not applicable.
-
Page 30: Common Setups
Common Setups Sessions=One Host/Printer=EIA/Para Aux Baud, Aux Data Format, etc. matches the host, and aux. device. Alt Input Data=On * The Aux port can be configured as a DTE device or a null modem can be used. Sessions=Two Session1 Host/Printer=EIA/Para Session2 Host Printer=Aux/None EIA Baud , etc. -
Page 31: User Settings
User Settings Use the chart below to document your system and terminal settings: Parameters Examples: Number of sessions Host/Printer (Session 1)* Host/Printer (Session 1)* Emulations (Session 1) Emulations (Session 2) Host 1: Baud Data Bits Stop Bits Parity Parity Check Flow Control (In)** Flow Control (Out)*** Modem Control... -
Page 32: Setup
chapter Setup The Setup menu is your control panel for this terminal. It permits you to configure the terminal to communicate with the host computer as well as to suit your personal preferences. Overview The Setup menus have been designed to allow maximum flexibility with a minimum investment of time. Thirteen menus provide you with the flexibility and the features below contribute to ease of use: The Quick menu is the first screen upon entry. -
Page 33: Movement Inside Menus
An exception to this is function/edit key and answerback message programming. Once edited in Setup, the changes are saved regardless of the way in which you exit Setup. Movement Inside Menus F1 through F12 - Select the menu that corresponds to the function key. The Print Scrn key is available to access the “EXEC”... -
Page 34: Setup Map
Setup Map Menu (Not all will display for a given emulation, keyboard, or video mode) Quick Emulation Aux Baud Rate Aux Data Format Host/Printer General Emulation Auto Font Load Monitor Mode Warning Bell Session Display Display Page Length Display Cursor Columns Screen Length Refresh Rate... - Page 35 Host Comm Mode Recv <DEL> Send Block Term Null Suppress Print Prnt Line Term Prnt Mode Emulation Attribute Page Edit WPRT Underline Save Labels Fkey Speed Emulation Numeric Kpd Print Key Usage Char Set Tabs Auto Init Tabs Answerback Answerback Mode Program Prt Sc E xecute Save Terminal...
-
Page 36: Quick: F1
Quick: F1 Wyse-325, Wyse-350, and Intercolor emulations available only in 260lfc. All associated defaults are loaded when the emulation is changed. Default choices are in bold. Some defaults may vary depending on the selected emulation. Comm Mode: [Full Duplex, Half Duplex, Full Block, Half Block] Select the method of communication to match the host computer. -
Page 37: General: F2
General: F2 This chapter lists all possible parameters for each menu, and all possible choices for each parameter. Depending on the emulation selected, the keyboard type, and the key mode (ASCII or ScanCode), Setup will only present the valid set of parameters and choices in each menu. Emulation: select the “personality”... -
Page 38: Display: F3
Setup Display: F3 Page Length: [24, 25, 42, 43, 48, 50, 84, 86, 96, 100, (168), (172), (192), (200), *24, *25, *42, *43] Select the number of lines per page. As many as four pages (0-3) may be available, but the number of pages in memory depends on the memory/page configuration, number of lines per page, the firmware version, the type of emulation, and whether 80-Only is selected for columns. -
Page 39: Keyboard: F4
Keyboard: F4 Language: [US, U.K., Danish, Finnish, French, German, Norwegian, Portuguese, Spanish, Swedish, Dutch, Belgian-Flemish, French-Canadian, Italian, Latin-American, Swiss-French, Swiss-German] Choose the language that matches the keyboard. Char Set Mode: [PC, ANSI, ASCII] Choose character sets used for 20-7Fh (GL) and A0-FFh (GR). In VT emulations, the default is ANSI. The table below can be used to determine which sets are loaded for each mode, depending on “Char Set Mode”... -
Page 40: Keys: F5
Keys: F5 Enter Key: [CR, CR-LF, TAB] Select the code the enter key in the numeric keypad transmits. Return Key: [CR, CR-LF, TAB] Select the code the return key on the main alphanumeric keypad transmits. Alt Key (left): [Meta, Legend, Funct, Scroll-Lock, Alt Key] Select the way in which the left ALT key behaves. - Page 41 ANSI Keyboard Disconnect: [Disabled, Shift-F5] Choose to allow the keystroke that will generate a modem disconnect on the ANSI keyboard or to disable the Disconnect function. If “F1 to F5 keys” selection is set to Fkey in Setup, the Disconnect function will be remapped to Ctrl-Shift-F5. F1 to F5 keys: [Local, Fkey] This selection determines whether the first five keys (labeled F1-F5) serve as local keystrokes (for example, F3 allows access to Setup) or will serve as function keys which are loaded with the default strings.
-
Page 42: Ports: F6
Ports: F6 EIA Baud Rate: [115200, 76800, 57600, 38400, 19200, 9600, 4800, 2400, 2000, 1800, 1200, 600, 300, 150, 110] See Quick menu on page 27. EIA Data Format: [7/1/N, 7/1/O, 7/1/E, 7/1/M, 7/1/S, 7/2/N, 7/2/O, 7/2/E, 7/2/M, 7/2/S, 8/1/N, 8/1/O, 8/1/E, 8/1/M, 8/2/N, 8/2/O, 8/2/E] See Quick menu on page 27. -
Page 43: Print: F8
Local: [Off, On] Select whether keyed data is interpreted locally by the terminal and not sent to the host. Data sent by the host is lost, if Local is on. The ability to print data is not affected by this mode. Send Block Term: [<ETX>, <CR>] Select which character will indicate the end of a block. -
Page 44: Ansi Emulations
Setup Selects the speed at which function keys and labels are programmed by the host. Fast mode will increase the speed for Wyse 50 compatibility, but will limit the amount of space in each function key and answerback message to 8 bytes. Edit keys are not available for programming in fast mode. Changing this selection will default all function keys, edit keys, and function keys labels. -
Page 45: Tabs: F10
Tabs: F10 Auto Init Tabs: [On, Off] When on, tab settings will always be defaulted at power up. Default Tabs: This action field sets tabs at every eighth column starting at column 9. When the cursor is placed in the Tab Map, the keys below will appear in the Choices field: <Space>... -
Page 46: Program: F12
Program: F12 Program: [F/Key, Sh-F/Key, Edit Key, Sh-Edit Key] Specify the type of key to be programmed—function or edit key in its normal or shifted state. When Fkey Speed is Fast in the EMUL (F9) menu, the Program options are F/Key and Sh-F/Key. When SCO Console emulation is selected, the Program options are F/Key, Sh-F/Key, Ctl-F/Key, Ctl-Sh-F/Key, and Edit Key. -
Page 47: Execute: Prt Sc
To program a carriage return or line feed into the key text field, press Ctrl-M or Ctrl-J, respectively. To program the “Print Screen” key to perform a local print screen (page) function: In the key text field, press Ctrl-[ and then P. Next, set the “Key Dir”=Screen option. Execute: Prt Sc All of the parameters in this menu are action parameters. -
Page 48: Glossary Of Terms
Glossary of Terms Some of the terms that are used in the Exec (PrtSc) menu are defined below. Page Reset Page resets are executed when the session or terminal is reset or defaulted. When a page reset is performed, it affects all pages, and the following events occur: the page is erased, the cursor is homed, and scrolling regions are defaulted. -
Page 49: Desk Accessories
chapter Desk Accessories This terminal features five desk accessories, which can be accessed one at a time through pop-up windows. Desk Accessory Menu To display this pop-up window to choose any of the five desk accessories, press Ctrl ←. Function keys F1-F5 are used to display the clock, calendar, calculator, ASCII chart, and diagnostic menu, respectively. -
Page 50: Exiting A Desk Accessory
Exiting A Desk Accessory To exit any window and restore the original screen: Press F11 on the ANSI keyboard. Press Esc on a PC keyboard. Inhibiting Access Access to desk accessories can be inhibited by selecting “Disabled” for “Desk Acc” in the Keys (F5) Setup menu. -
Page 51: Clock
Clock The clock menu (shown below) contains seven lines which can be modified. Use the following keys to make changes: Up- or down-arrow keys - select a line. The line is highlighted. Left- or right-arrow keys - select a field on the chosen line. The selected field is now highlighted. Spacebar- move “up”... -
Page 52: Calculator
Calculator The numeric keypad located on the right side of your keyboard will serve as your calculator. See the figures below to relate the display to the keys on the numeric keypad that control it. The calculator can process up to 10 digits to the left of the decimal point, and up to 9 to the right. When a number or number operator is pressed, it is momentarily highlighted on the display. -
Page 53: Ascii Chart
ASCII Chart Upon entering the ASCII Chart Desk Accessory, the decimal, octal, hexadecimal, binary, and ASCII representations of the character under the cursor are displayed in the pop-up window (as shown for the NULL character in the image at the top of the right column). FONT BANK 0 Use the following keys to change the display of the ASCII chart: Up- or down-arrow –... -
Page 54: Color Utility
Color Utility The Color Utility (260lfc only) is used to temporarily remap Colors and attributes on screen. Changes make to any of the pre-defined palettes with this utility cannot be saved. To define your own color combinations, use the provided soft palettes. To alter the color mapping for an attribute, use the up and down arrow keys to highlight one of the sixteen available attributes. -
Page 55: Compose
chapter Compose ANSI-Multinational Compose Sequences Composed Character “ ’ ¡ ¢ £ ¥ § ¤ © ª « ° ± μ ¶ · º » ¼ ½ 3-Key Description Sequence Quotation mark ï SP Number/pound Apostrophe ’ SP Left bracket Backslash / <... - Page 56 Composed Character Description ¿ Inverted ? À A grave Á A acute  A circumflex à A tilde Ä A umlaut Å A ring Æ AE ligature Ç C cedilla È E grave É E acute Ê E circumflex Ë E umlaut Ì...
-
Page 57: Ansi-Iso Latin-1 Compose Sequences
ANSI-ISO Latin-1 Compose Sequences Composed Character Description No break space Pipe ¬ Logical not Soft (syllable) hyphen ® Registered trademark Macron ¾ Three-fourths ÷ Division sign Χ Multiplication sign ’ Acute accent Cedilla ï Diaeresis (umlaut) Ý Y acute ý y acute Capital Icelandic thorn Small Icelandic thorn... -
Page 58: Local Key
appendix Local Key Action Toggle Caps-Lock Toggle Num-Lock Toggle Scroll-Lock Toggle Auto Print Toggle Block-Mode Toggle Monitor Mode Toggle Ins/Replace Instant Screen Saver Compose Lead-in Funct Lead-in Meta Lead-in Scroll-Lock Soft Reset Hard Reset (Power On) Break Modem-Disconnect Send-Answerback Print-Page Increment Scroll Rate Decrement Scroll Rate Raise Split... - Page 59 Continued Action Toggle Session Enter Desk Accessory Mode Enter Setup Mode Exit Setup Mode Enter Clock Enter Calendar Enter Calculator Enter ASCII Chart Enter Diagnostic Exit Any Desk Accessory Next Page Previous Page Display Page 0 Display Page 1 Display Page 2 Display Page 3 Notes: This function is operational only if EIA (Aux) Rcv-Prtcl = Xon-Xoff/XPC or DTR...
-
Page 60: Page Configurations - Single Host Mode
Page Configurations - Single Host Mode Lines Number of Pages Page in 80-Only Columns 2 (24/72) 2 (25/71 2 (42/54) 2 (43/53) When a page length (in the first column) is preceded by an asterisk (*), a total of two pages will be available. The first page contains the selected number of lines and the second page contains the remaining allowable lines in memory. -
Page 61: Note To Installer
If your distributor fails to provide adequate support for your needs, please contact the Boundless Technologies Technical Support Department directly. You will be required to provide the name of your distributor, and a description of the problem as described above.
