Product Overview - HEDD 05 MK2 Operation Manual

Product Overview

Congratulations on purchasing the HEDD Type 05 MK2 or HEDD Type 07 MK2. You have
acquired very precise monitors with a rich feature set. The main features are exchangable
use as a Closed or Ported system, as well as the integration of the on-board HEDD
Lineariser®. Please head to the specific section to find out more.
As active speakers, the MK2 monitors have an integrated amplifier. You can connect them
with a digital interface or analog pre-amplifier. Please refer to the section Getting Started
or Speaker Setup to find out more.
Due to their similar nature, this operation manual equally covers the HEDD Type 05 MK2
and HEDD Type 07 MK2 monitors. This manual uses illustrations of the different variants,
which thus might not match your exact version in terms of colour or size.

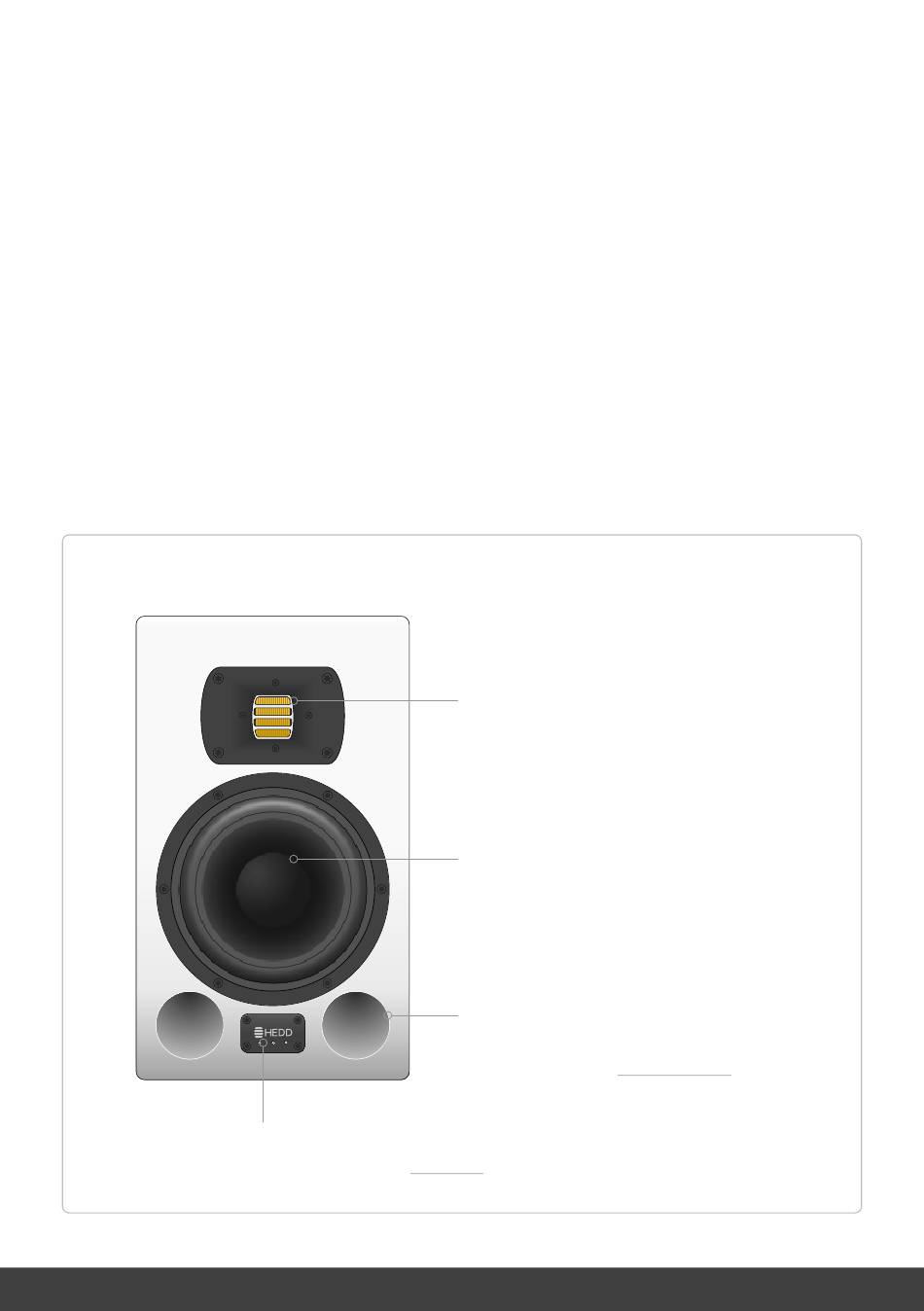

Front View
Status LED
please refer to section Status LED to correctly read the signal
HEDD Air Motion Transformer (AMT)
used for higher frequencies
HEDD Honeycomb Woofer
used for lower frequencies
size either 5'' or 7'' depending on the mode
Front-facing Bass Reflex Ports
can be used ported or closed with included plugs
please refer to section Closed or Ported
