Master TOOL User Manual page 11

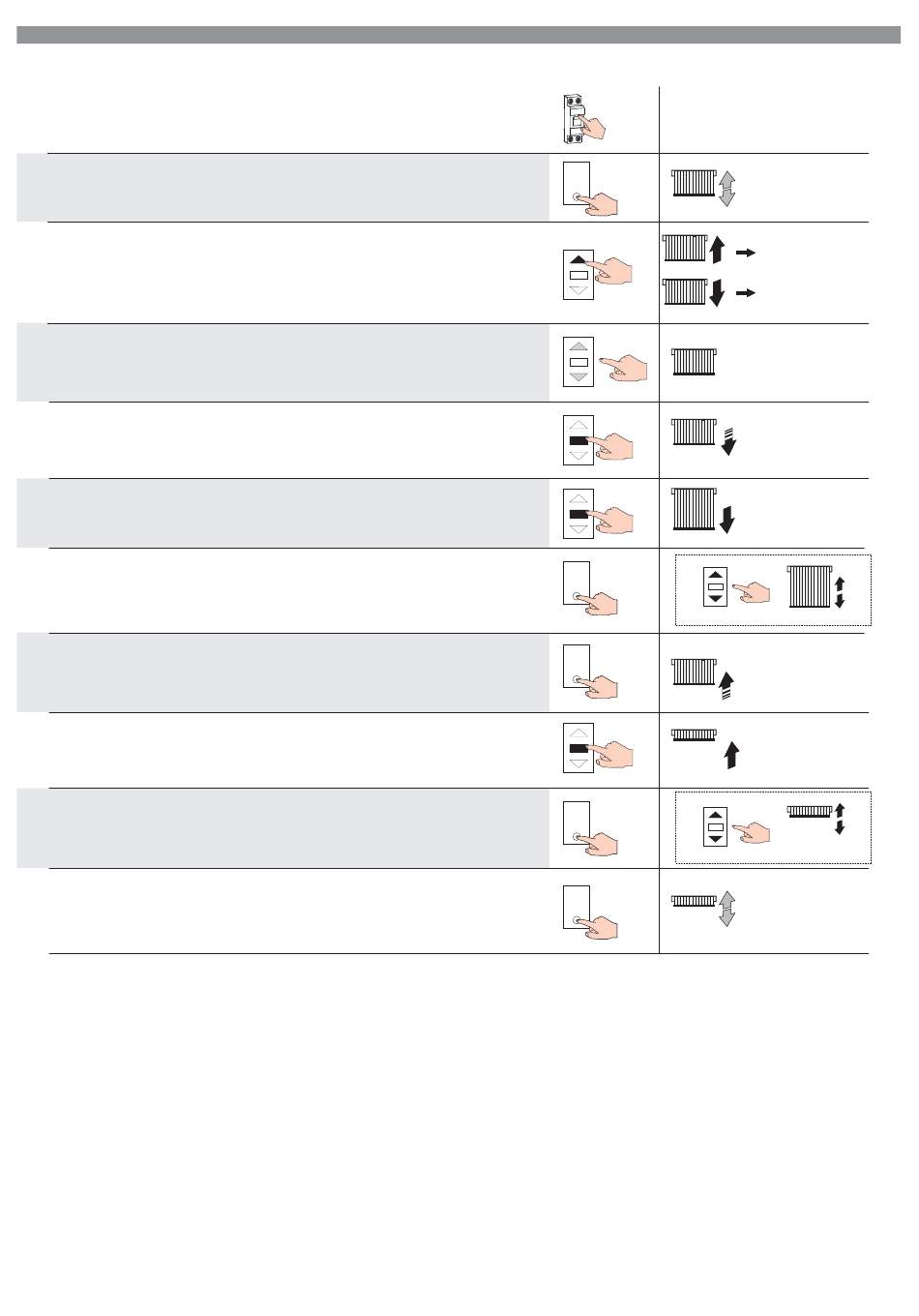

04.2 SCREEN WITHOUT CASSETTE
WARNING: by programming the motor in this mode, the motor can not automatically compensate for any lengthening / shortening of the fabric..
Connect the power supply.
1-
Press PROG briefly (within 1 minute).
2-
The motor makes a signal
Press briefly UP.
3-
If the motor moves downward return to point 2,
if the motor moves upward go to point 4.
Bring the awning in an intermediate position,
4-
keeping pressed UP or DOWN.
Press STOP briefly 3 times and wait.
5-
The motor moves downward
Stop the motor in the desired position by pressing STOP.
6-
Press PROG briefly.
7-
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
Press PROG briefly.
8-
The motor moves upward
Stop the motor in the desired position by pressing STOP.
9-
Press PROG briefly.
10-
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
Press PROG briefly.
11-
The motor signals DOWN-UP. End of the installation!!
ON
Prog
3x
Prog
Prog
Prog
Prog
04
Go to point 4
Repeat point 2
Only if fine adjustment is necessary
Only if fine adjustment is necessary
