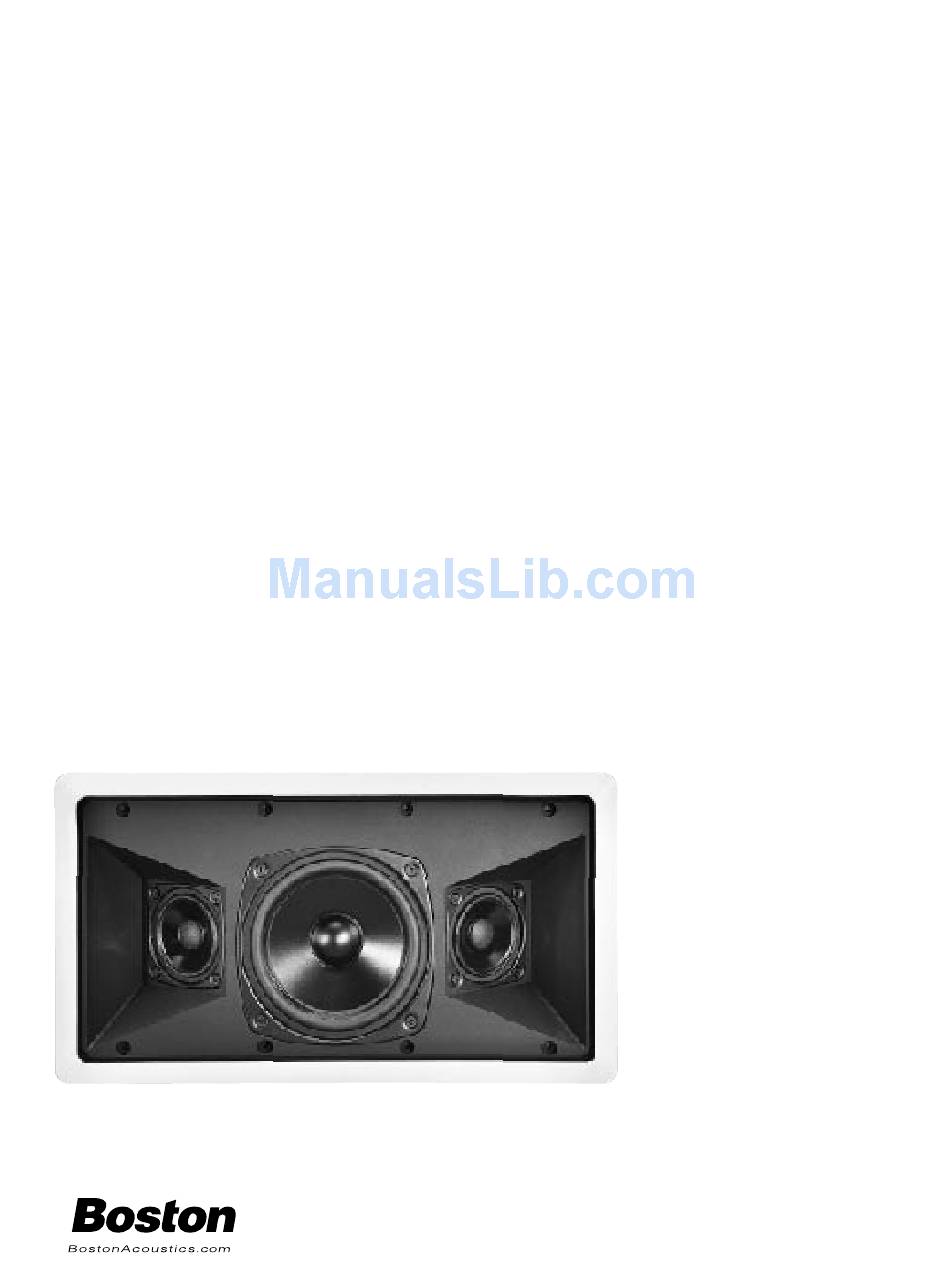

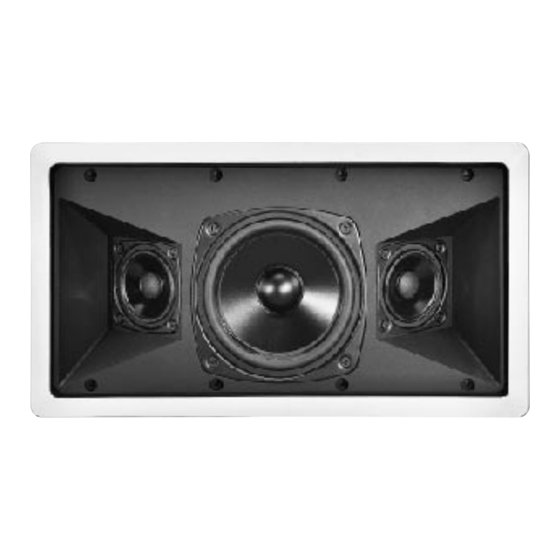

  • Page 1 DX Pro Designer Series In-Wall Diffuse-Field Surround Speaker...

  • Page 2: Specifications

    Specifications Frequency Response (±3dB) Recommended Amplifier Power Nominal Impedance Sensitivity [1 watt (2.83v) at 1m] Bass Unit High-Frequency Driver Crossover Frequency Dimensions (HxW) Mounting Hole Cutout (HxW) Mounting Depth (from surface) Description The DX Pro is a high-performance, diffuse-field surround speaker with the frequency response and power handling demanded by today’s finest home theater systems.

  • Page 3: Installation Instructions

    " (190mm) ⁄ " (95mm) Hardware Package* Contents: Quantity Description 8-32 x 2" Screw * If the hardware package is missing any items, or is not found, additional packages are available from Boston Acoustics. ⁄ " (384mm) ⁄ " (358mm)
  • Page 4 Placement Room placement is one of the most important factors contributing to the quality of home theater sound. Take a few minutes to place your speakers correctly to ensure they will sound their best. Place the DX Pro speakers on either side of the listening area, above ear level.

  • Page 5: Painting The Speakers

    Painting the Speakers If you intend to paint the speakers, it’s best to do so before installation. 1. Remove the speaker grille. Carefully pry at each corner with an awl or a small screwdriver. 2. Use the form-fitting painting mask provided to paint the housing.

  • Page 6: Preparing For Installation

    In all cases, make certain that the total impedance does not fall below the amplifier’s minimum rating. If you are not sure, contact your Boston Acoustics dealer. You Will Need 1. A utility knife, an electric jigsaw, or another means of cutting a hole in the mounting surface.
  • Page 7 3. Remove speaker grille. Carefully pry each corner with an awl or a small screwdriver. 4. Prepare the speaker/bracket assembly for instal- lation as shown. WARNING: To prevent electrical shock hazard, always switch off the amplifier or receiver when making connections to the speaker. IMPORTANT: Typically, one side of the wire is smooth.

  • Page 8: Listening Levels And Power-Handling

    Limited Warranty For three years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use, without charge for parts and labor. Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative, and to present proof of purchase in the form of your sales slip when requesting service.
