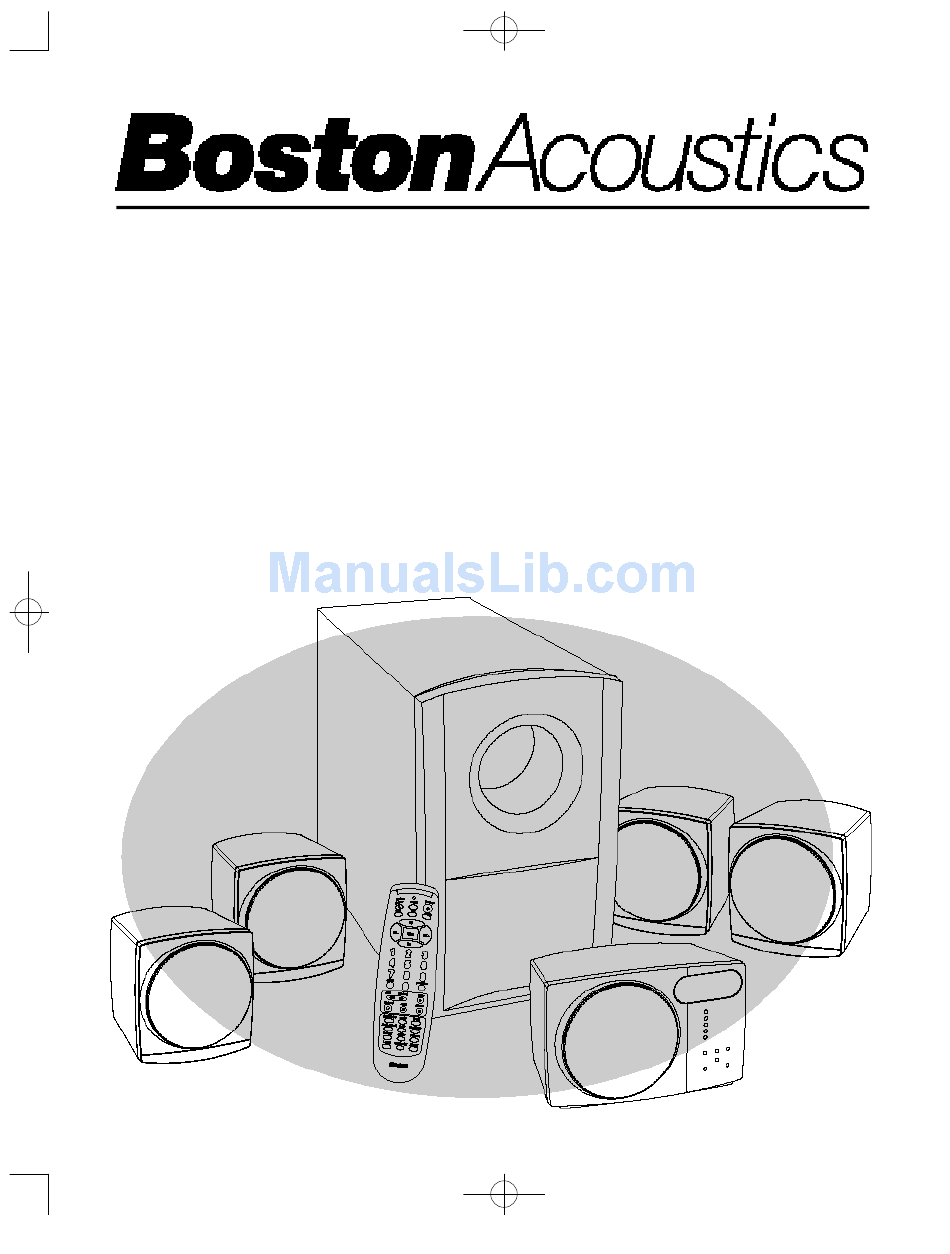

- Page 1 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Page 1 D i git alT h eater 6000 ™ Integrated Home Theater System with Dolby ® Digital Surround...
- Page 2 Wa rning! To reduce the risk of fire or electric shock do not expose this apparatus to rain or moisture. Power supply intended for use with Boston Acoustics speaker systems only! 1. Read these instru c t i o n s .
- Page 3 I m p o rtant Safety Inform a t i o n 1. Power supply intended for indoor use only! 2. Power supply intended for use with Boston Acoustics speaker systems only! 3. CAUTION! Do not short output of power supply! 4.
- Page 4 5:45 PM R e g u l a t o ry Compliance Statements (cont.) Boston Acoustics, Inc. 300 Jubilee Drive P e a b o d y, MA 01960 USA d e c l a re under our sole responsibility that the p ro d u c t e r k l ä...
- Page 5 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Japanese Users: This equipment is in the Class 2 cate- g o ry (Information Technology Equipment to be used in a residential area or an adjacent are a t h e reto) and conforms to the standards set by the Vo l u n t a ry Control Council for Interf e re n c e by Information Technology Equipment aimed at p reventing radio interf e rence in such re s i d e n t i a l...
- Page 6 BDT6000R (REV5).ƒ 11/22/99 5:45 PM This package contains — • • • • • • • R e m o t e • “AAA” Batteries (4) • S u b w o o f e r • Center channel speaker with display •...
- Page 7 BDT6000R (REV5).ƒ 11/22/99 5:45 PM S p e c i fic a t i o n s System Frequency Response (±3dB) Maximum System SPL Dolby Digital Decoder I n p u t s Remote Contro l Display (Center Channel) Center Channel Drive Unit Subwoofer Bass Unit Satellite Drive Units Dimensions (H x W x D)
- Page 8 BDT6000R (REV5).ƒ 11/22/99 5:45 PM D e s c r i p t i o n The Boston DigitalTheater 6000 is an integrated home theater sound system. It accepts signals f rom digital or analog sources, decodes them to produce surround sound for up to six channels and provides the amplifiers and speakers for those six channels.
- Page 9 BDT6000R (REV5).ƒ 11/22/99 5:45 PM How to Place the Boston DigitalTheater 6000 System in Your Room Center Channel Place the DigitalTheater 6000 center channel on top of the video monitor or TV set. The f ront of the speaker should be flush with the front of the t e l e v i s i o n .
- Page 10 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Wall-mounting the satellite speakers Facing Out • Drill two (11mm) holes for toggle wings. ⁄ ” If mounting on a surface other than dry w a l l , consult a knowledgeable installer about the p roper hard w a re to use on your wall.
- Page 11 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Facing Up • Attach bracket to speaker with the supplied flathead machine scre w. • Drill two (3mm) pilot holes for wood ⁄ ” s c rews, then mount screws. Leave about (3mm) of screw thread exposed. If mounting on drywall, use plastic anchors (not includ- ed).
-
Page 12: Ac Power Connection
BDT6000R (REV5).ƒ 11/22/99 5:45 PM AC Power Connection Plug one of the two cords coming out of the transformer into the subwoofer jack labeled 12V in AC/DC and the other AC power cord on the transformer into an AC outlet. Speaker Connection Center Channel Speaker Connect the short speaker cable, with the green RCA plug, between the green jack on the... - Page 13 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Page 13 Satellite Speakers T h e re are four identical satellite speakers, two for the front and two for the re a r. The front speakers use the shorter cables, and the rear speakers use the longer cables. Connect them as shown: Plug the w h i t e plug of the s h o rt s p e a k e r cable into the jack labeled left fro n t.
- Page 14 To make this connection, use an optical digital cable (not included — for more details, contact your dealer or Boston Acoustics directly). Page 14 Plug one end into the digital output of the DSS unit and the other into the black optical digital t e rminal on the subwoofer back panel.
- Page 15 BDT6000R (REV5).ƒ 11/22/99 5:45 PM LED Display Panel On Center Channel Unit • Numerical Level Indicator This display shows the setting for system master volume, and the individual channel levels (“trim levels”) for the center speaker, surround speakers, and subwoofer. The master volume is numbere d between 0 and 80, the trim levels for the center and surround speakers are between –9 and +9, and the trim level range for the subwoofer is between -9 and +15.
- Page 16 BDT6000R (REV5).ƒ 11/22/99 5:45 PM LED Display Panel On Center Channel Unit (cont.) n i g h t When listening at low volumes, (late at night, for example), the quietest passages can be difficult to hear and the loud passages are often too loud. The n i g h t mode reduces the system’s dynamic range (the diff e rence between loudest and softest sounds) so the quiet parts of the program are clearly audible even at low volume, while attenuating the loudest passages so others are n ’t disturbed.
- Page 17 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Universal Remote Contro l The DigitalTheater 6000 comes equipped with a universal remote control which will operate many TVs, VCRs, cable boxes, DVD players, and DSS units, as well as the DigitalTheater 6000 itself. This means only one remote control is needed to watch a movie, eliminating the clutter of multiple re m o t e s .
- Page 18 BDT6000R (REV5).ƒ 11/22/99 5:45 PM P rogramming the Universal Remote Contro l This universal remote is pre - p rogrammed for hundreds of diff e rent devices. Install the 4 “AAA” batteries in the remote. Orient the batteries (+ or -) as shown in the battery c o m p a rtment.
- Page 19 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Button Reassignment to Control Diff e rent Devices You might have two devices that would be con- t rolled by the same button (a VCR and a DVD, for example, each controlled by the V C R b u t- ton, or a cable box and DSS, each contro l l e d by the c a b l e button).
- Page 20 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Operating The DigitalTheater 6000 System Initial Setup – Test To n e B e f o re using the system, the relative speaker levels should be calibrated for optimum perf o rm a n c e . This is easily accomplished by using the system’s built-in test tone to match the levels of the fro n t and rear channels.
- Page 21 BDT6000R (REV5).ƒ 11/22/99 5:45 PM Using the Test Tones (cont.) To adjust a speaker’s volume— (see Remote Control illustration on page 20.) • P ress the button for the speaker you wish to adjust. The LED display on the center chan- nel speaker will now light for the speaker selected and the test tone will continue to c i rc u l a t e .
- Page 22 BDT6000R (REV5).ƒ 11/22/99 5:45 PM To watch TV from DSS • P ress the T V button and press P o w e r to turn on the TV. • P ress Boston Power to turn on the DigitalTheater 6000 system. •...
- Page 23 BDT6000R (REV5).ƒ 11/22/99 5:45 PM To listen to Music on CD using a CD player • P ress Boston Power to turn on the DigitalTheater 6000 system. • P ress A u d i o to select the audio input. Put the disc in the CD player and press play on the CD player’s front panel.
- Page 24 Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service re p resentative and to pre s e n t p roof of purchase in the form of your sales slip when requesting serv i c e .
