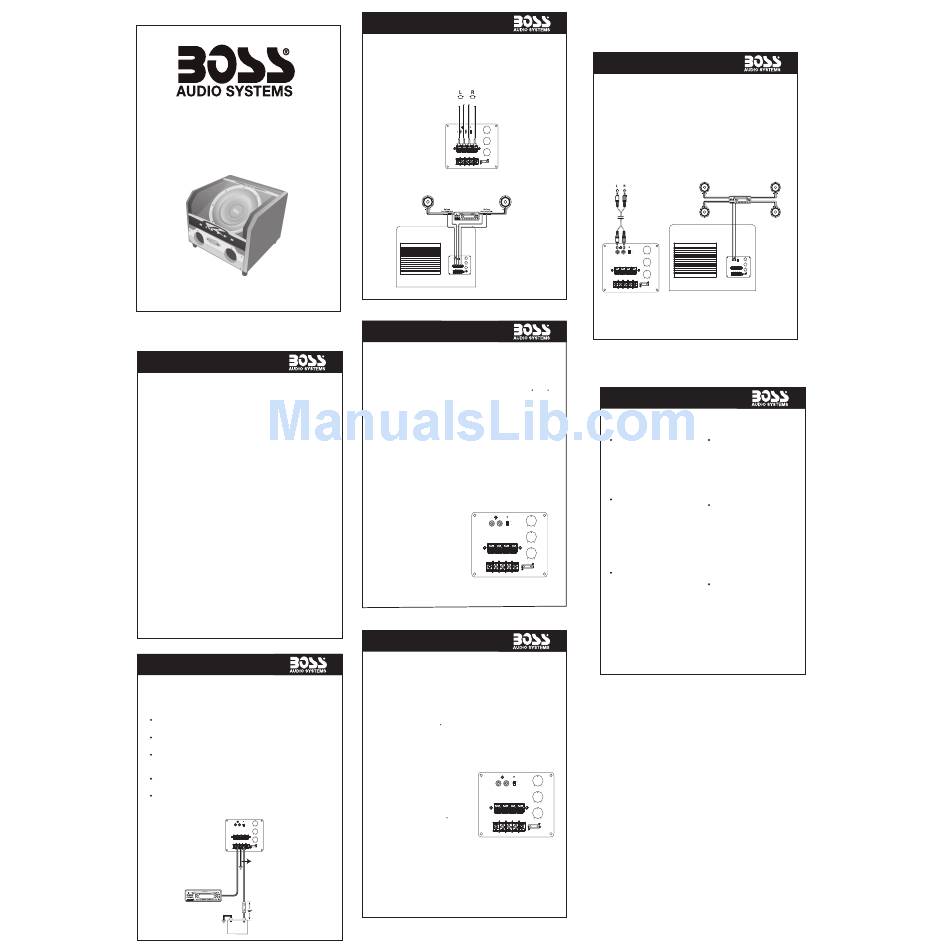

Boss Audio Systems SBP10 Reference Manual

SBP10AMP
SBP12AMP
BANDPASS AMPLIFIED ENCLOSURE
HIGH POWER HANDLING
SPECIFICATIONS
Amplifier Power: SBP10AMP (700W MAX OUTPUT)
SBP12AMP (800W MAX OUTPUT)
Frequency Response: 20Hz to 200Hz
Fuse: 15A
Max. Current Draw: 15A
Idle Current Draw:
< 500mA
Input Sensitivity:
100mV to 2V
Line-level input
0.4V to 8V
High-level input
Crossover Frequency: 50Hz to 200Hz
Crossover Slope: 12dB per octave
Bass Boost: 0dB to 18dB @ 45Hz
Dimensions (SBP10AMP):
14-1/4" x 16-1/4" x10-7/8"
(L x W x H)
Dimensions (SBP12AMP): 16-1/16" x 18-1/4" x11-1/2"
(L x W x H)
1
POWER CONNECTIONS
Connect power to SBP10AMP / SBP12AMP, as shown in Figure 1. Also observe
these installation tips:
Use at least #10 AWG wire for the +BATT (+12Vdc) and GND (ground) connections.
lf needed, use at least a #20 AWG wire for the REM (remote) connection.
Route all power wires through a grommet in the vehicle's firewall. lf a factory
grommet is unavailable, install one.
Connect a short GND wire from SBP10AMP / SBP12AMP to the nearest bare metal
surface. For a good connection, scrape away paint from the metal surface and
use a screw with a lock (star) washer.
Install a fuse holder with a 15A fuse within 18" of the battery's positive (+) terminal
(see Figure 1).
The REM connection requires +5 to +12 Vdc signal to turn on SBP10AMP /
SBP12AMP. Most head units with preamp outputs provide this remote voltage signal.
Figure 1. Power connections for SBP10AMP / SBP12AMP.
FREQ
-0
-180
LINE INPUT PHASE 50 200 Hz
SBP10AMP
BASS
SBP12AMP
HIGH LEVEL INPUT
0 18 dB
(Control Panel)
GAIN
REM GND +12V MIN MAX
FUSE 15A
Chassis Ground
(Bare Metal)
Remote
Turn-On
Figure 1
Source Unit
Fuse 15A
2
Battery
APPLICATIONS (CONTINUED)
Figure 3. SBP10AMP / SBP12AMP audio connections for a head unit equipped with
two speaker-level outputs.
Speaker Wires
(spliced)
+ -
+
-
FREQ
-0
-180
50 200 Hz
LINE INPUT PHASE
BASS
HIGH LEVEL INPUT
0 18 dB
GAIN
REM GND +12V
MIN MAX
FUSE 15A
Figure 3
L Speaker R Speaker
Source Unit
FREQ
-0
-180 50 200 Hz
LINE INPUT PHASE
BASS
HIGH LEVEL INPUT
0 18 dB
GAIN
REM GND +12V MIN MAX
FUSE 15A
CONTROLS AND FUNCTIONS
SBP10AMP / SBP12AMP provides PHASE Control: Use this switch to
several controls and indicators that reverse the phase of SBP10AMP/ /
simplify sonic integration with virtually any SBP12AMP's output with respect to its
vehicle's unique acoustic properties. They input. Choose the position (0 or 180 )
are located on the top control panel, as that sounds the best.
shown in Figure 4.
NOTE: Depending on SBP10AMP /
GAIN Control: Use this control to adjust
SBP12AMP's orientation and location in
the relative volume (loudness) of
a vehicle, reversing the phase may (or may
SBP10AMP / SBP12AMP with respect
not) increase or decrease the amount
to the other speakers in the vehicle.
of perceived upper bass being reproduced.
CROSSOVER: Use this control to adjust
POWER LED: This indicator will glow
the amount of high-frequency information when SBP10AMP / SBP12AMP is
present in SBP10AMP / SBP12AMP's operational.
output. A lower value means more of the
high frequencies are filtered out.
BASS BOOST: Use this control to correct
any perceived peak or dip in the bass
response (typically around 40Hz in most
Figure 4
vehicles). set the control to any value
between 0dB and 18dB, according to
your preference.
FREQ
-0
-180
50 200 Hz
LINE INPUT PHASE
BASS
HIGH LEVEL INPUT
0 18 dB
GAIN
REM GND +12V MIN MAX
FUSE 15A
TUNING SBP10AMP / SBP12AMP
1. Make sure the head unit is off and its 8. Adjust the BASS-BOOST control
volume control is set to minimum. clockwise or counterclockwise to suit
your taste.
2. On SBP10AMP / SBP12AMP's top
NOTE: In most cases, the above steps
panel, initially set all controls to their
will provide satisfactory tuning.
midpoint positions, as shown in Figure 5.
However, the actual process
On SBP10AMP / SBP12AMP top
may require several readjustments
panel, initially set PHASE to 0.
of each control, since the
settings will interact with each
3. Turn on the head unit and play a favorite
other.
music track that has substantial
bass. set the head unit's volume control
to 75 percent of the total output
(approximately 3 o' clock on rotary controls). Figure 5
4. Adjust the GAIN control clockwise until
distortion is heard and turn it back a little. FREQ
-0
-180
50 200 Hz
LINE INPUT PHASE
5. Listen to your system, making a mental
BASS
note of the amount of upper bass being
HIGH LEVEL INPUT
0 18 dB
reproduced.
GAIN
6. Switch the PHASE control to 180 and
REM GND +12V MIN MAX
listen again for upper bass content.
There may be more upper bass, less
FUSE 15A
upper bass, or no change at all. The
position that provides the most upper
bass is correct, but choose either setting
according to your taste.
7. Adjust the CROSSOVER control clockwise
or counterclockwise until you hear only
low frequency information. For example,
you should NOT hear any vocals coming
from when seated in the normal listening
position.
APPLICATIONS
SBP10AMP / SBP12AMP is equipped with two line-level (RCA) inputs and two
speaker-level inputs.
To help you plan your installation, we have included two system applications in
Figures 2 and 3 on pages 3 and 4. For more system ideas, see your authorized
BOSS car audio dealer.
Figure 2. SBP10AMP / SBP12AMP audio connections for a head unit with two
line-level or subwoofer (RCA) outputs.
Subwoofer or
Line-Level
Outputs
LF speaker
(on Source Unit)
Source Unit
RCA Stereo Cables
(not supplied)
LR speaker
FREQ
-0
-180
LINE INPUT PHASE 50 200 Hz
BASS LINE
HIGH LEVEL INPUT
0 18 dB
GAIN
REM GND +12V MIN MAX
4
FUSE 15A
Figure 2
TROUBLESHOOTING
PROBLEM: PROBLEM:
POWER LED is not lit. No output from
SBP12AMP
CAUSES and SOLUTIONS: control is set to front or rear.
1. Fuse is blown and needs replacement.
2. Head unit is not functioning properly. CAUSE and SOLUTION:
Check remote voltage, and power,
Input connections are improperly wired.
ground or remote connections.
Verify all connections (see Applications,
starting on page 3 & 4 ).
PROBLEM:
PROBLEM:
POWER LED is lit but there is no
bass. SBP10AMP / SBP12AMP
before head unit is completely on
and produces a "thump" sound.
CAUSES and SOLUTIONS:
1. Inputs are not connected. Check
connections. CAUSE and SOLUTION:
2. Head-unit fader control is not set
For speaker-level connections,
properly. Adjust head-unit fader control
SBP10AMP / SBP12AMP is receiving
to feed audio signals to SBP10AMP /
a false turn-on signal. On SBP10AMP /
SBP12AMP.
SBP12AMP's top panel, use the
Remote (REM) connection.
PROBLEM:
SBP10AMP / SBP12AMP sounds
PROBLEM:
muddy or distorted.
SBP10AMP / SBP12AMP
5
LED remains on after head unit is
CAUSES and SOLUTIONS:
turned off.
1. Gain is set too high. Readjust GAIN
control (see Tuning SBP10AMP /
SBP12AMP on page 6). CAUSE and SOLUTION:
2. Bass is set too high, Readjust BASS
For speaker-level connections, this is
BOOST control (see Tuning
normal operation. SBP10AMP /
SBP10AMP / SBP12AMP on page 6).
SBP12AMP will remain on another 5 to
3. Head-unit output is distorted or blown. 10 minutes after sensing that audio signals
see your authorized BOSS car audio are not present before shutting down.
dealer.
6
RF speaker
RR speaker
FREQ
-0
-180
INPUT PHASE 50 200 Hz
BASS
HIGH LEVEL INPUT
0 18 dB
GAIN
REM GND +12V MIN MAX
FUSE 15A
3
SBP10AMP /
when head-unit fader
turns on
's POWER
7
