Summary of Contents for Boss Audio Systems BASS600
-
Page 2: Table Of Contents
Installation precautions Fuses Mounting the subwoofer Connecting the subwoofer Front panel controls and features Rear panel controls and features Input wiring 10 Power connections 10 Remote level control connection 11 Troubleshooting 12 Specifications BASS600 Amplified Subwoofer User’s Manual - page 1... -
Page 3: Introduction
You can control the subwoofer level with the remote level control module. BASS600 Amplified Subwoofer User’s Manual - page 2 What is included? When first unpacking your new amplified subwoofer, please check first that the package contains all of the items below. -
Page 4: General Precautions
If the shut down was due to either an input overload or a short circuit, be sure to correct these conditions before attempting to power up the subwoofer again. BASS600 Amplified Subwoofer User’s Manual - page 3... -
Page 5: Installation Precautions
BASS600 Amplified Subwoofer User’s Manual - page 4 Fuses Power fuses protect both the amplifier and the electrical system of your car from fault conditions. -
Page 6: Mounting The Subwoofer
8 gauge (or heavier) cable from this fuse to the amplifier location. 4. Check that the fuse holder is empty. Then connect the fuse holder to the "BATT+" connection on the amplifier. BASS600 Amplified Subwoofer User’s Manual - page 5... - Page 7 11. Further fine tuning of the various controls may be necessary to obtain best results. BASS600 Amplified Subwoofer User’s Manual - page 6 Don't misuse the level control! Do not mistake the input level control for a volume control! It is designed...
-

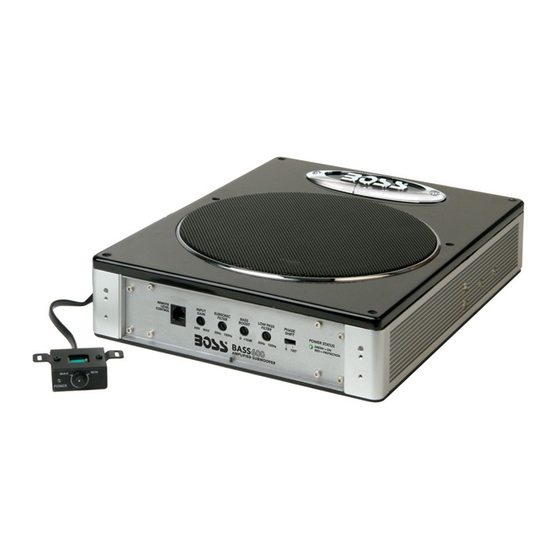

Page 8: Front Panel Controls And Features
This bi-color LED glows green when power is on and no problems are present. If one of the protection circuits comes on, it will change to red. BASS600 Amplified Subwoofer User’s Manual - page 7 PHASE SHIFT POWER STATUS GREEN = ON RED = PROTECTION 180º... -
Page 9: Rear Panel Controls And Features
RCA outputs are present on your head unit or other signal source (such as a sound processor). BASS600 Amplified Subwoofer User’s Manual - page 8 FUSES INPUTS LINE LEVEL... -
Page 10: Input Wiring
INPUTS LINE LEVEL +12V To Audio Outputs of head unit or signal processor FUSES INPUTS LINE LEVEL +12V WHITE WHITE/BLACK To Speaker Terminals of head unit BASS600 Amplified Subwoofer User’s Manual - page 9 HIGH LEVEL HIGH LEVEL GREY GREY/BLACK... -
Page 11: Power Connections
+12V REMOTE Chassis ground point Remote Level Control Connection REMOTE LEVEL CONTROL Remote Level Control BASS600 Amplified Subwoofer User’s Manual - page 10 FUSES INPUTS HIGH LEVEL LINE LEVEL Battery FUSE to REMOTE TURN-ON terminal of head unit INPUT SUBSONIC... -
Page 12: Troubleshooting
Use only the best quality cables, and route them away (static type) from power cables. Check that the RCA grounds are not shorted to the vehicle chassis/ Engine noise (alternator Check that the head unit is properly grounded. whine) BASS600 Amplified Subwoofer User’s Manual - page 11... -
Page 13: Specifications
Frequency response Input sensitivity, high level Input sensitivity, low level Low pass filter Subsonic filter Bass Boost Fuse rating Dimensions BASS600 Amplified Subwoofer User’s Manual - page 12 8” Amplified Subwoofer BASS600 600W 200W <0.4% >90dB 20Hz - 150Hz 110mV 0.5V...
