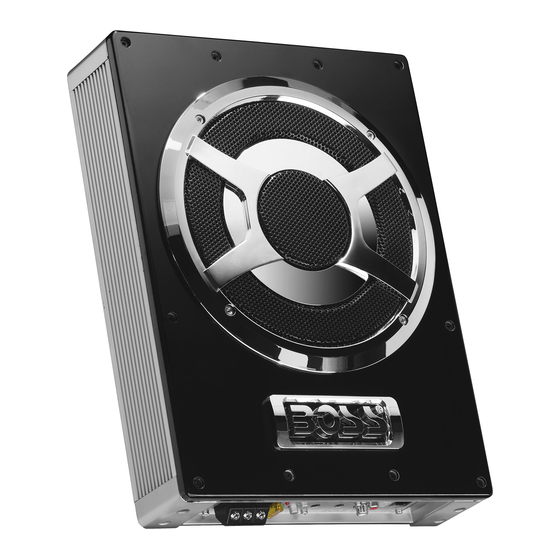

10-inch powered subwoofer with passive radiator
Hide thumbs Also See for BASS800:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BASS800 and is the answer not in the manual?

Questions and answers

Related Manuals for Boss Audio Systems BASS800

Summary of Contents for Boss Audio Systems BASS800

  • Page 2 What is included? Features General precautions Protection circuitry Installation precautions Fuses Mounting the subwoofer Connecting the subwoofer Front panel controls and features Input wiring Power connections Remote level control connection 10 Troubleshooting 11 Specifications BASS800 Amplified Subwoofer User’s Manual - page 1...
  • Page 3 You can control the subwoofer level with the remote level control module. BASS800 Amplified Subwoofer User’s Manual - page 2 What is included? When first unpacking your new amplified subwoofer, please check first that the package contains all of the items below.
  • Page 4 If the shut down was due to either an input overload or a short circuit, be sure to correct these conditions before attempting to power up the subwoofer again. BASS800 Amplified Subwoofer User’s Manual - page 3...
  • Page 5 BASS800 Amplified Subwoofer User’s Manual - page 4 Mounting the subwoofer 1. Find a suitable location in the vehicle in which to mount the amplifier. Since...
  • Page 6 Ignoring these instructions will result in an input overload to the amplifier in the subwoofer, and excessive audio distortion. It can also cause the protection circuit to engage. BASS800 Amplified Subwoofer User’s Manual - page 5...

  • Page 7: Controls And Features

    If the midrange is well covered by the rest of your system, you will probably want the subwoofer to only receive lower frequency signal. BASS800 Amplified Subwoofer User’s Manual - page 6 PHASE LOW PASS BASS INPUT...
  • Page 8 Low level inputs are the recommended way to introduce the audio signal to the subwoofer if RCA outputs are present on your head unit or other signal source (such as a sound processor). BASS800 Amplified Subwoofer User’s Manual - page 7...

  • Page 9: Low Level Input Wiring

    180º REMOTE +12V REMOTE LEVEL POWER STATUS CONTROL GREEN = ON RED = PROTECTION FUSE WHITE WHITE/BLACK BASS800 Amplified Subwoofer User’s Manual - page 8 LOW PASS BASS INPUT FILTER BOOST GAIN 50Hz 150Hz 0 +12dB AMP LIFIED SUBWOOFER INPUTS...

  • Page 10: Power Connections

    GREEN = ON HIGH LEVEL RED = PROTECTION FUSE Install the remote control securely under the dash or in a similar location where using it will not distract the driver. BASS800 Amplified Subwoofer User’s Manual - page 9 INPUT GAIN INPUT GAIN...

  • Page 11: Troubleshooting

    Use only the best quality cables, and route them away (static type) from power cables. Check that the RCA grounds are not shorted to the vehicle chassis/ Engine noise (alternator Check that the head unit is properly grounded. whine) BASS800 Amplified Subwoofer User’s Manual - page 10...

  • Page 12: Specifications

    Fuse rating Dimensions 10” Amplified Subwoofer BASS800 800W 280W <0.4% >90dB 20Hz - 150Hz 110mV 0.5V 50Hz -150Hz 0 to +12dB 13” x 13” x 12” All specifications subject to change without notice. BASS800 Amplified Subwoofer User’s Manual - page 11...
