TESTO 0519.0816 Operation Manual

Pneumator - pressure calibra- tor and measuring instrument
Hide thumbs
Table of Contents

Advertisement

Quick Links

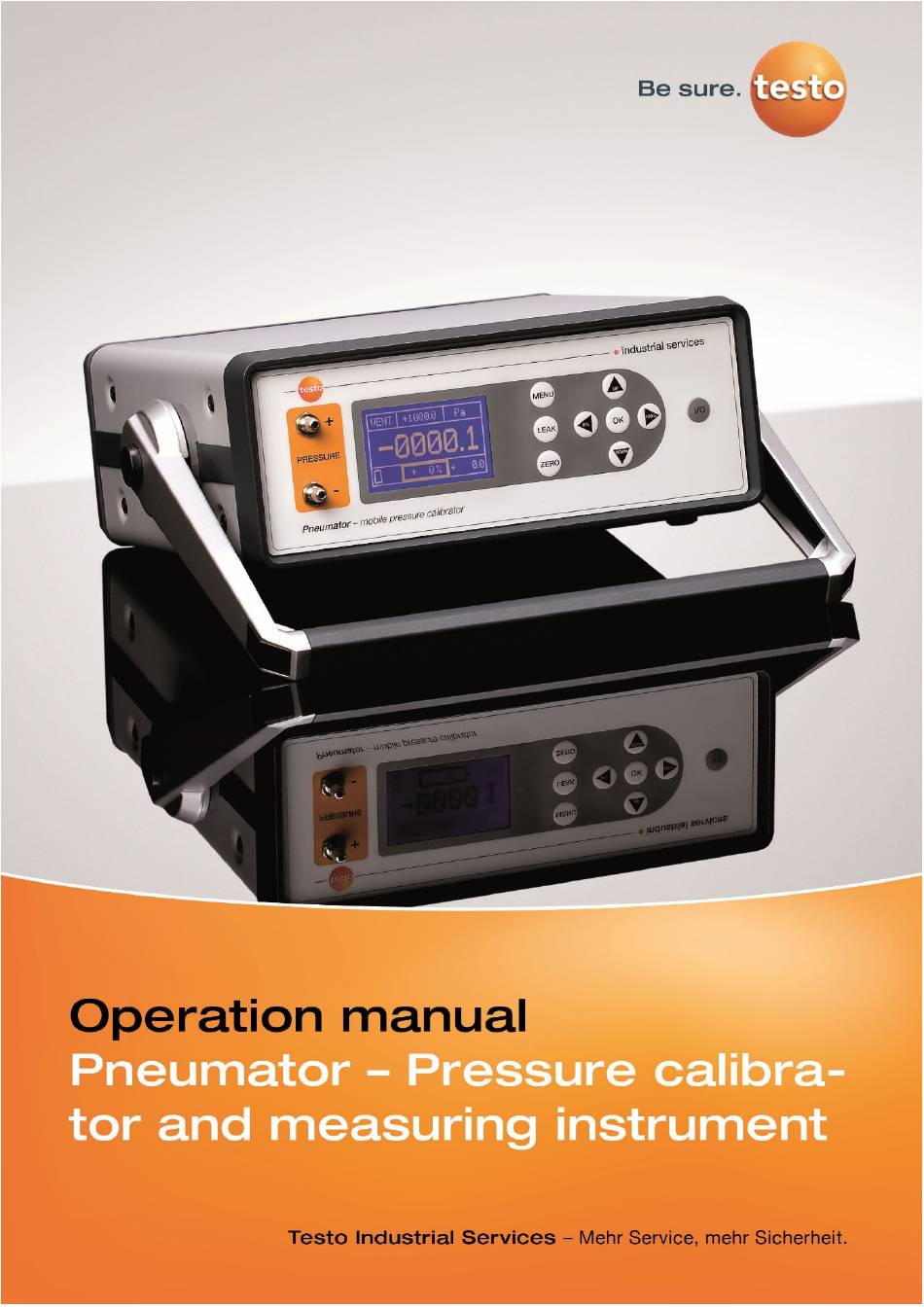

Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0519.0816 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESTO 0519.0816

Summary of Contents for TESTO 0519.0816

  • Page 1 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 1...
  • Page 2 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 2 Order number Measuring range 0519.0816 1 hPa 0519.0817 10 hPa 0519.0818 100 hPa 0519.0819 1000 hPa...

  • Page 3: Table Of Contents

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 3 Content 1. Introduction and safety instructions ..............4 2. Overview operation elements and interfaces ..........5 3. Operating modes ....................5 4. General operation....................6 5.

  • Page 4: Introduction And Safety Instructions

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 4 Introduction and safety instructions Dear Sir or Madam, Thank you for buying a Pneumator from Testo industrial services GmbH. We are sure, that this instrument will be of benefit to you and your work for a long time.

  • Page 5: Overview Operation Elements And Interfaces

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 5 2. Overview operation elements The Pneumator has two pressure connections, one display as well as 9 control buttons: Pressure „+“ With differential pressure, the higher pressure must be attached here With relative pressure, please attach only to this connector Pressure „-“...

  • Page 6: General Operation

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 6 Operating Page Application Pressure connection Function mode CTRL Calibration Test device (Differential-/ Pump builds up selected (step-by-step) relative pressure measuring pressure, display indicates the instrument)

  • Page 7: Menu Setting For All Operating Modes

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 7 In the submenu: one decimal to the left 100% During operation: see description of the individual operation mode In the menu: without function In the submenu: one decimal to the right...

  • Page 8: Operating Mode Ctrl - Calibration (Step-By-Step)

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 8 6. Operating mode CTRL – calibration (step-by-step) Purpose: The operation mode CTRL (Control / regulation) is selected for the calibration of a test device in individual steps. In case the calibration takes place at the same pressure ranges frequently, we recommend the operation mode AUTO.
  • Page 9 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 9 Operation / application: After selecting the operation mode CTRL and leaving the menu (MENU button) a zero adjustment is automatically conducted, in case AUTO ZERO = ON.
  • Page 10 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 10 Leakage test (LEAK) In case the test device has to be checked whether it is connected pressure-tight, you can start a leakage test with the LEAK button at each pressure step, upon reaching a stabilized value.

  • Page 11: Operating Mode Auto - Calibration (Programmed Steps)

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 11 7. Operating mode AUTO – calibration (programmed steps) Purpose: The operation mode AUTO (automatic regulation) is chosen for the calibration of test devices in preprogrammed steps. This makes sense and is timesaving if several test devices have to be calibrated with the same pressure sequences.
  • Page 12 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 12  Submenu „Steps down“: Define requested number of descending pressure steps (buttons UP, DOWN, 0%, 100%, confirm with OK).  Submenu „Configuration 1“: By pressing OK, a further menu overview is being opened.
  • Page 13 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 13 Phase Indication in Signification number menu Wait for start (activate with OK), equipment is venting (display shows VENT) T START Waiting time (in seconds) for venting (display shows VENT) Zeroing phase (if AUTO ZERO = ON), about.
  • Page 14 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 14 o Upper middle and right: Indication of the maximum pressure and unit o Middle left: Number of past and future cycles o Middle: Phase number (compare chart above), phase-duration, reference...

  • Page 15: Operating Mode Mess - Pressure Measurement

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 15 8. Operating mode MESS – Pressure measurement Purpose: The operating mode MESS (pressure measurement) is used for measurement of process pressure (differential pressure or relative pressure).
  • Page 16 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 16 Example (see illustration): Operating mode pressure measurement (MESS) Maximum pressure = 10 mbar Current measurement value = 0 mbar Current pressure = 0,002 mbar, Mains operation (bottom left)

  • Page 17: Operating Mode Velo - Velocity Measurement

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 17 9. Operating mode VELO – Velocity measurement Purpose: The operating mode VELO (velocity measurement) is used for the measurement of process velocity (e.g. in an air duct) with the help of a pitot tube.
  • Page 18 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 18 the VELO display indication appears, which provides all relevant information of the measurement, appears. Meaning of the display elements (VELO): o Top left: Display of current operating mode (ZERO = zero setting, VELO =...
  • Page 19 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 19...

  • Page 20: Operating Mode Flow - Volume Flow Measurement

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 20 Operationg mode FLOW – volume flow measurement Purpose: The operating mode FLOW (volume flow measurement) is used for measurement of process-volume flow (e.g. in an air duct) with the help of a pitot tube.
  • Page 21 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 21 the FLOW display indication appears, which provides all relevant information of the measurement. Meaning of the display elements (FLOW): o Top left: Display of current operating mode (ZERO = zero setting, FLOW =...

  • Page 22: Computer Programming

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 22 Computer programming The Pneumator can be controlled by PC-interfaces (RS232 or USB). The communication interval in each case is 1 second. RS232: RxD, TxD and the GND cable is needed for the connection. The connection is made with a straight interface cable (1:1, male x female).
  • Page 23 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 23 interrogation mark on the respective command, a parameter can be read out. Received commands are acknowledged with „OK“, not available or wrong commands /instructions with „ERROR“.
  • Page 24 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 24 :ps <-10…110><CR> Percentual set pressure requirement -10…110  set pressure requirement in % :pu <CR> Set pressure requirements to raise the actual set step size...

  • Page 25: Technical Data

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 25 Technical data The resolution of the 4 Pneumator models is as follows:: Model 1hPa: 100,01 Pa -> Resolution 0,01 Model 10 hPa: 10,001 hPa -> Resolution 0,001 Model 100hPa: 100,01 hPa ->...

  • Page 26: Service

    Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 26 Service Testo Industrial Services GmbH Gewerbestr. 3 D-79199 Kirchzarten GERMANY Tel. +49 (0) 7653-681-8000 Fax. +49 (0) 7653-681-8010 info@testotis.com www.testotis.com...
  • Page 27 Operation manual Pneumator ∙ Testo Industrial Services ∙ Version 1.4 ∙ 2019 ∙ Page 27...

This manual is also suitable for:

0519.08170519.08180519.0819
