Summary of Contents for STARING SM 340

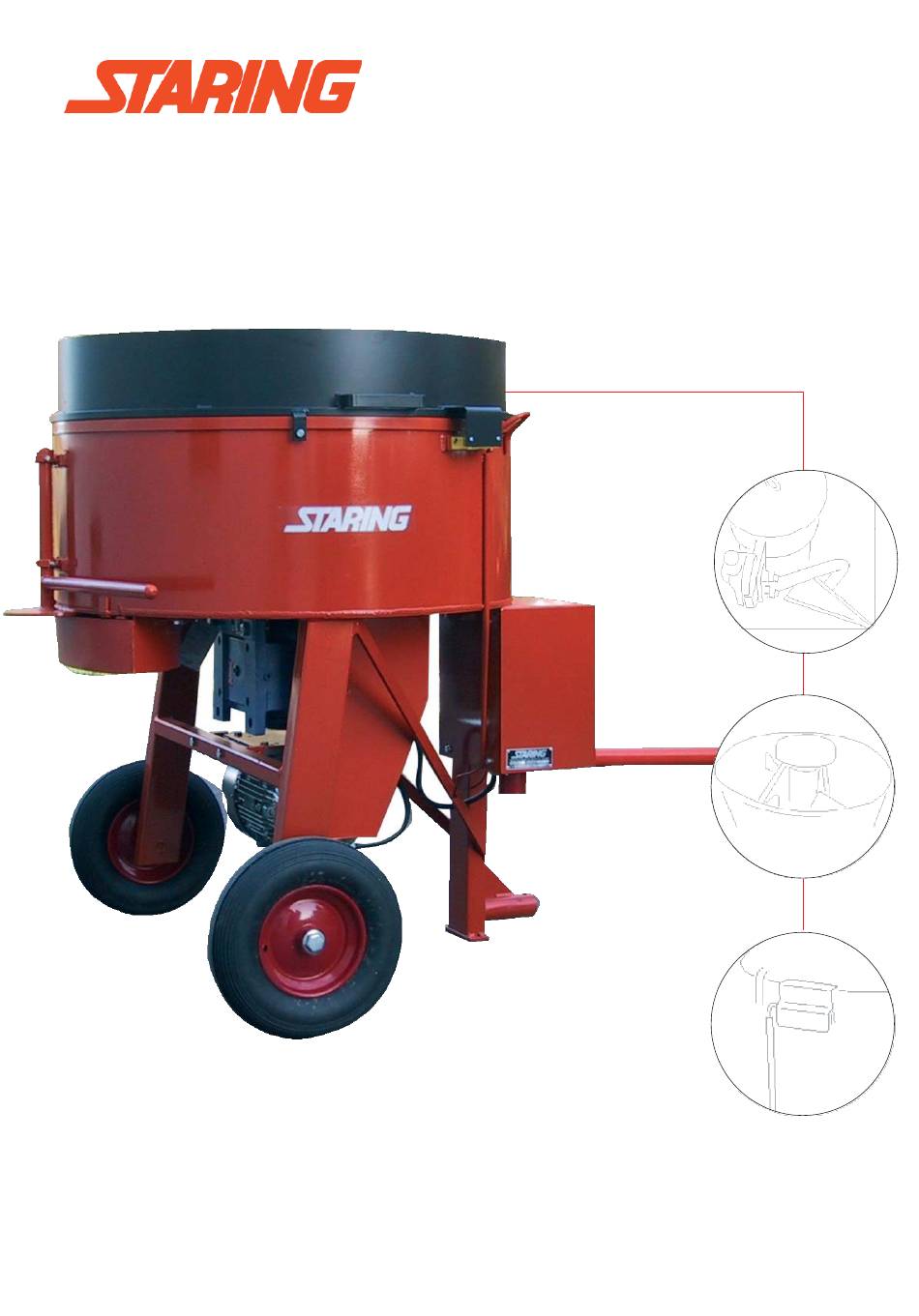

- Page 1 SM 340 Instruction manual >> Before you use the Mixer, pleace read the Intruction manual 1 << Instruction manual • Staring SM 340 •...
- Page 2 >> 2 • Instruction manual • Staring SM 340...
-
Page 3: Table Of Contents
STARING SM 340 are results of our recent develop- ment work within the mixer technology field. In order to achieve safe handling of the STARING SM 340, we ask you to read the following instruction manual carefully. -
Page 4: Technical Data
>> 1. Technical Data Mixer Type ............SM 340 Mixer Weight............425 kg Gross Volume .. -
Page 5: Safety And Prevention Of Accidents
If the mixer is operated incorrectly and not in accordance with the intended purpose, damage to persons or equip ment may result. Therefor any incorrect use of the mixer is not allowed! 5 << Instruction manual • Staring SM 340 •... - Page 6 (89/392/EEC as amended by Directives 91/368/ EEC, 93/44/EEC and 93/68/EEC)with special reference to Annex 1 of the Directive on essential safety and health requirements in relation to the construction and manufacture of machines. >> 6 • Instruction manual • Staring SM 340...
-
Page 7: Special Safety Equipment
Then the forks must be level (horizontally arranged) under the mixer pan in order to avoid any damage and that the mixer tips over. Never lift the mixer from the discharge side with forklift truck. 7 << Instruction manual • Staring SM 340 •... -
Page 8: Starting Procedure
2. Check the mixer and remove all major foreign matters. 3. Check that the mixer blades are correctly fastened in order to avoid damage to the mixer. 4. Place the mixer on a surface which is as level as possible. >> 8 • Instruction manual • Staring SM 340... -
Page 9: Using The Mixer
Fig. 3 Filling and discharge of the mixer should only take place when the mixer is running so, hat damage to the mixer is avoided. 9 << Instruction manual • Staring SM 340 •... -
Page 10: Optimum Mixing
The optimum mixing (mixing time) is achieved by filling water directly through the centre cover of the mixer. In this way the water will be equally distributed in the mixer pan during the mixing. >> 10 • Instruction manual • Staring SM 340... -
Page 11: Adjustment Af Mixer Blades
Dimension A = 0 – 2 mm and Dimension B = 2 – 5 mm and tighten the screws. Fig. 4b 5. Place the safety cover ain right position again 6. Restart the mixer. 11 << Instruction manual • Staring SM 340 •... -
Page 12: Cleaning And Maintence Of The Mixer
Never direct the jet of water directly at the plug or control panel. The gearbox of the mixer requires no maintenance. If the mixer pan is damaged it will be difficult to clean it. Fig. 6 >> 12 • Instruction manual • Staring SM 340... -
Page 13: Spare Parts
>> 10. Spare Parts Only approved STARING spare parts should be used for the mixer. The warranty will be void if spurious spare parts are used. >> 11. Spare Part List Name Spare Part No. Quantity Cover 0335 2010 Transport whels... -
Page 14: Guarentee
4. Natural wear and tear. 5. Only use approved Staring spare parts. Where a complaint is forthcoming Staring Maskinfabrik A/S should be informed in writing together with all relevant information regarding the machine. Additionally, an, defective symptoms or cause must be informed. -
Page 15: Ec Declaration Of Conformity
Annex 1 of the Directive on essential safety and health requirements in relation to the construction and manufacture of machines. Company: STARING MASKINFABRIK A/S Name: Tommy Bredal Position: C.E.O. 15 << Instruction manual • Staring SM 340 •... - Page 16 Staring Maskinfabrik A/S Starengvej 9-11 DK-9700 Brønderslev Tlf.: +45 9882 1622 Fax: +45 9882 5591 www.staring.dk staring@staring.dk CVR.nr. DK 2767 2701 >> 16 • Instruction manual • Staring SM 340...
