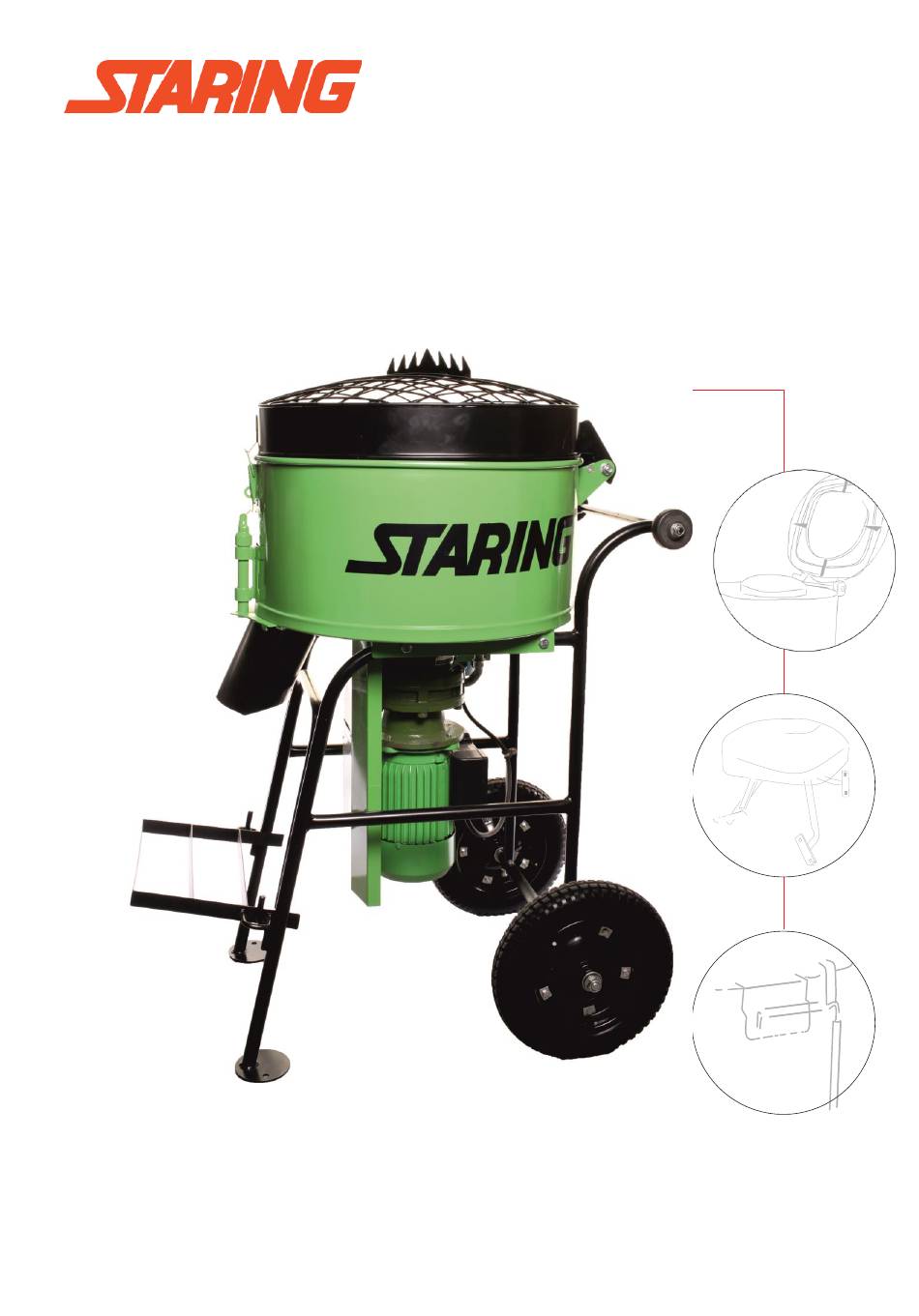

- Page 1 SM90CHK >> Before you use the Mixer, pleace read the Intruction manual 1 << Instruction manual • Staring SM 84 •...
- Page 2 >> 2 • Instruction manual • Staring SM 84...
-
Page 3: Table Of Contents
STARING SM 90 are results of our recent develop- ment work within the mixer technology field. In order to achieve safe handling of the STARING SM90, we ask you to read the following instruction manual carefully. -
Page 4: Technical Data
>> 1. Technical Data Mixer Type ............SM 90 Mixer Weight............89 kg Gross Volume .. -
Page 5: Safety And Prevention Of Accidents
Equipment If the mixer is operated incorrectly and not in accordance with the intended purpose, damage to persons or equipment may result. Therefor any incorrect use of the mixer is not allowed! 5 << Instruction manual • Staring SM90 •... - Page 6 In connection with maintenance and repair work the power supply must be disconnected and arrangement made so that it is not possible to engage the mixer again. >> 6 • Instruction manual • Staring SM 90...
-
Page 7: Special Safety Equipment
Directive on essential safety and health requirements in relation to the construction and manufacture of machines. The mixer is also produced in accordance with following harmonized standard : EN 292-1, 292-2, 294, 349 and 418 7 << Instruction manual • Staring SM90 •... - Page 8 The mixer is protected against automatic restarting and the thermal relay needs to be reset before the mixer can be used again. The rated power is stated on the electric motor machine sign. >> 8 • Instruction manual • Staring SM 90...
-
Page 9: Starting Procedure
Incorrect lifting of loads as well as damaged chains an ropes may cause serious accidents. Manual transport of the mixer. Fig. 2 Fig. 2 The mixer should not be transported by means og cranes or forkliftes. Fig. 3 Fig. 3 9 << Instruction manual • Staring SM90 •... - Page 10 2. Check the mixer and remove all major foreign matters 3. Check that the mixer blades are corrctly fastened in order to avoid damage to the mixer. 4. Place the mixer on a surface which is as level as possible. >> 10 • Instruction manual • Staring SM 90...
- Page 11 Fig. 3 the direction of rotation should be checked. Filling and discharge of the mixer should only take place when the mixer is running so, hat damage to the mixer is avoided. 11 << Instruction manual • Staring SM90 •...
-
Page 12: Using The Mixer
7. Turn bolt B clockwise. One rotation lowers the mixing head by approximately 2mm. Install the mixing head and check the distance between the mixer blade and the bottom. This distance should be approximately 2 mm. Fig. 5 >> 12 • Instruction manual • Staring SM 90... -
Page 13: Spare Parts
Never direct the jet of water directly at the plug or control panel. The gearbox of the mixer requires no maintenance. If the mixer pan is damaged it will be difficult to clean it. Fig. 6 Fig. 6 13 << Instruction manual • Staring SM90 •... -
Page 14: Spare Part List
>> 8. Cleaning and Maintenance of the Mixer Only approved STARING spare parts should be used for the mixer. The warranty will be void if spurious spare parts are used. >> 10. Spare Part List Quantity Name Spare Part No. -
Page 15: Ec Declaration Of Conformity
4. Natural wear and tear. 5. Only use approved Staring spare parts. Where a complaint is forthcoming Staring Maskinfabrik A/S should be informed in writing together with all relevant information regarding the machine. Additionally, an, defective symptoms or cause must be informed. - Page 16 Annex 1 of the Directive on essential safety and health requirements in relation to the construction and manufacture of machines. Company: STARING MASKINFABRIK A/S Name: Tommy Bredal Position: C.E.O. >> 16 • Instruction manual • Staring SM 90...
- Page 17 Staring Maskinfabrik A/S Starengvej 9-11 DK-9700 Brønderslev Tlf.: +45 9882 1622 Fax: +45 9882 5591 www.staring.dk staring@staring.dk CVR.nr. DK 2767 2701 >> 16 • Instruction manual • Staring SM 84...
