UM-ZW xGen Z-Wave Module
Installation Manual
Product Summary
The UM-ZW allows you to add and control Z-
Wave certified devices on an xGen series
control panel.
The maximum recommended data bus length
is 800 m. The wireless receiver can be
powered from the xGen control panel data bus.
Installation Guidelines
When installing the receiver:
• Leave 10cm clear around all sides of the
module for better signal reception.
• Avoid installing on or near metal surfaces
such as filing cabinets and metal roller
shutters.
• Avoid installing on or near electrical
devices such as fridges, vacuum cleaners,
air conditioners, computers, washing
machines, and motors.
• Avoid areas that are damp and wet such as
inside bathrooms and cool rooms.
Installing the Module

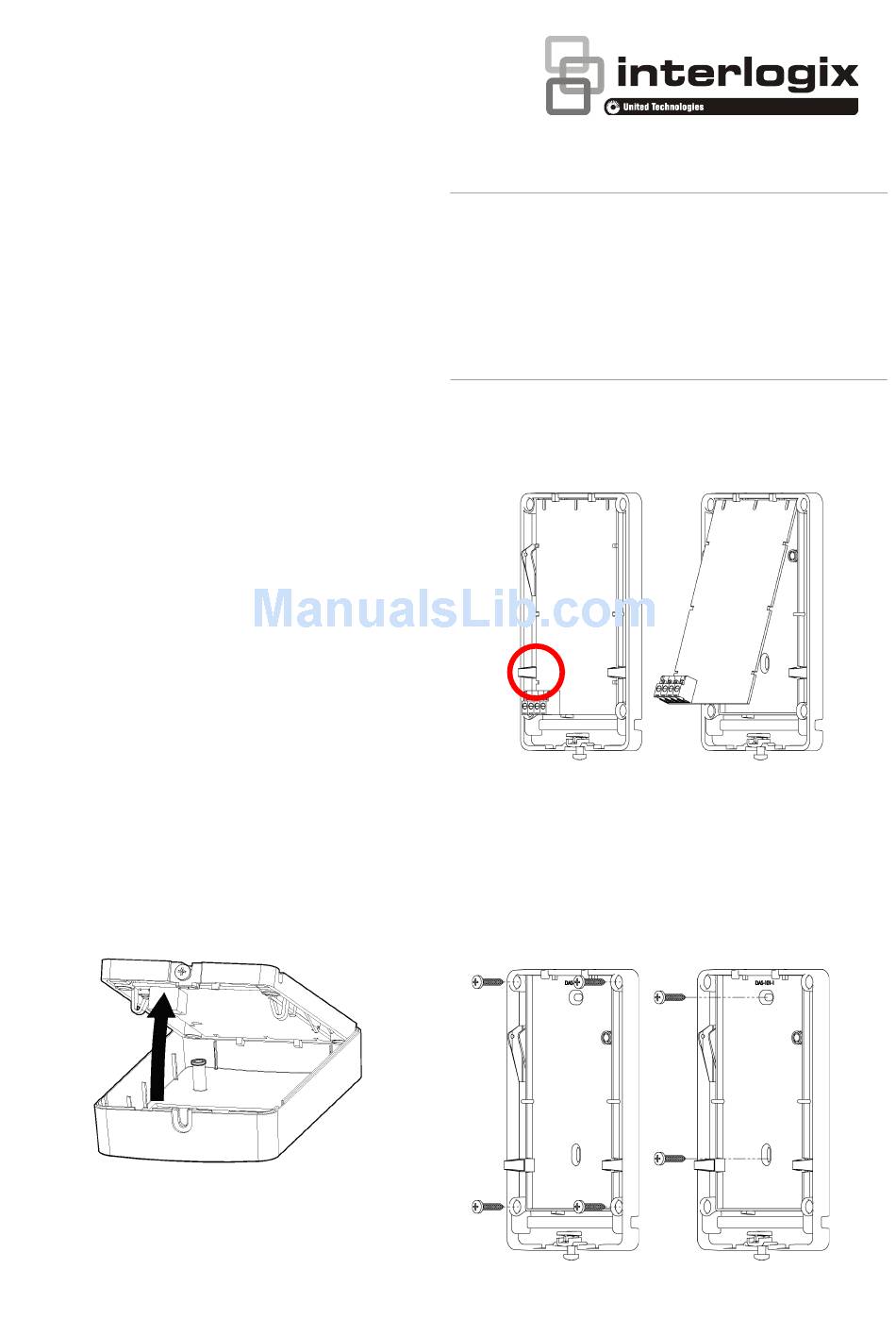

1. Turn the receiver face down, loosen the
bottom screw, and lift the base upwards.
This will ensure the internal tamper switch
remains in place.
UM-ZW Installer Manual RevC.docx
PLEASE READ THE ULTRASYNC MODULAR HUB REFERENCE GUIDE BEFORE USING THIS
PRODUCT WHICH INCLUDES IMPORTANT SAFETY AND LEGAL INFORMATION
INCLUDING WARNINGS, WARRANTY DISCLAIMERS, AND LIMITATIONS OF LIABILITY,
AND COMPLETE INSTRUCTIONS ON HOW TO ENROLL AND CONFIGURE EXPANSION
MODULES. THE REFERENCE GUIDE IS AVAILABLE AT:
http://www.interlogix.com/intrusion/product/ultrasync-modular-hub
S'IL VOUS PLAÎT LIRE LE GUIDE DE REFERENCE POUR LE HUB UltraSync MODULAIRE
AVANT D'UTILISER CE PRODUIT QUI COMPREND LA SÉCURITÉ IMPORTANT ET
JURIDIQUES INFORMATIONS, Y COMPRIS LES AVERTISSEMENTS, GARANTIE
EXCLUSIONS, ET LIMITATIONS DE RESPONSABILITÉ ET INSTRUCTIONS COMPLETES SUR
COMMENT ENROLLER ET CONFIGURER LES MODULES D'EXPANSION. LE GUIDE DE
RÉFÉRENCE
EST DISPONIBLE AU: http://www.interlogix.com/intrusion/product/ultrasync-modular-hub
2. Carefully remove the circuit board from
the plastic housing by squeezing on the
side tabs.
3. Feed the buss cable through one of the
cable holes.
4. Screw the rear plastic housing to a fixed
surface. Higher positions generally provide
better signal reception.
Page 1
