Contrive avior Quick Start Manual

1
Connect Avior to your PC using the adapter cable
2505.00.03 Mobi.Link USB
The device is powered directly from the USB port,
but if your computer is not able to supply sufficient
current you will also need to connect the external
power supply.
USB software drivers should install silently, if not you can download it here:
Download the configuration software
https://www.contrive.mobi/E/aviorsuite.php
Avior.Suite is a portable program.
No installation is required: extract the files to any local or
remote location and run the Avior.Suite program.
Click on the USB icon to manage Avior directly connected to the PC.
Select the COM port the device is connected to and enter the password
(factory default 0000 ).
When you have set up either Wifi or the mobile APN details
you will be able to configure and monitor your Avior remotely
To explore all the features of
Avior.Suite
https://youtu.be/GXu_UL7edw4
in addition to this video in the Avior
channel you will find other videos
illustrating the device and its use.
Pour toute assistance sur ce produit, vous pouvez
contacter notre Help Desk à l'adresse:
https://www.contrive.it/support/
précisez où vous avez acheté le produit et décrivez votre
problème de manière claire et concise..
Si la carte SD est installée dans l'appareil, vous avez également
la possibilité de le configurer via un serveur Web embarqué
avior
IoT • REMOTE CONTROL IoT • REMOTE CONTROL

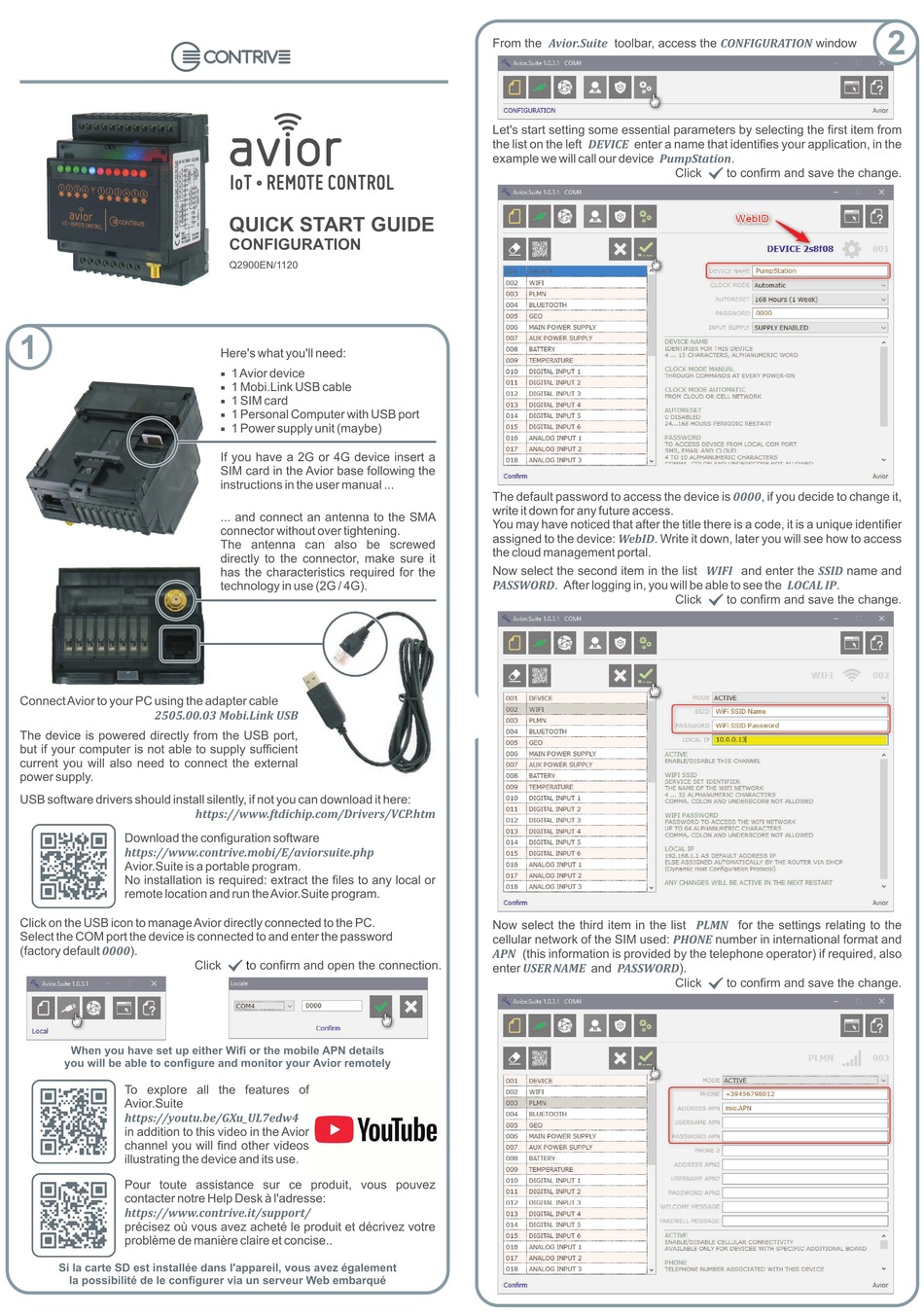

QUICK START GUIDE

CONFIGURATION

Q2900EN/1120
Here's what you'll need:

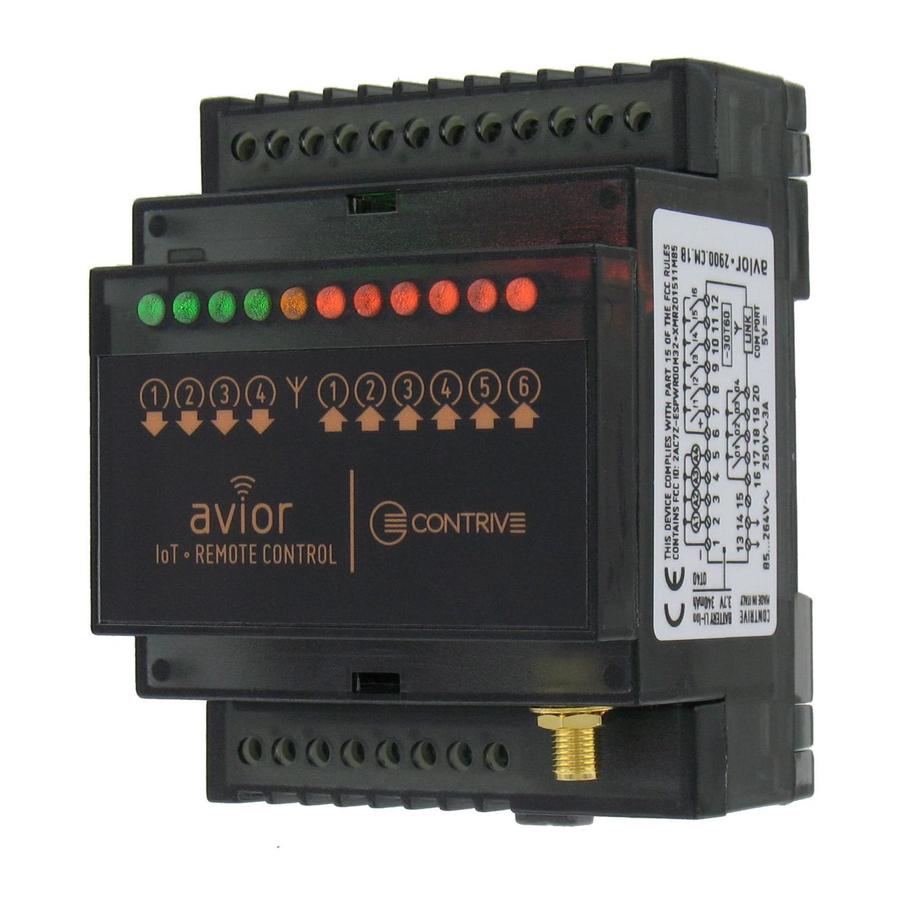

1 Avior device
¡
1 Mobi.Link USB cable
¡
1 SIM card
¡
1 Personal Computer with USB port
¡
1 Power supply unit (maybe)
¡
If you have a 2G or 4G device insert a
SIM card in the Avior base following the
instructions in the user manual ...
... and connect an antenna to the SMA
connector without over tightening.
The antenna can also be screwed
directly to the connector, make sure it
has the characteristics required for the
technology in use (2G / 4G).
https://www.ftdichip.com/Drivers/VCP.htm
Click . t o confirm and open the connection.
From the Avior.Suite toolbar, access the
Let's start setting some essential parameters by selecting the first item from
the list on the left DEVICE enter a name that identifies your application, in the
example we will call our device PumpStation
The default password to access the device is
write it down for any future access.
You may have noticed that after the title there is a code, it is a unique identifier
assigned to the device: WebID . Write it down, later you will see how to access
the cloud management portal.
Now select the second item in the list
PASSWORD . After logging in, you will be able to see the
Now select the third item in the list
cellular network of the SIM used:
APN (this information is provided by the telephone operator) if required, also
enter USER NAME and PASSWORD
CONFIGURATION window
.
Click . to confirm and save the change.
0000 , if you decide to change it,
WIFI and enter the SSID name and
LOCAL IP .
Click . to confirm and save the change.
PLMN for the settings relating to the
PHONE number in international format and
).
Click . to confirm and save the change.
2
