PAMS Technical Documentation

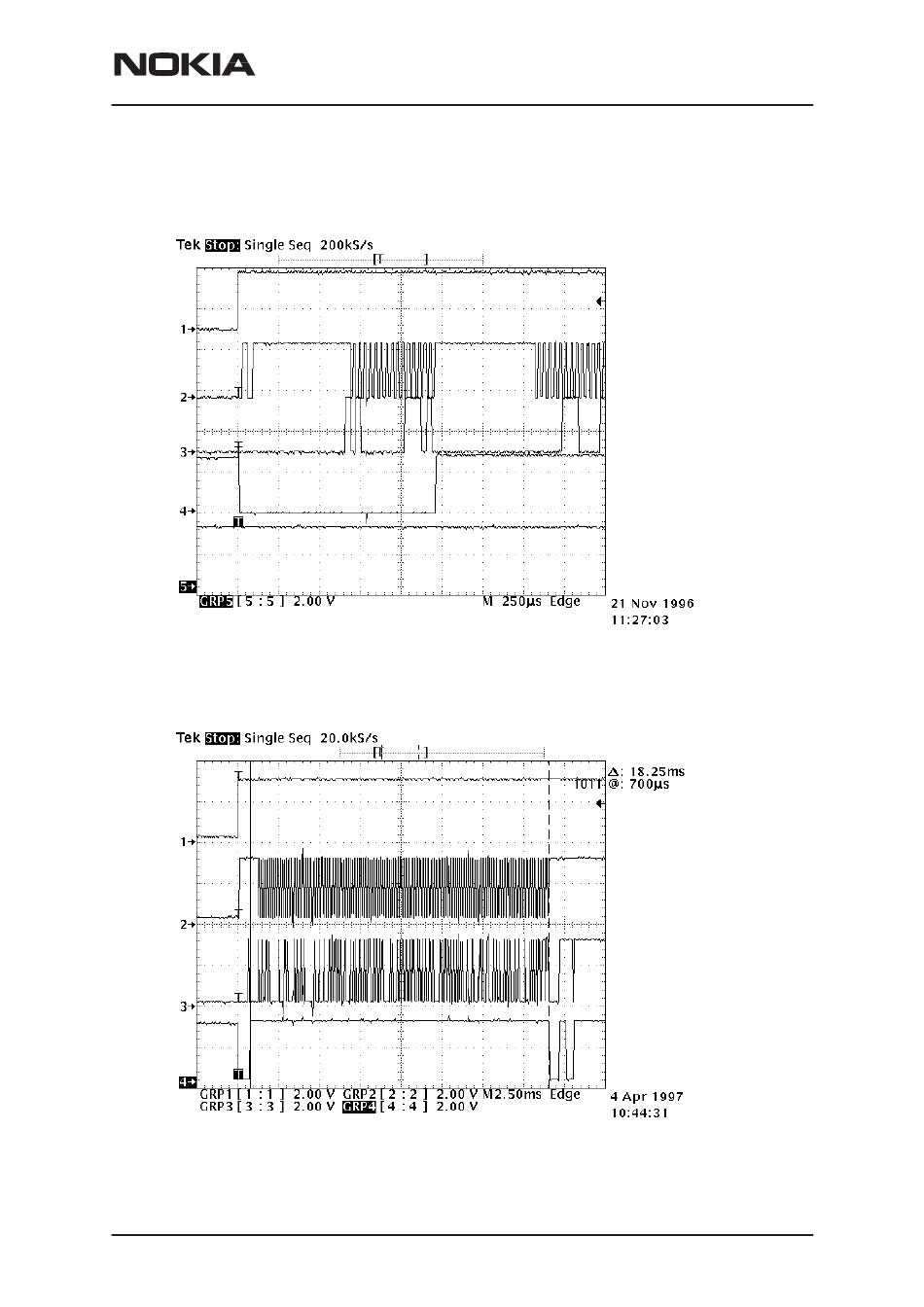

Flash Programming Sequence
Issue 4 02/2002
E Nokia Corporation
NSM–3/3D
System Module
CCONT pin
(PurX)
MAD pin
(FCLK (MBUS))
MAD pin 109
(FRX (FRxData))
MAD pin
(FTX (FTxData))
SRAM D221 (Chip Sel)
FLASH D210 (Chip Sel)
CCONT pin
(PurX)
MAD pin
(FCLK (MBUS))
MAD pin
(FRX (FRxData))
MAD pin
(FTX (FTxData))
Page 37
