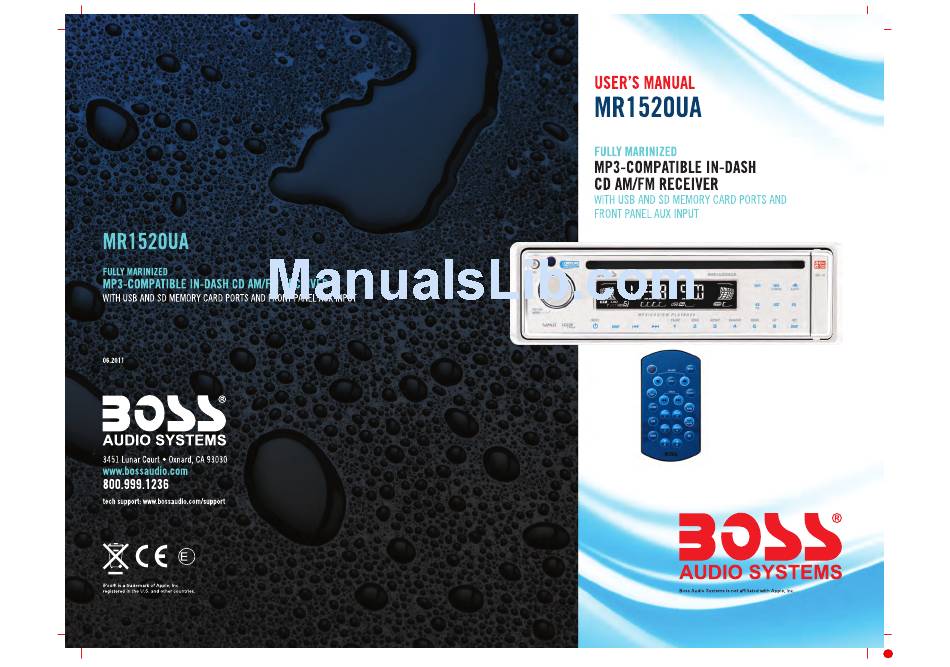

  • Page 1 10 R - 02 0896...
  • Page 2 This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and convenient to use while driving. Here are some tips to show you how easy it is to use this touch sense panel: Tips Using a very light touch on the radio panel will activate that feature.

  • Page 3: Buttons Location And Functions

    1. BUTTONS LOCATION AND FUNCTIONS Panel Encoder Release Volume Button Knob Menu Power Button Button Mute Button MP3 Enter Button Band Button Tuning Up/Down Track Up/Down MP3 Menu Button Automatically Local/ Store/Preset Distant Scan Button Button Preset Memory Button (M1~M6) Source iX-Bass Button...

  • Page 4: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 5: Installation

    3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
  • Page 6 Removing the unit Trim Plate Installation: Push the trim plate against the chassis until it is fitted. You must do this before you install the front panel, otherwise it can't be attached. DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket.

  • Page 7: Detachable Control Panel (D.c.p .)

    4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). PANEL RELEASE BUTTON Attaching the DCP CAUTION DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.
  • Page 8 5. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE 20-PIN AUDIO/POWER HARNESS (See Figure 1) REAR LINE OUT GREY FRONT LINE OUT BLACK LEFT FRONT RIGHT FRONT WHITE-BLACK LF- GREY-BLACK RF- WHITE LF+ GREY RF+ RIGHT REAR LEFT REAR GREEN-BLACK LR- VIOLET-BLACK RR- VIOLET RR+ GREEN LR+...

  • Page 9: Basic Operations

    6. BASIC OPERATIONS 2) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 1) POWER ON/OFF BUTTON ( Press the POWER button on the front of the unit to turn on the unit. Long press the POWER button to turn Off the unit.

  • Page 10: Menu Operations

    7. MENU OPERATIONS To use this function keep press short AUDIO/MENU Button for few seconds, each time you press this button the mode will move and the functions will shown on the display, turn the encoder volume knob up/ down to set the desires functions ,the function states as following: BASS ( Bass level ) Turn the encoder volume knob to adjust the desired Bass level range from -10 to +10, the default is “0”.

  • Page 11: Radio Operations

    8. RADIO OPERATIONS 11) STATION PRESET BUTTONS (M1-M6) 1.Press these buttons briefly to recall the stored stations in the selected band. 2.Presetting stations manually, Press the BAND button to select the band for the station to be preset. Use Tuning Up/Down to tune in the stations to be preset. Press the Preset button at which you want to store the station for at least 2 second.
  • Page 12 9. CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) INTRO BUTTON (INTRO) During file play, press INTRO SCAN BUTTON (INTRO) to play the first 10 seconds to each file on the file.

  • Page 13: Usb Drive Operations

    PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 10. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not be P .1 compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver.

  • Page 14: Sd/Mmc Operations

    11. SD/MMC OPERATIONS 1.Press panel release button to release the front panel.(P .1) 2.The SD/MMC card slot is located on the unit as indicated in (P .2). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound is heard.(P .3) 4.Close the front panel.(P .4) P .2...
  • Page 15 12. MP3/WMA OPERATIONS(ENCODER VERSION) Notes : This unit support : MPEG1/2/2.5/ Layer 2/3 WMA Version 7/8/9 Sampling frequency - MPEG1 : 32/44.1/48 KHz - MPEG2 :16/22.05/24 KHz - MPEG2.5 : 8/11.025/12KHz - WMA : 22/32/44/48KHz Sampling But rate - MP3/WMA : 32~320Kbps &...
  • Page 16 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button Character A,B,C D,E,F G,H,I J,K,L...

  • Page 17: Remote Control

    13. REMOTE CONTROL OPERATIONS: Radio Mode 1. Power Power On/Off 2. Volume Up/Down Adjust Vol,Bas, Tre,Fad,Bal 3. ID3/DISP Display Clock 4.Stereo/Mono Stereo/FM Mono 5. Tuning Up/Down Tuning/Seek Up/Down 6. LOC Local/Distant 7. Scan Station Scan 8. Mute Mute Select Vol, Bas, Tre, Fad, Bal 9.

  • Page 18: Specifications

    14. SPECIFICATIONS CD PLAYER System Usable disc Sampling frequency No of quantization bits Frequency Number of channels S/N Ratio RADIO SECTION Frequency Range Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio AM/MW Frequency Range Intermediate Frequency Usable Sensitivity S/N Ratio GENERAL Power Supply Polarity...

  • Page 19: Troubleshooting

    15. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause No power The car ignition is not on. The fuse is blown. Disc cannot be loaded Presence of CD disc inside or ejected...
