Minimum gauge for Cord sets
Total length of Cord in Feet
Volts
120 V
25 (7.6)
240 V
50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
More
not
American Wire gauge
Than
More
Than
0
6
18
6
10
18
10
12
16
12
16
14
The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V ......................... volts
Hz ....................... hertz
min ..................... minutes
or DC ...... direct current
...................... Class I Construction
(grounded)
.../min .............. per minute
BPM .................... beats per minute
IPM ..................... impacts per minute
RPM .................... revolutions per
minute
sfpm ................... surface feet per
minute
SPM .................... strokes per minute
OPM .................... oscillations per
minute
A ......................... amperes
W ........................ watts
or AC ........... alternating current
or AC/DC .... alternating or
direct current
...................... Class II
Construction
(double insulated)
n o ....................... no load speed
n ......................... rated speed
...................... earthing terminal
..................... safety alert symbol
..................... visible radiation
..................... avoid staring at
light
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
COMPONENTS (FIG. A)
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
4
(meters)
50 (15.2) 100 (30.5) 150 (45.7)
16
16
14
16
14
12
16
14
12
12
Not Recommended
..................... wear respiratory
protection
..................... wear eye
protection
..................... wear hearing
protection
..................... read all
documentation
../min or ..min
-1
. Revolutions or
Reciprocations per
minute
2
.................. two phase
alternating current
2N
............... two phase
alternating current
with neutral
3
.................. three phase
alternating current
3N
............... three phase
alternating current
with neutral
.................. rated current of the
x
appropriate fuse-
link in amperes
............ time-log miniature
A
fuse-link where X
is the symbol for
the time/current
characteristic, as
given in
IEC 60127-3
IPXX .................... IP symbol
of power and overheating. These tools are factory tested; if
this tool does not operate, check power supply.
Intended Use
This drill is designed for household applications.
DO nOT use under wet conditions or in presence of
flammable liquids or gases.
DO nOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can cause injury.

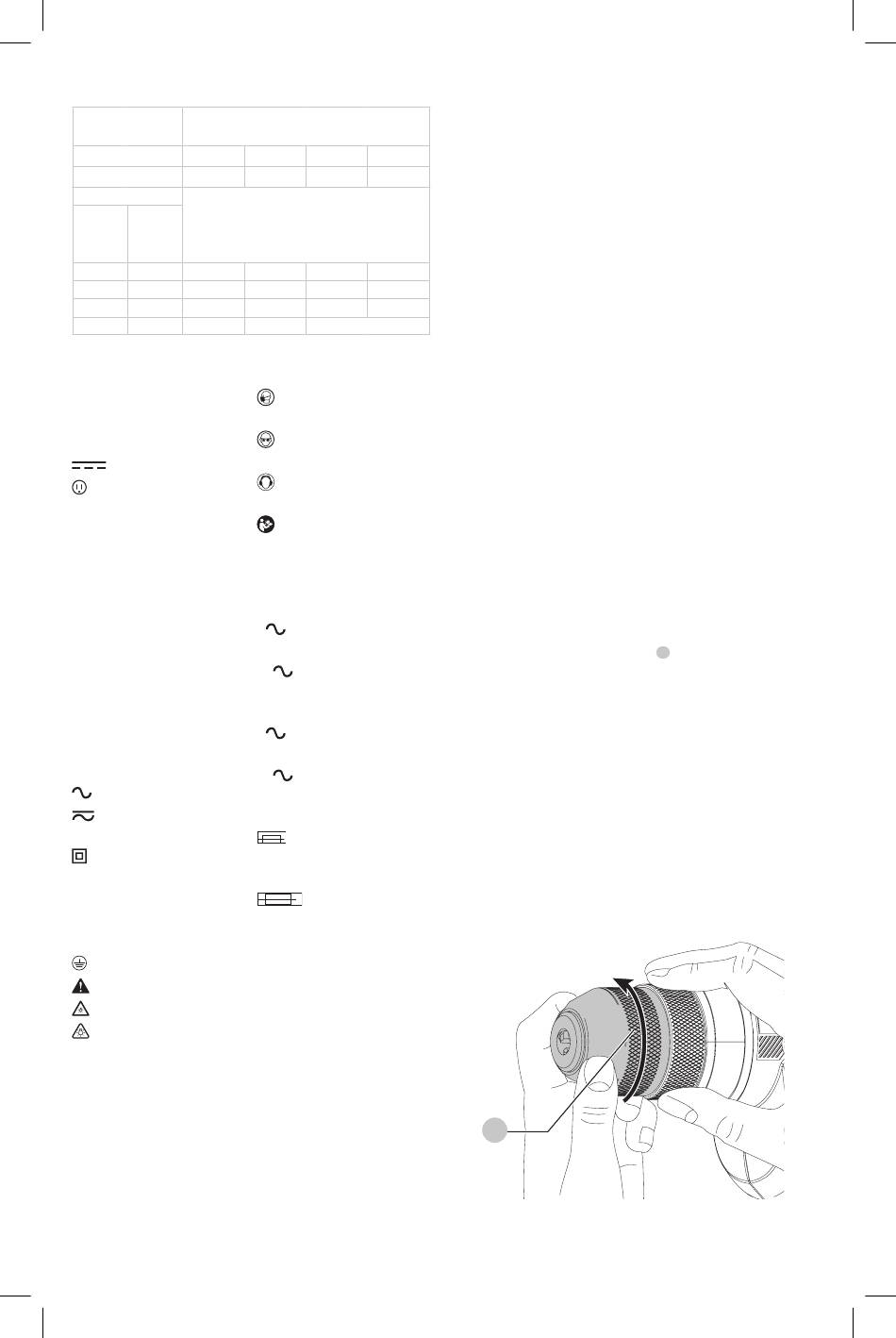

Inserting a Drill Bit or Other Accessory
(Fig. B)
WARNING: Do not attempt to tighten drill
bits (or any other accessory) by gripping the
front part of the chuck and turning the tool on.
Damage to the chuck and personal injury may occur
when changing accessories.
WARNING: Always ensure the bit is secure before
starting the tool. A loose bit may eject from tool
causing possible personal injury.
Your tool features a keyless chuck
convenience. To insert a drill bit or other accessory, follow
the steps listed below.
1. Grasp the rear half of the keyless chuck with one
hand and use your other hand to rotate the front half
counterclockwise, as shown in Figure B. Rotate far
enough so that the keyless chuck opens sufficiently to
accept the desired accessory.
2. Insert the bit or other accessory about 3/4" (19 mm)
into the keyless chuck and tighten securely by holding
the rear half of the keyless chuck and rotating the front
portion in the clockwise direction.
3. To release the accessory, repeat Step 1 listed above.
Fig. B
4
